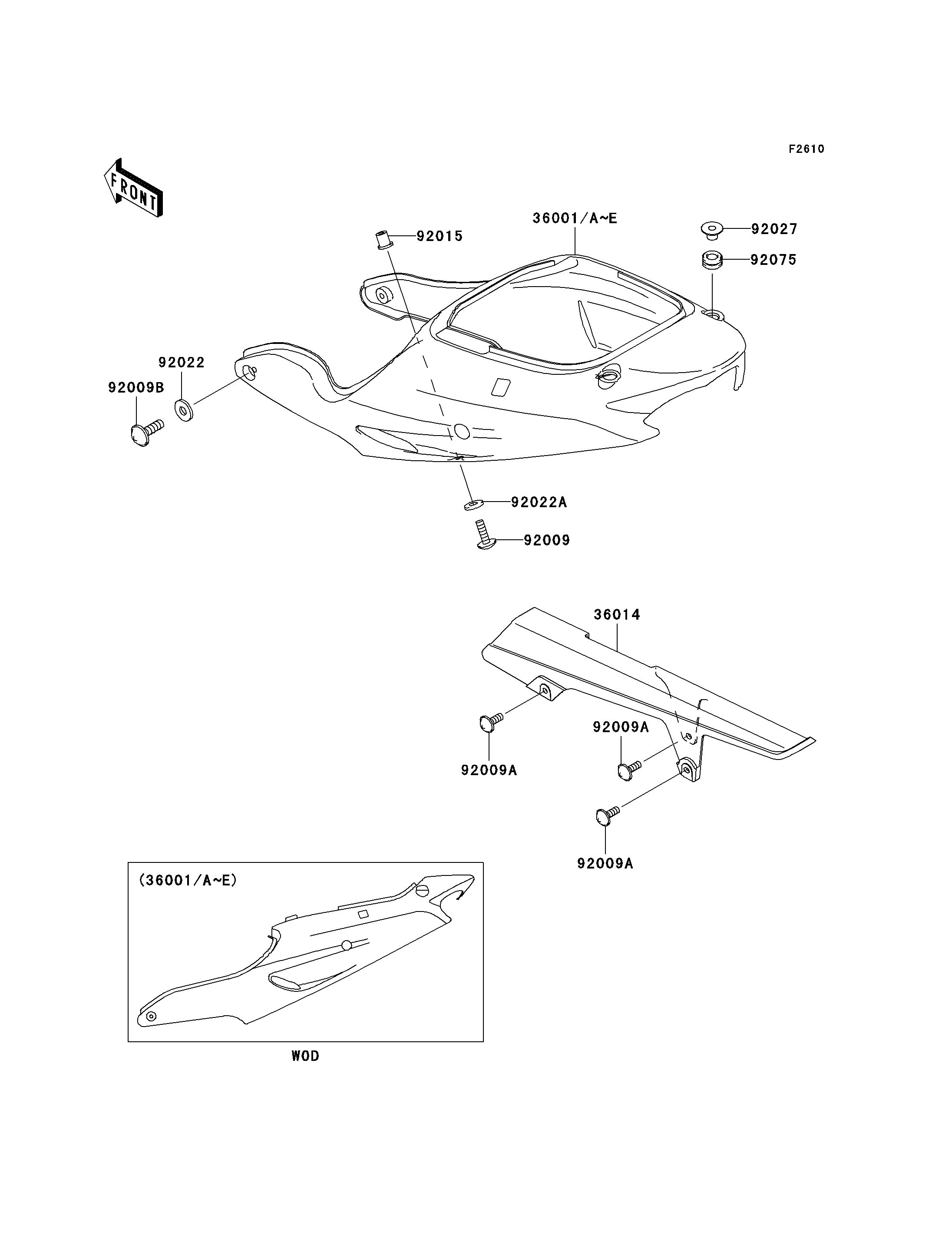

1999 Ninja® ZX-9R - Side Covers/Chain Cover

36001D
36001E
36014
92009
92009A
92009A
92009A
92009B
92015
92022
92022A
92027
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,C.L.BLUE 36001D 36001-1631-E1 1
COVER-SIDE,L.GREEN 36001E 36001-1631-7F 1
CASE-CHAIN 36014 36014-1222 1
SCREW,5X18 92009 92009-1655 2
SCREW,6X10 92009A 92009-1661 3
SCREW,6X14 92009B 92009-1662 2
NUT,WELL,5MM 92015 92015-1757 2
WASHER,6.5X16X1 92022 92022-1143 2
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 2
COLLAR 92027 92027-4015 2
DAMPER 92075 92075-1898 2
COVER-SIDE,C.P.RED 36001C 36001-1631-A5 1 CN
