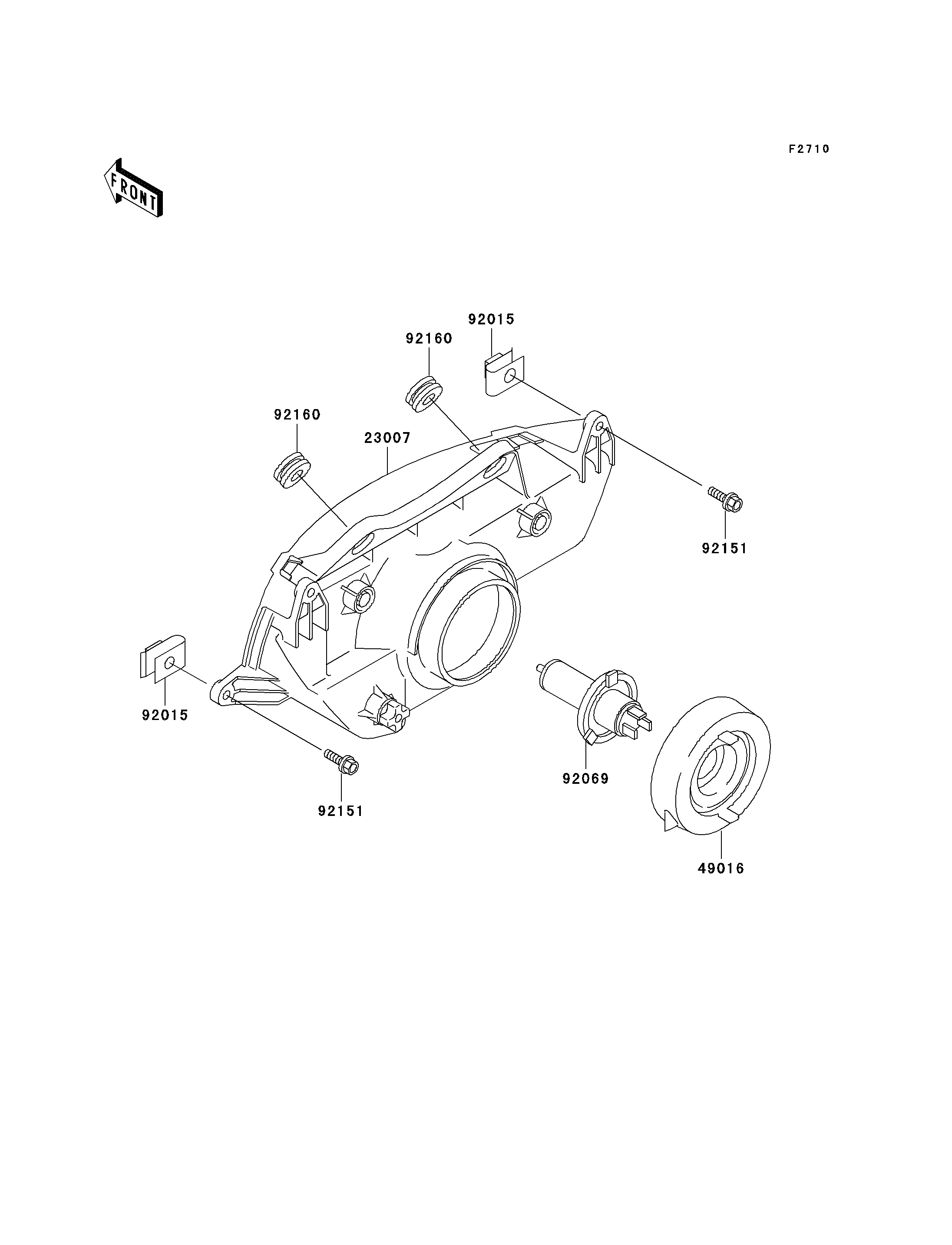

23007
49016
92015
92015
92069
92151
92151
92160
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP,HEAD LAMP 23007 23007-1347 1
COVER-SEAL,HEAD LAMP 49016 49016-1193 1
NUT,6MM 92015 92015-1094 4
BULB,12V 60/55W,H4 92069 92069-1002 1
BOLT,6X25 92151 92151-1241 4
DAMPER 92160 92160-1007 2
