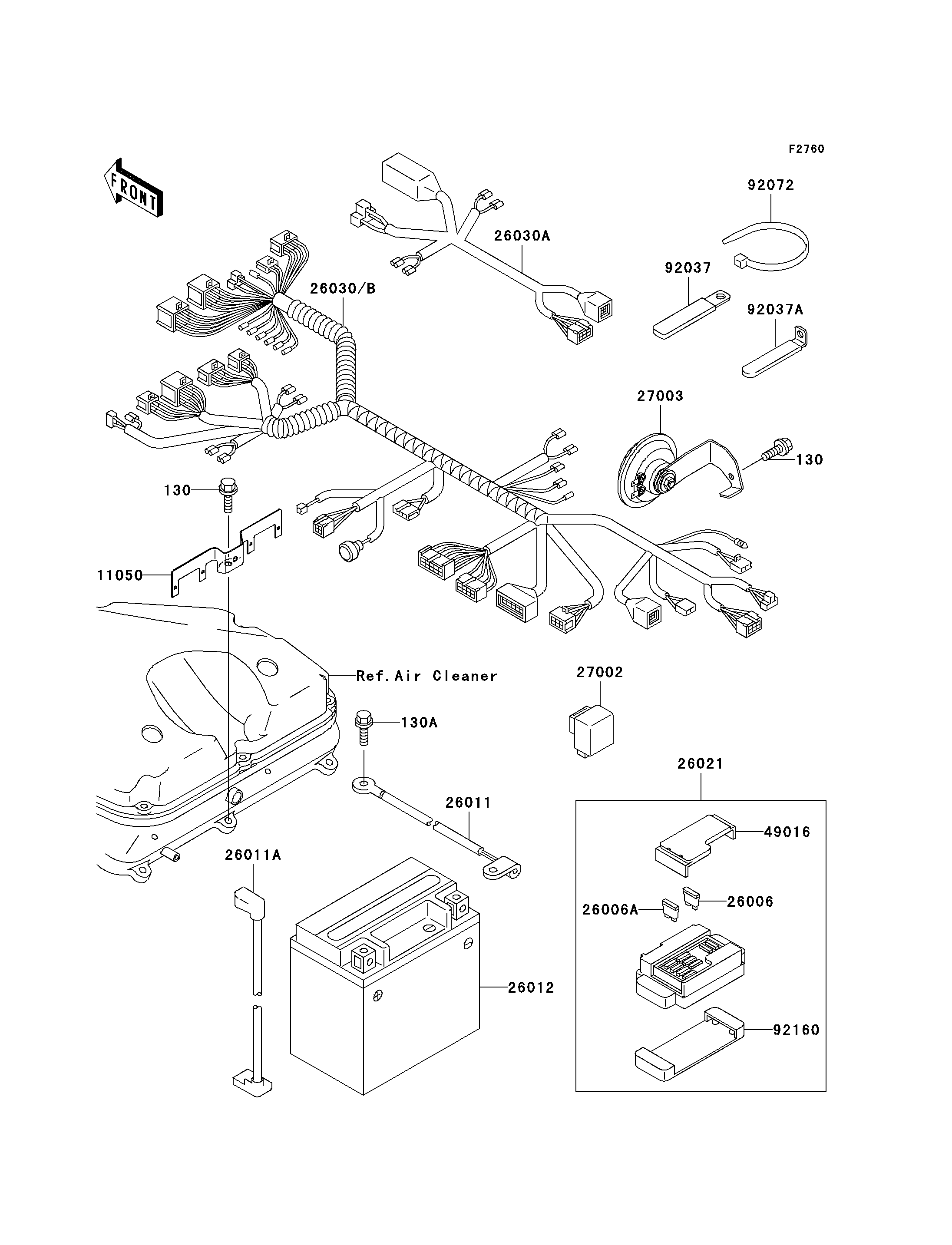

1999 Ninja® ZX™-9R - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
11050
26006
26006A
26011
26011A
26012
26021
26030A
27002
27003
49016
92037
92037A
92072
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED,6X10 130A 130V0610 1
BRACKET,HARNESS COUPLER 11050 11050-1791 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(+) 26011 26011-1690 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1691 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-1326 1
JUNCTION BOX 26021 26021-1096 1
HARNESS,FR 26030A 26030-1532 1
RELAY-ASSY 27002 27002-1101 1
HORN 27003 27003-1407 1
COVER-SEAL,FUSE 49016 49016-1177 1
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 3
CLAMP 92037A 92037-1608 2
BAND,L=185 92072 92072-1195 8
DAMPER,JUNCTION BOX 92160 92160-1650 1
HARNESS,MAIN 26030 26030-1531 1 CNUS
HARNESS,MAIN 26030B 26030-1586 1 CA
