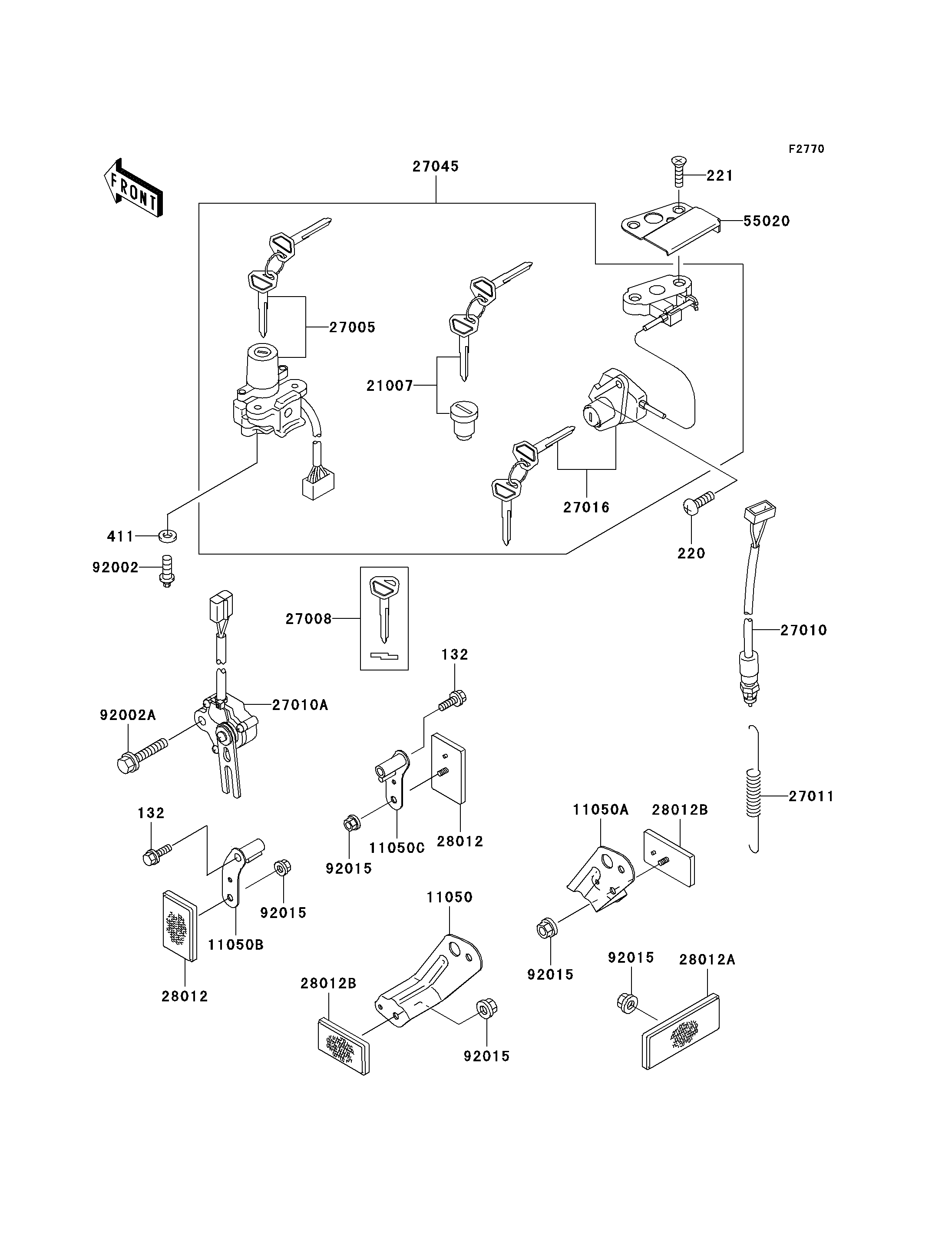

1999 Ninja® ZX™-9R - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
132
132
220
221
411
11050
11050A
11050B
11050C
21007
27005
27008
27010
27010A
27011
27016
27045
28012
28012
28012A
28012B
28012B
55020
92002
92002A
92015
92015
92015
92015
92015
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0635 2
SCREW-PAN-CROS,6X12 220 220C0612 2
SCREW-CSK-CROS,6X28 221 221B0628 2
WASHER-PLAIN,6MM 411 411E0600 2
BRACKET,REFLECTOR,RR,LH 11050 11050-1483 1
BRACKET,REFLECTOR,RR,RH 11050A 11050-1484 1
BRACKET,REFLECTOR,FR,LH 11050B 11050-1849 1
BRACKET,REFLECTOR,FR,RH 11050C 11050-1850 1
ROTOR,LOCK,TANK CAP 21007 21007-5035 1
SWITCH-ASSY-IGNITION 27005 27005-1213 1
KEY-LOCK,BLANK 27008 27008-1170 1 (OPTION)
SWITCH,BRAKE LAMP 27010 27010-1152 1
SWITCH,SIDE STAND 27010A 27010-1344 1
SPRING,BRAKE LAMP SWITCH 27011 27011-017 1
LOCK-ASSY,SEAT 27016 27016-5241 1
SWITCH-ASSY 27045 27045-5067 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX,RR 28012B 28012-1078 2
GUARD,SEAT LOCK 55020 55020-1483 1
BOLT,TORX,6X16 92002 92002-1333 2
BOLT,6X25 92002A 92002-1582 1
NUT,FLANGED,5MM 92015 92015-1259 5
