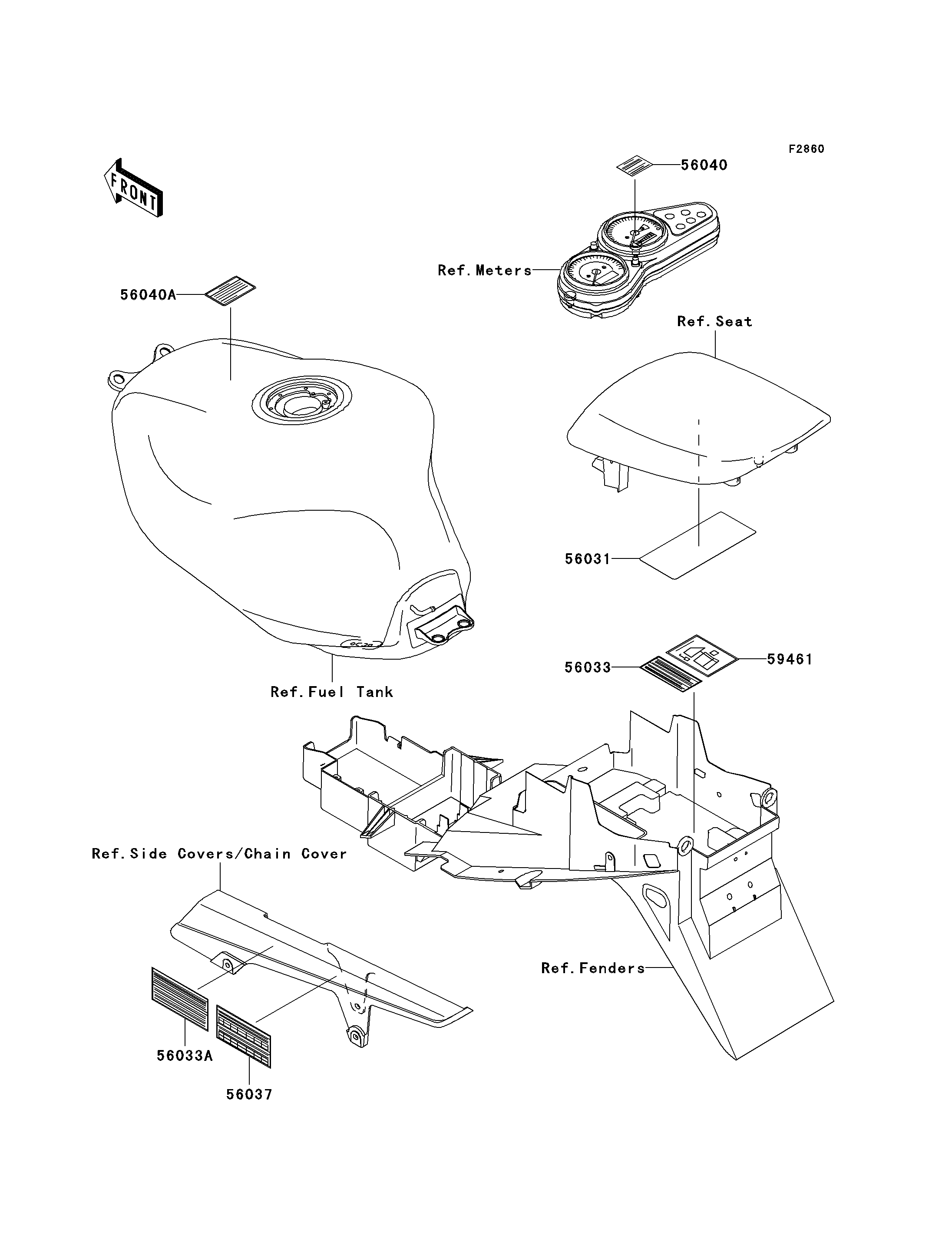

56031
56033
56033A
56037
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,DAILY SAFETY 56031 56031-1914 1
LABEL-MANUAL,OIL&OIL FILTER 56033 56033-1109 1
LABEL-MANUAL,CHAIN 56033A 56033-1110 1
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1797 1
LABEL-WARNING,BREAK IN CAUTION 56040 56040-1007 1 CAUS
LABEL-WARNING,EVAPO 56040A 56040-1121 1 CA
LABEL-CERTIFICATION,EVAPO ROUT 59461 59461-1491 1 CA
