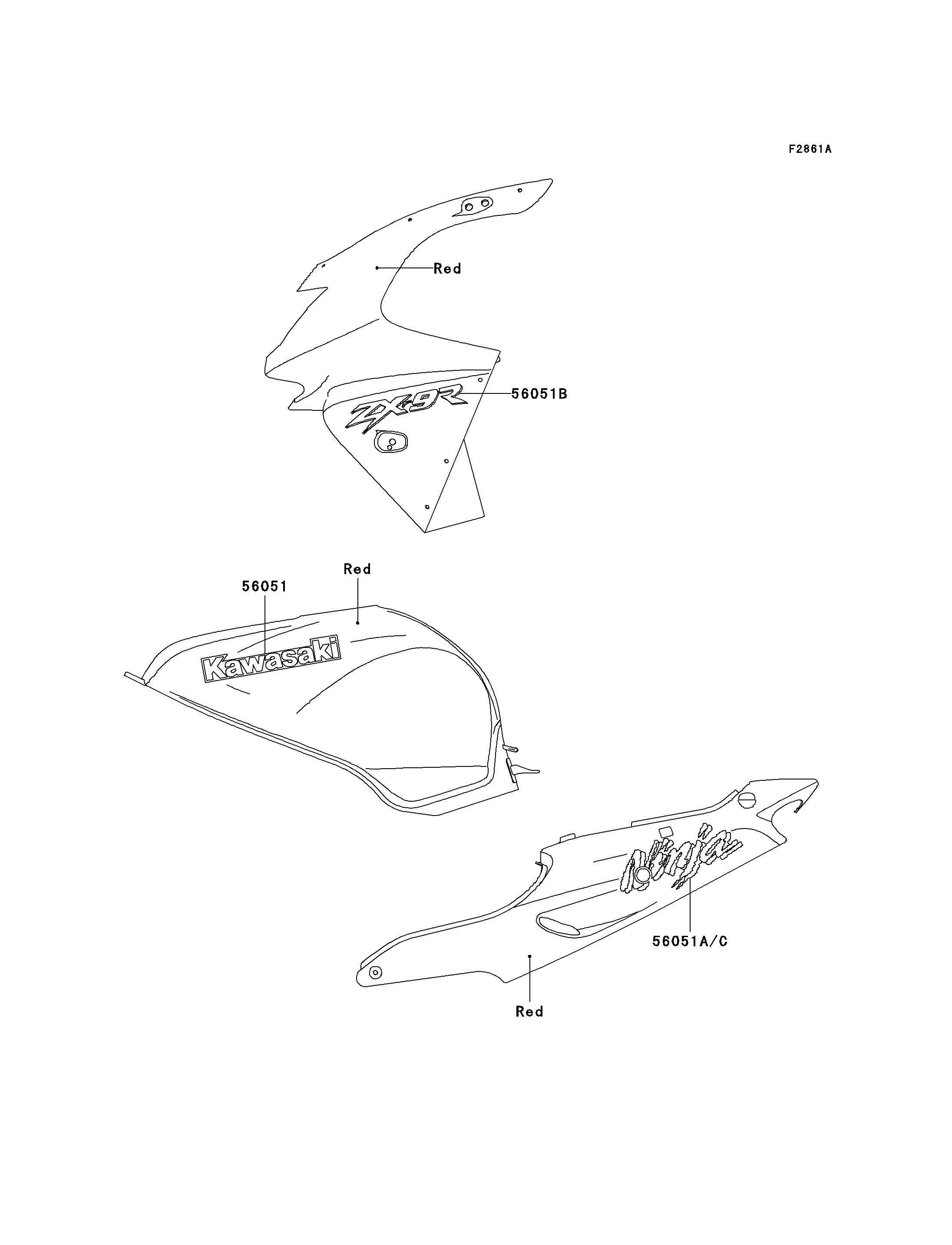

56051
56051A
56051B
56051C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,KAWASAKI 56051 56051-1754 2
MARK,SEAT COVER,RH,NINJA 56051A 56051-1755 1
MARK,UPP COWLING,ZX-9R 56051B 56051-1756 2
MARK,SEAT COVER,LH,NINJA 56051C 56051-1772 1
