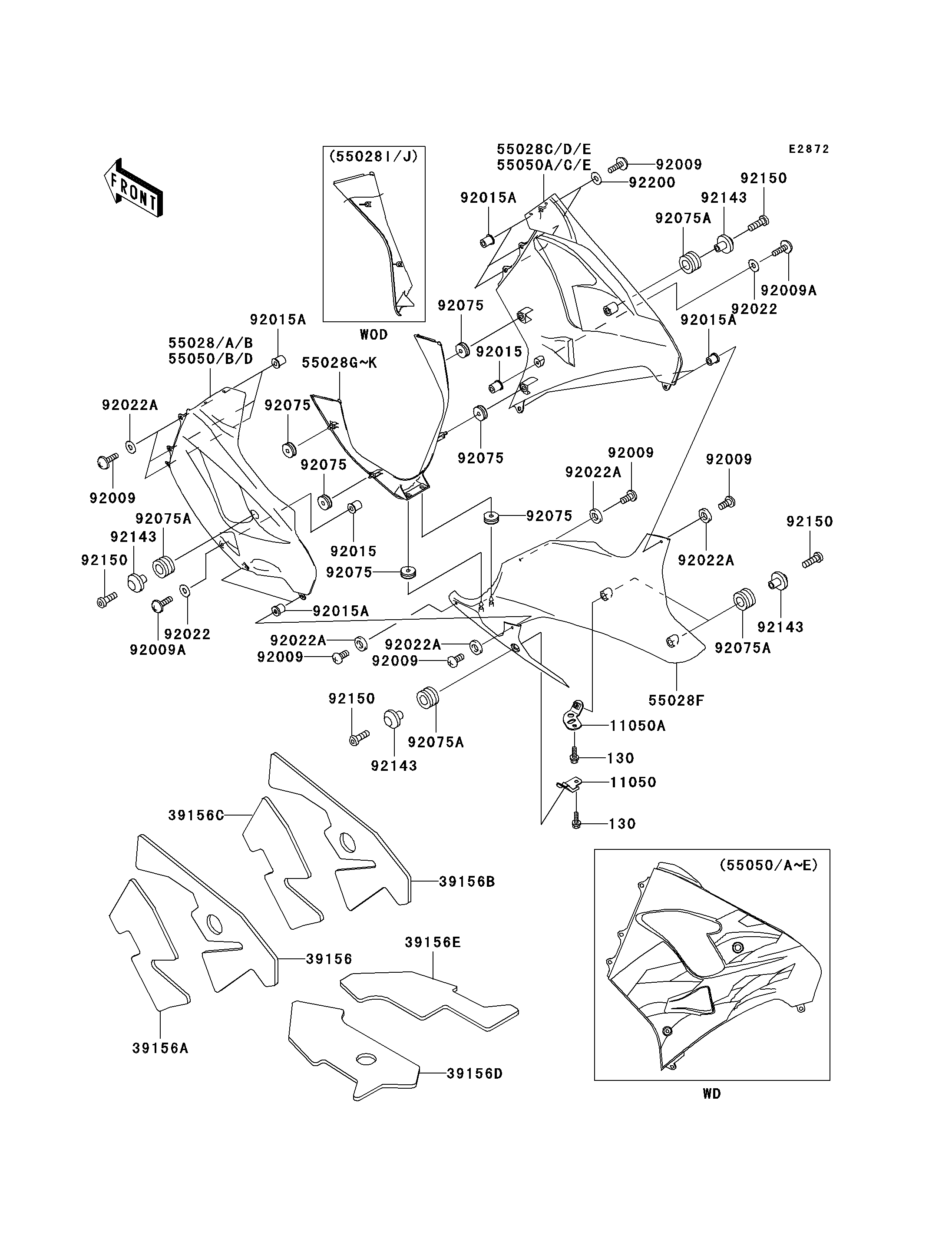

1999 Ninja® ZX™-9R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11050
11050
11050A
11050A
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
55028F
55028F
55028J
55028J
55050
55050
55050A
55050A
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
130
130
130
130
92009A
92009A
92009A
92009A
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR COWLING,LH 11050 11050-1456 1
BRACKET,LWR COWLING,RH 11050A 11050-1778 1
PAD,SIDE COWLING,LH,UPP 39156 39156-1603 1
PAD,SIDE COWLING,LH,LWR 39156A 39156-1604 1
PAD,SIDE COWLING,RH,UPP 39156B 39156-1605 1
PAD,SIDE COWLING,RH,LWR 39156C 39156-1606 1
PAD,LWR COWLING,LH 39156D 39156-1607 1
PAD,LWR COWLING,RH 39156E 39156-1608 1
COWLING,LWR,M.F.C.GRAY 55028F 55028-1362-E4 1
COWLING,FR,M.VIOLET ROYAL 55028J 55028-1363-JW 1
COWLING-ASSY.,SIDE,LH,GRN/VIO 55050 55050-5246-G9 1
COWLING-ASSY.,SIDE,RH,GRN/VIO 55050A 55050-5247-G9 1
SCREW,5X16,BLACK 92009 92009-1654 10
BOLT-FLANGED 130 130J0612 2
SCREW,6X22 92009A 92009-1664 2
NUT 92015 92015-1700 2
NUT,WELL,5MM 92015A 92015-1757 10
WASHER,6.5X16X1 92022 92022-1143 2
WASHER,NYLON,5.3X11.5X1.5 92022A 92022-1521 7
DAMPER 92075 92075-1067 6
DAMPER 92075A 92075-1634 5
COLLAR,BLACK 92143 92143-1226 5
BOLT,SOCKET,6X18 92150 92150-1553 5
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 3
COWLING,SIDE,LH,C.L.BLUE 55028A 55028-1360-E1 1 CAUS
COWLING,SIDE,RH,C.L.BLUE 55028D 55028-1361-E1 1 CAUS
COWLING,FR,C.L.BLUE 55028H 55028-1363-E1 1 CAUS
COWLING,FR,EBONY 55028I 55028-1363-H8 1 CN
COWLING-ASSY.,SIDE,LH,EBO/RED 55050B 55050-5249-2N 1 CN
COWLING-ASSY.,SIDE,RH,EBO/RED 55050C 55050-5250-2N 1 CN
COWLING-ASSY.,SIDE,LH,VIO/BLU 55050D 55050-5251-4C 1 CN
COWLING-ASSY.,SIDE,RH,VIO/BLU 55050E 55050-5252-4C 1 CN
