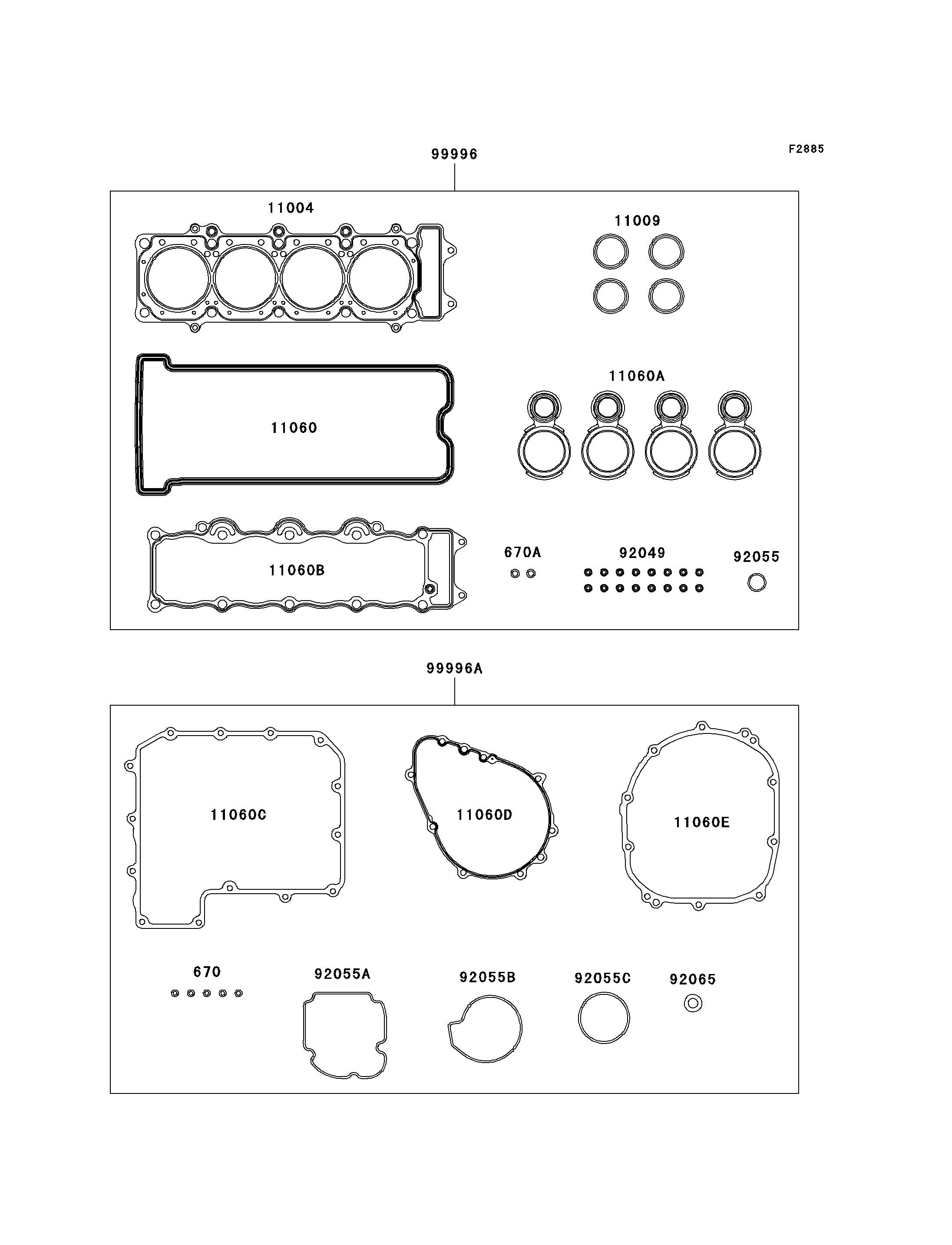

Parts Diagrams |
670
670A
11004
11009
11060
11060A
11060B
11060C
11060D
11060E
92049
92055
92055A
92055B
92055C
92065
99996
99996A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
O RING | 670 | 670D1505 | AR | ||
O RING,7MM | 670A | 670D1507 | AR | ||
GASKET-HEAD | 11004 | 11004-1327 | AR | ||
GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1856 | AR | ||
GASKET,HEAD COVER | 11060 | 11060-1816 | AR | ||
GASKET,SPARK PLUG | 11060A | 11060-1817 | AR | ||
GASKET,CYLINDER BASE | 11060B | 11060-1818 | AR | ||
GASKET,OIL PAN | 11060C | 11060-1819 | AR | ||
GASKET,GENERATOR COVER | 11060D | 11060-1854 | AR | ||
GASKET,CLUTCH COVER | 11060E | 11060-1855 | AR | ||
SEAL-OIL | 92049 | 92049-1349 | AR | ||
RING-O | 92055 | 92055-086 | AR | ||
RING-O,PULSE COVER | 92055A | 92055-1570 | AR | ||
RING-O,WATER PUMP COVER | 92055B | 92055-1571 | AR | ||
RING-O | 92055C | 92055-3018 | AR | ||
GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | AR | ||
KIT,GASKET TOP END,ZX900C | 99996 | 99996-1276 | AR | ||
KIT,GASKET BOTTOM END,ZX900C | 99996A | 99996-1277 | AR |
O RING | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
O RING,7MM | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET-HEAD | |
REF # | 11004 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE HOLDER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,HEAD COVER | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,SPARK PLUG | |
REF # | 11060A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,CYLINDER BASE | |
REF # | 11060B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,OIL PAN | |
REF # | 11060C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,GENERATOR COVER | |
REF # | 11060D |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,CLUTCH COVER | |
REF # | 11060E |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
RING-O,PULSE COVER | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
RING-O,WATER PUMP COVER | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055C |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
GASKET,12X22X2,DRAIN PLUG | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
KIT,GASKET TOP END,ZX900C | |
REF # | 99996 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
KIT,GASKET BOTTOM END,ZX900C | |
REF # | 99996A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
