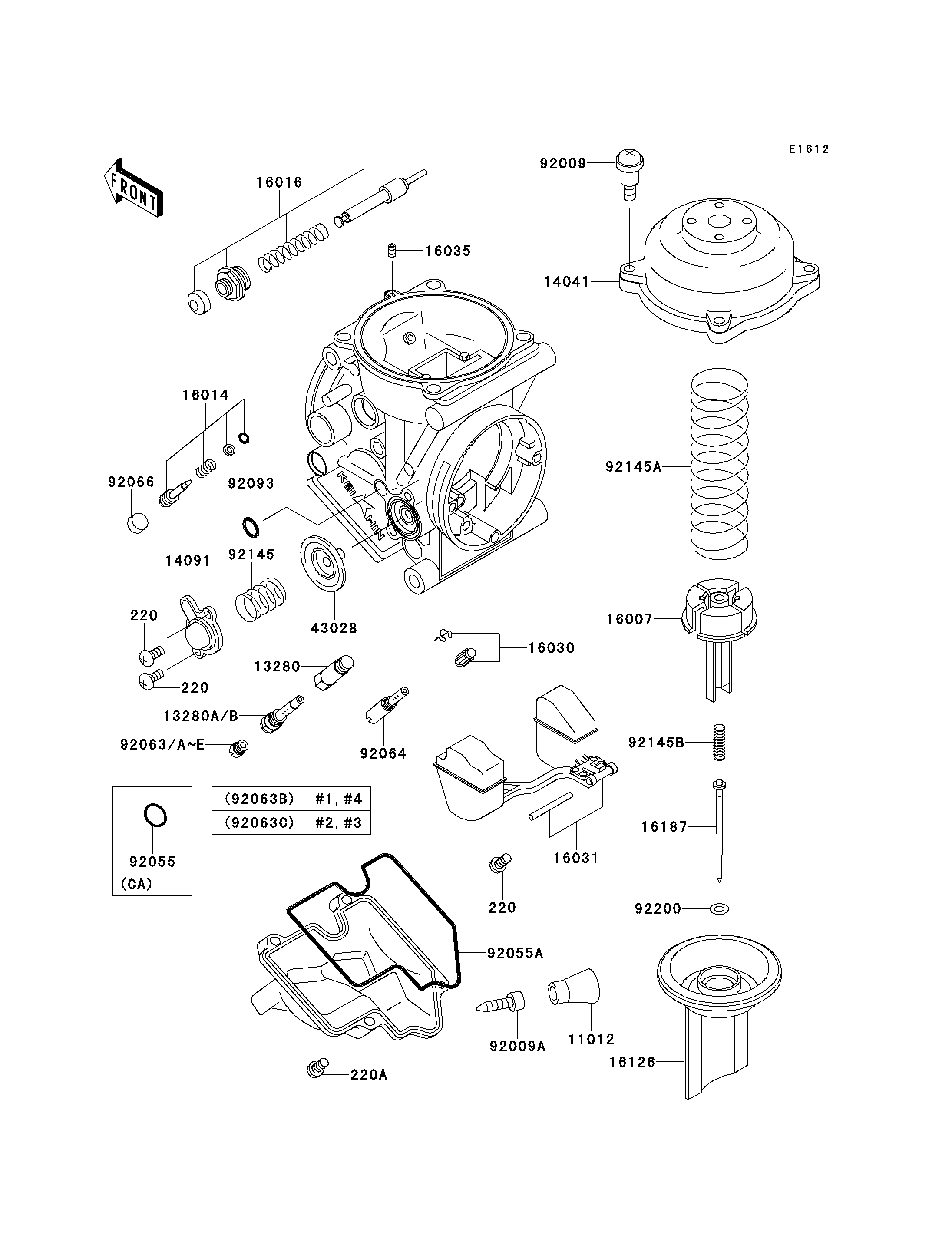

2000 Ninja® ZX™-9R - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
220
220
220A
11012
13280
14041
14091
16007
16014
16016
16030
16031
16035
16126
16187
43028
92009
92009A
92055A
92063
92063A
92063B
92063C
92063D
92063E
92064
92066
92093
92145
92145A
92145B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220D0408 12
SCREW-PAN-CROS 220A 220D0414 16
CAP,DRAIN SCREW 11012 11012-1675 4
HOLDER,JET 13280 13280-1096 4
COVER-COMP,MIXING TOP 14041 14041-1138 4
COVER,AIR CUT VALVE 14091 14091-1246 4
SEAT-SPRING,VACUUM VALVE 16007 16007-1206 4
SCREW-PILOT AIR 16014 16014-1105 4
PLUNGER 16016 16016-1114 4
VALVE-FLOAT 16030 16030-1094 4
FLOAT 16031 16031-1097 4
JET-AIR,LEAK 16035 16035-1055 4
VALVE,VACUUM 16126 16126-1392 4
NEEDLE-JET,N9BB 16187 16187-1131 4
DIAPHRAGM,AIR CUT VALVE 43028 43028-1085 4
SCREW,4X4.4 92009 92009-1549 15
SCREW,DRAIN,M6X0.75 92009A 92009-1551 4
RING-O,FLOAT CHAMBER 92055A 92055-1589 4
JET-MAIN,#155 92063 92063-1332 AR (OPTION)
JET-MAIN,#158 92063A 92063-1344 AR (OPTION)
JET-MAIN,#160 92063B 92063-1345 2
JET-MAIN,#165 92063C 92063-1347 2
JET-MAIN,#170 92063D 92063-1386 AR (OPTION)
JET-MAIN,#175 92063E 92063-1387 AR (OPTION)
JET-PILOT,#38 92064 92064-1210 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SEAL,"U"RING 92093 92093-1046 4
SPRING,AIR CUT VALVE 92145 92145-1149 4
SPRING,VACUUM VALVE 92145A 92145-1337 4
SPRING,NEEDLE JET 92145B 92145-1338 4
WASHER,NEEDLE JET 92200 92200-1525 4
HOLDER,JET NEEDLE 13280A 13280-1194 4 CNUS
HOLDER,JET NEEDLE 13280B 13280-1200 4 CA
RING-O 92055 92055-1004 4 CA
