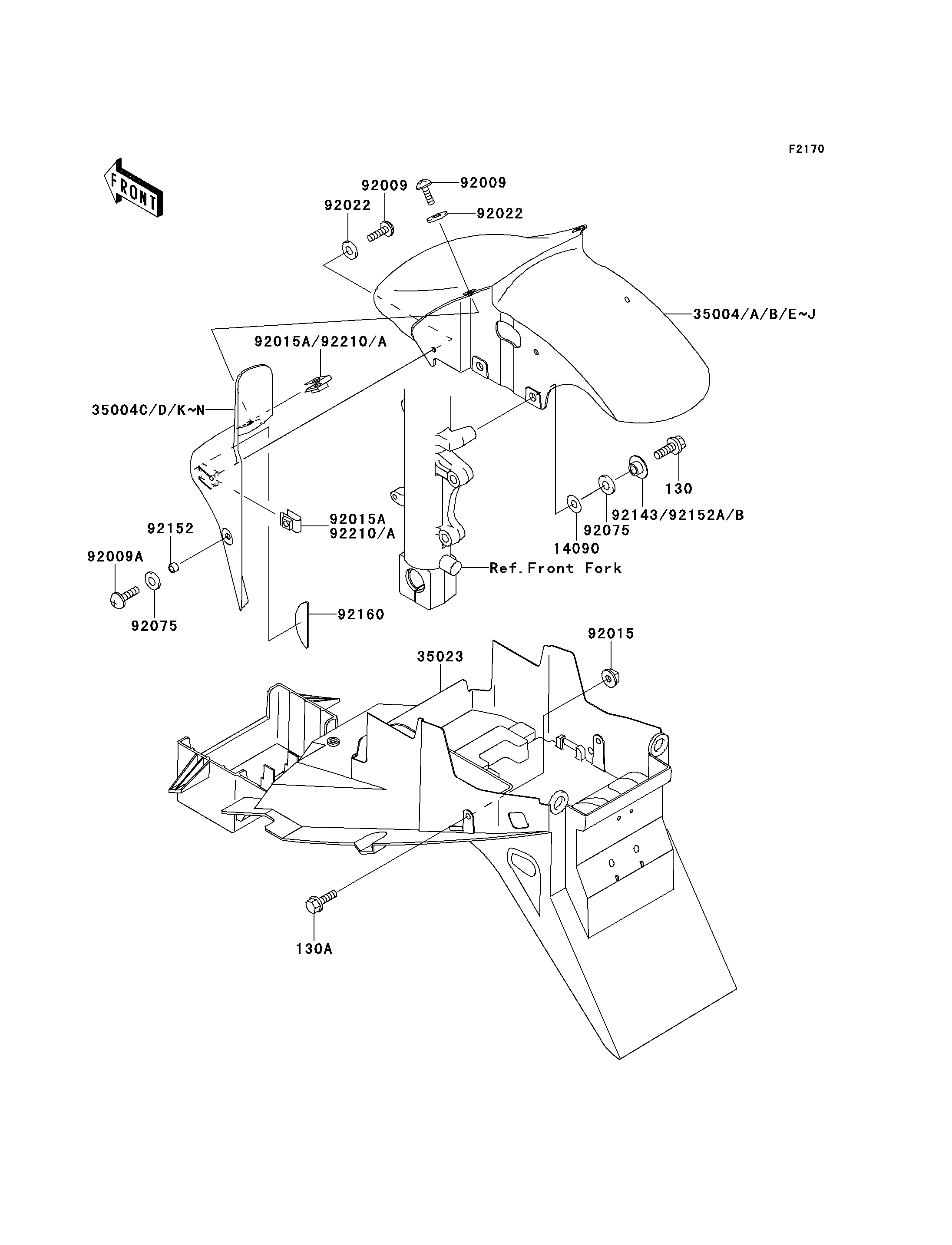

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14090
14090
35004A
35004A
35004B
35004B
35004C
35004C
35004D
35004D
35004I
35004I
35004J
35004J
35004L
35004L
35004N
35004N
35023
35023
92009
92009
92009
92009
92009A
92009A
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92075
92075
92075
92075
130
130
130A
130A
92143
92143
92152
92152
92152B
92152B
92160
92160
92210A
92210A
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER | 14090 | 14090-1505 | 4 | ||
| FENDER-FRONT,CNT,BLACK MICA | 35004A | 35004-1415-20 | 1 | ( - JKAZX2E1 YA005847) | |
| FENDER-FRONT,CNT,L.GREEN | 35004B | 35004-1415-7F | 1 | ( - JKAZX2E1 YA005847) | |
| FENDER-FRONT,SIDE,LH,GRAY | 35004C | 35004-1417-3L | 1 | ( - JKAZX2E1 YA005847) | |
| FENDER-FRONT,SIDE,RH,GRAY | 35004D | 35004-1418-3L | 1 | ( - JKAZX2E1 YA005847) | |
| FENDER-FRONT,CNT,BLACK MICA | 35004I | 35004-1421-20 | 1 | (JKAZX2E1 YA005848 - ) | |
| FENDER-FRONT,CNT,L.GREEN | 35004J | 35004-1421-7F | 1 | (JKAZX2E1 YA005848 - ) | |
| FENDER-FRONT,SIDE,LH,C.GRAY | 35004L | 35004-1422-3L | 1 | (JKAZX2E1 YA005848 - ) | |
| FENDER-FRONT,SIDE,RH,C.GRAY | 35004N | 35004-1423-3L | 1 | (JKAZX2E1 YA005848 - ) | |
| FENDER-REAR | 35023 | 35023-1516 | 1 | ||
| SCREW,5X16,BLACK | 92009 | 92009-1654 | 4 | ||
| SCREW,6X14 | 92009A | 92009-1662 | 2 | ||
| NUT,6MM | 92015 | 92015-1321 | 2 | ||
| NUT,5MM | 92015A | 92015-1573 | 4 | ( - JKAZX2E1 YA005847) | |
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 4 | ||
| DAMPER | 92075 | 92075-1564 | 6 | ||
| BOLT-FLANGED,6X16 | 130 | 130H0616 | 4 | ||
| BOLT-FLANGED,6X35 | 130A | 130J0635 | 2 | ||
| COLLAR,L=7.4 | 92143 | 92143-1019 | 4 | ( - JKAZX2E1 YA005847) | |
| COLLAR,6.8X10X6 | 92152 | 92152-1256 | 2 | ||
| COLLAR | 92152B | 92152-1269 | 4 | (JKAZX2E1 YA005848 - ) | |
| DAMPER | 92160 | 92160-1961 | 2 | ||
| NUT,5MM | 92210A | 92210-1266 | 4 | (JKAZX2E1 YA005848 - ) | |
| FENDER-FRONT,CNT,F.RED | 35004 | 35004-1415-B1 | 1 | CN | ( - JKAZX2E1 YA005847) |
| FENDER-FRONT,CNT,F.RED | 35004H | 35004-1421-B1 | 1 | CN | (JKAZX2E1 YA005848 - ) |
| COVER | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,CNT,BLACK MICA | |
| REF # | 35004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKAZX2E1 YA005847) |
| FENDER-FRONT,CNT,L.GREEN | |
| REF # | 35004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKAZX2E1 YA005847) |
| FENDER-FRONT,SIDE,LH,GRAY | |
| REF # | 35004C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKAZX2E1 YA005847) |
| FENDER-FRONT,SIDE,RH,GRAY | |
| REF # | 35004D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKAZX2E1 YA005847) |
| FENDER-FRONT,CNT,BLACK MICA | |
| REF # | 35004I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAZX2E1 YA005848 - ) |
| FENDER-FRONT,CNT,L.GREEN | |
| REF # | 35004J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAZX2E1 YA005848 - ) |
| FENDER-FRONT,SIDE,LH,C.GRAY | |
| REF # | 35004L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAZX2E1 YA005848 - ) |
| FENDER-FRONT,SIDE,RH,C.GRAY | |
| REF # | 35004N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKAZX2E1 YA005848 - ) |
| FENDER-REAR | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | ( - JKAZX2E1 YA005847) |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X35 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=7.4 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | ( - JKAZX2E1 YA005847) |
| COLLAR,6.8X10X6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (JKAZX2E1 YA005848 - ) |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (JKAZX2E1 YA005848 - ) |
| FENDER-FRONT,CNT,F.RED | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | ( - JKAZX2E1 YA005847) |
| FENDER-FRONT,CNT,F.RED | |
| REF # | 35004H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | (JKAZX2E1 YA005848 - ) |
