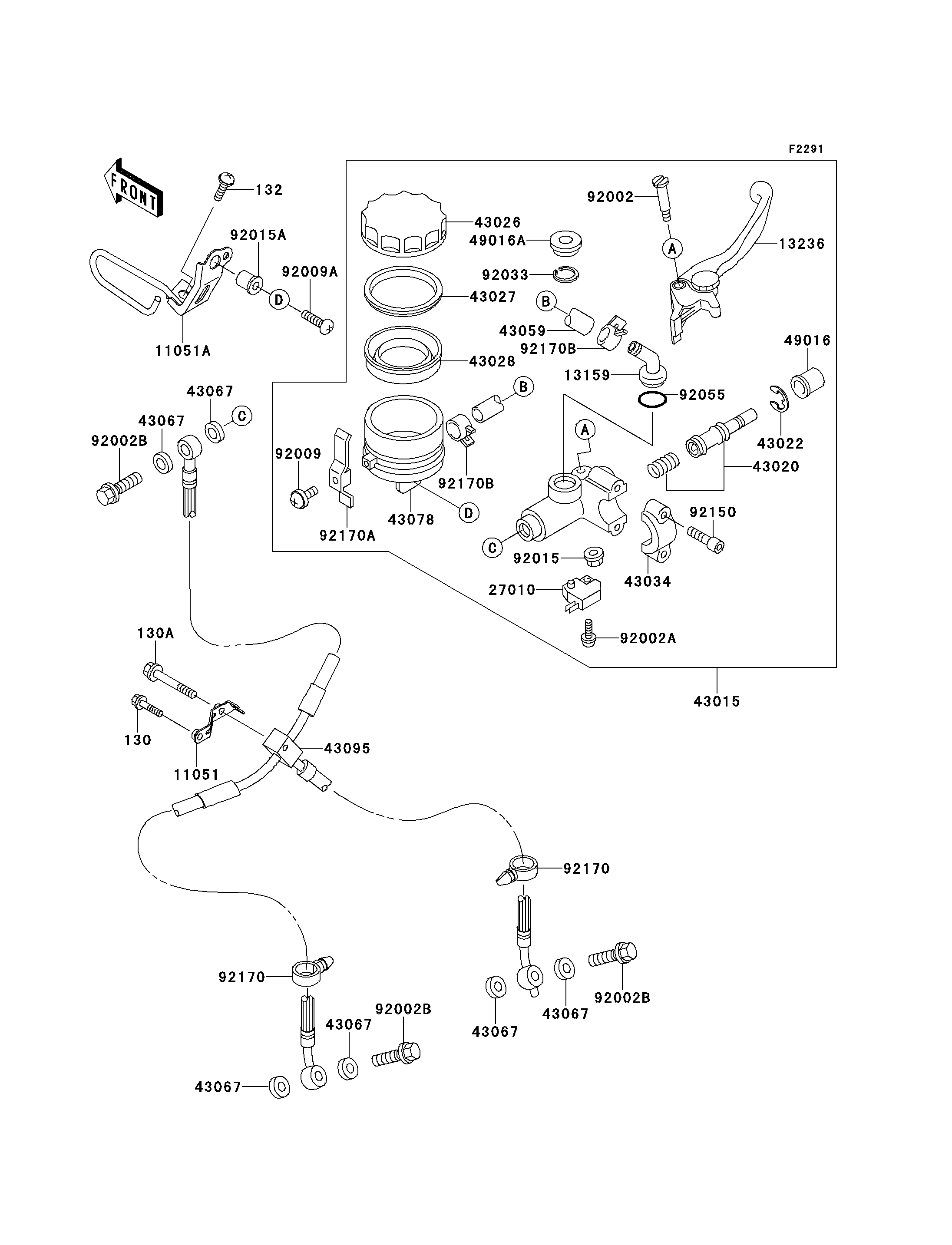

2000 Ninja® ZX™-9R - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
11051
11051A
13159
13236
27010
43015
43020
43022
43026
43027
43028
43034
43059
43067
43067
43067
43067
43067
43067
43078
43095
49016
49016A
92002
92002A
92002B
92002B
92002B
92009
92009A
92015
92015A
92033
92055
92150
92170
92170
92170A
92170B
92170B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
BOLT-FLANGED,6X35 130A 130J0635 1
BOLT-FLANGED-SMALL,6X10 132 132J0610 1
BRACKET,BRAKE HOSE 11051 11051-1806 1
BRACKET,RESERVOIR TANK 11051A 11051-1816 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-1326 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1633 1
PISTON-COMP-BRAKE,FR 43020 43020-1054 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR MASTER CYLINDER 43059 43059-1696 1
WASHER,10.5X15X1.5 43067 43067-001 6
RESERVOIR 43078 43078-1099 1
HOSE-BRAKE,FR 43095 43095-1162 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
COVER-SEAL 49016A 49016-1147 1
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
BOLT,OIL,L=23 92002B 92002-1888 3
SCREW 92009 92009-1570 1
SCREW,5X18 92009A 92009-1655 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,WELL,5MM 92015A 92015-1757 1
RING-SNAP,20.5MM 92033 92033-1186 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT 92150 92150-1328 2
CLAMP 92170 92170-1067 2
CLAMP 92170A 92170-1090 1
CLAMP,HOSE 92170B 92170-1091 2
