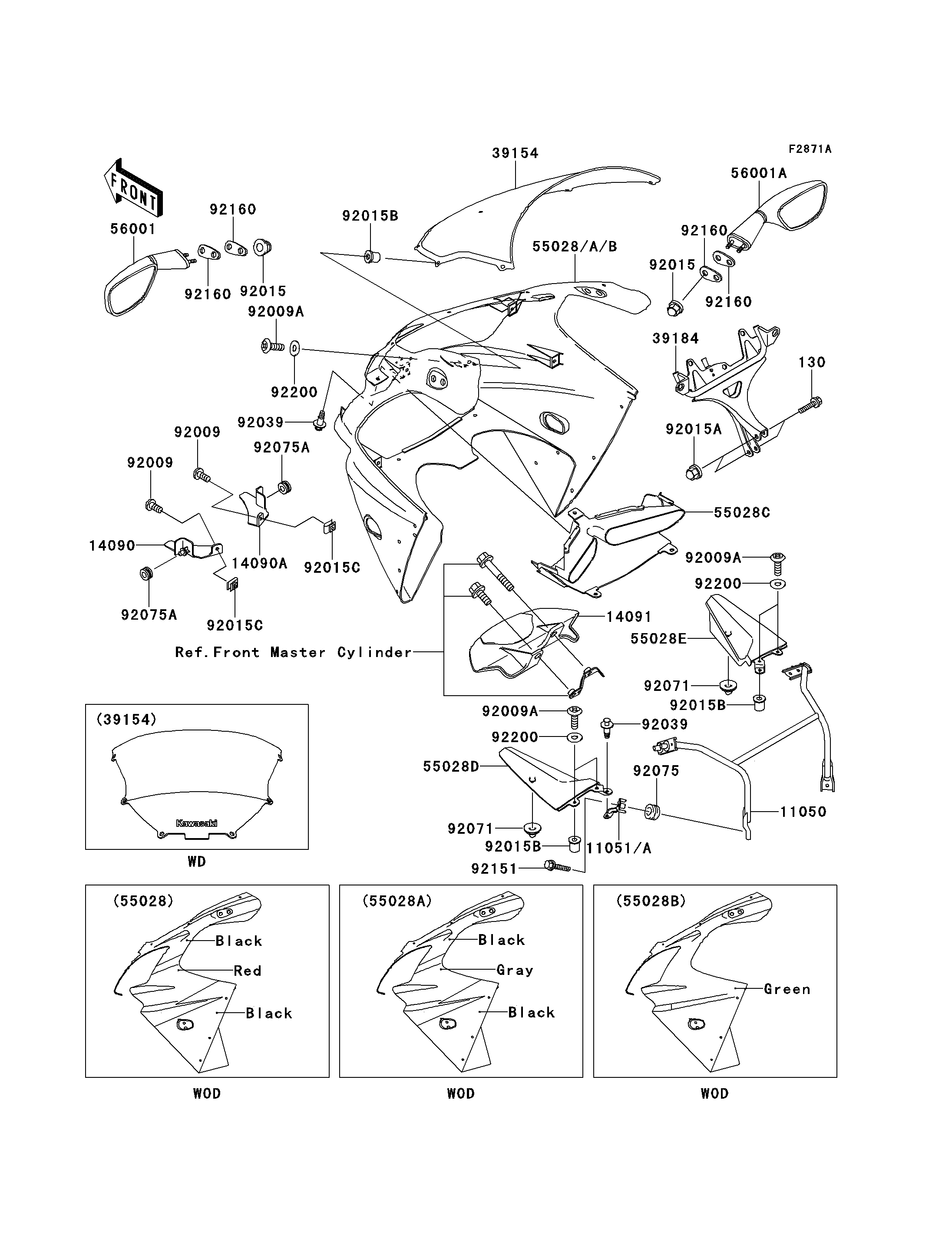

2001 Ninja® ZX™-9R - Cowling(ZX900-E2)

DOWNLOAD PDF
SELECT A NEW PART
130
11050
11051
11051A
14090
14090A
14091
39154
39184
55028B
55028C
55028D
55028E
56001
56001A
92009
92009
92009A
92009A
92009A
92015
92015
92015A
92015B
92015B
92015B
92015C
92015C
92039
92039
92071
92071
92075
92075A
92075A
92151
92160
92160
92160
92160
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130J0830 2
BRACKET,MIRROR 11050 11050-1439 1
BRACKET,INNER COWLING 11051 11051-1818 1
BRACKET,INNER COWLING 11051A 11051-1820 1
COVER,RADIATOR,LH 14090 14090-1950 1
COVER,RADIATOR,RH 14090A 14090-1951 1
COVER,UNDER BRACKET 14091 14091-1271 1
WINDSHIELD 39154 39154-5012 1
BRACKET-ASSY,MAIN 39184 39184-1085 1
COWLING,UPP,C.L.GREEN 55028B 55028-1386-8N 1
COWLING,DUCT,M.F.C.GRAY 55028C 55028-1387-3L 1
COWLING,INNER,LH 55028D 55028-1388 1
COWLING,INNER,RH 55028E 55028-1389 1
MIRROR-ASSY,LH 56001 56001-1483 1
MIRROR-ASSY,RH 56001A 56001-1484 1
SCREW,TAPPING,6X16 92009 92009-1436 2
SCREW,5X16 92009A 92009-1909 10
NUT,CAP,6MM,BLACK 92015 92015-1170 4
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 10
NUT,6MM 92015C 92015-1758 2
RIVET 92039 92039-1227 3
GROMMET 92071 92071-1222 2
DAMPER,RUBBER 92075 92075-1123 2
DAMPER 92075A 92075-1912 2
BOLT,SOCKET,6X25 92151 92151-1611 2
DAMPER,MIRROR 92160 92160-1089 4
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 10
COWLING,UPP,RED/BLACK 55028 55028-1386-QU 1 CAUS
COWLING,UPP,GRAY/BLACK 55028A 55028-1386-6I 1 CN
