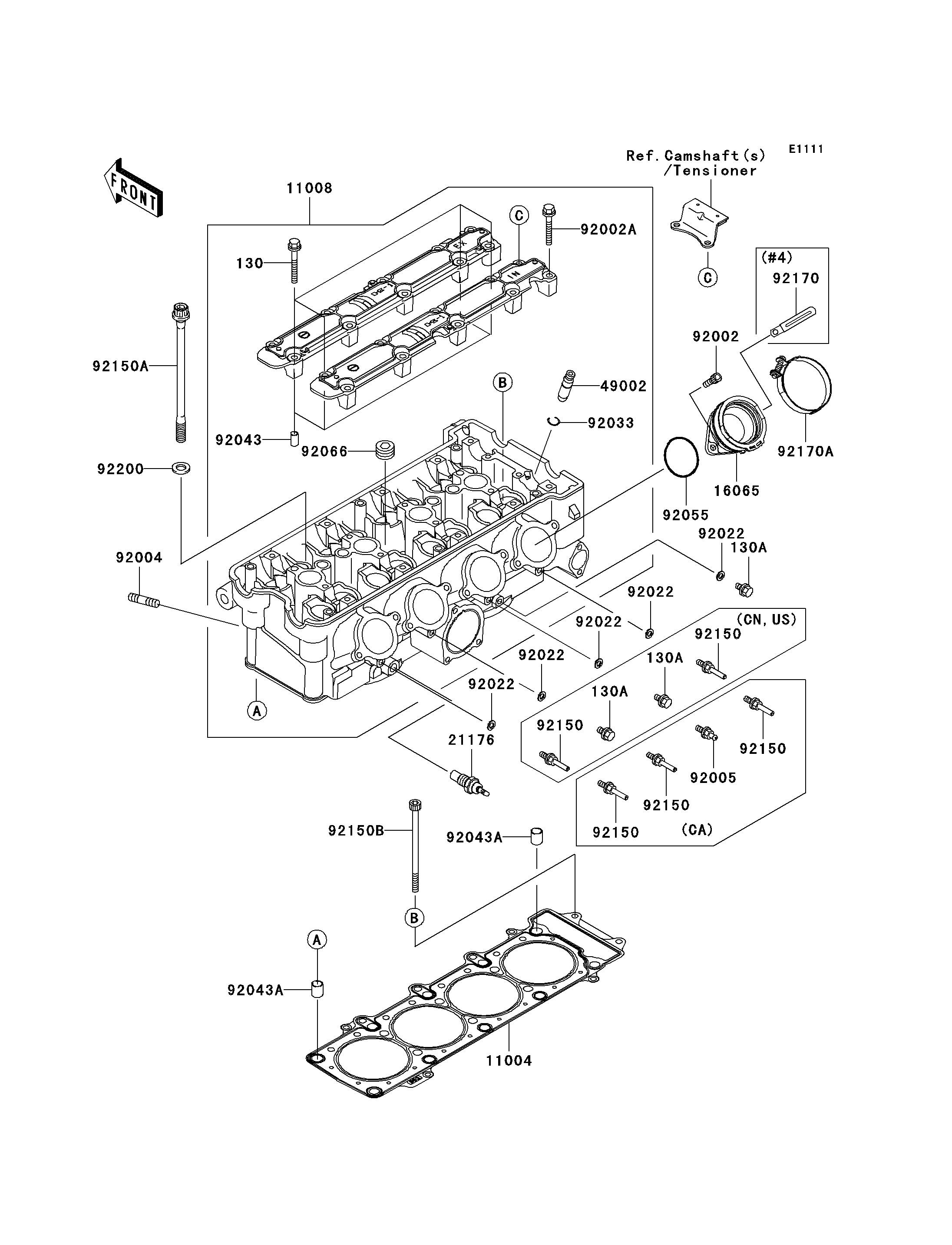

Parts Diagrams |
130
11004
11008
16065
21176
49002
92002
92002A
92004
92022
92022
92022
92022
92022
92033
92043
92043A
92043A
92055
92066
92150A
92150B
92170
92170A
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130P0645 | 4 | ||
GASKET-HEAD | 11004 | 11004-1345 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-1420 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1381 | 4 | ||
SENSOR | 21176 | 21176-1075 | 1 | ||
GUIDE-VALVE | 49002 | 49002-1116 | AR | ||
BOLT,6X16 | 92002 | 92002-1143 | 8 | ||
BOLT,6X40 | 92002A | 92002-1756 | 16 | ||
STUD,8X22 | 92004 | 92004-1249 | 8 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 5 | ||
RING-SNAP | 92033 | 92033-1247 | 16 | ||
PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
PIN,10.1X12X14 | 92043A | 92043-4009 | 2 | ||
RING-O,43.7X1.9 | 92055 | 92055-1401 | 4 | ||
PLUG,PT1/2X12.5 | 92066 | 92066-0002 | 5 | ||
BOLT,10X165 | 92150A | 92150-1368 | 10 | ||
BOLT,SOCKET,6X110 | 92150B | 92150-1755 | 2 | ||
CLAMP | 92170 | 92170-1514 | 1 | ||
CLAMP | 92170A | 92170-1882 | 4 | ||
WASHER,10.5X19X2.3 | 92200 | 92200-1042 | 10 | ||
BOLT-FLANGED | 130A | 130Y0610 | 1 | CA | |
BOLT-FLANGED | 130A | 130Y0610 | 3 | CNUS | |
FITTING | 92005 | 92005-1221 | 1 | CA | |
BOLT | 92150 | 92150-1161 | 2 | CNUS | |
BOLT | 92150 | 92150-1161 | 3 | CA |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET-HEAD | |
REF # | 11004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HEAD-COMP-CYLINDER | |
REF # | 11008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CARBURETOR | |
REF # | 16065 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SENSOR | |
REF # | 21176 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-VALVE | |
REF # | 49002 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT,6X40 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
STUD,8X22 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PIN,10.1X12X14 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,43.7X1.9 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLUG,PT1/2X12.5 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,10X165 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X110 | |
REF # | 92150B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER,10.5X19X2.3 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | CNUS |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BOLT | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CNUS |
REMARKS |
BOLT | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | CA |
REMARKS |
