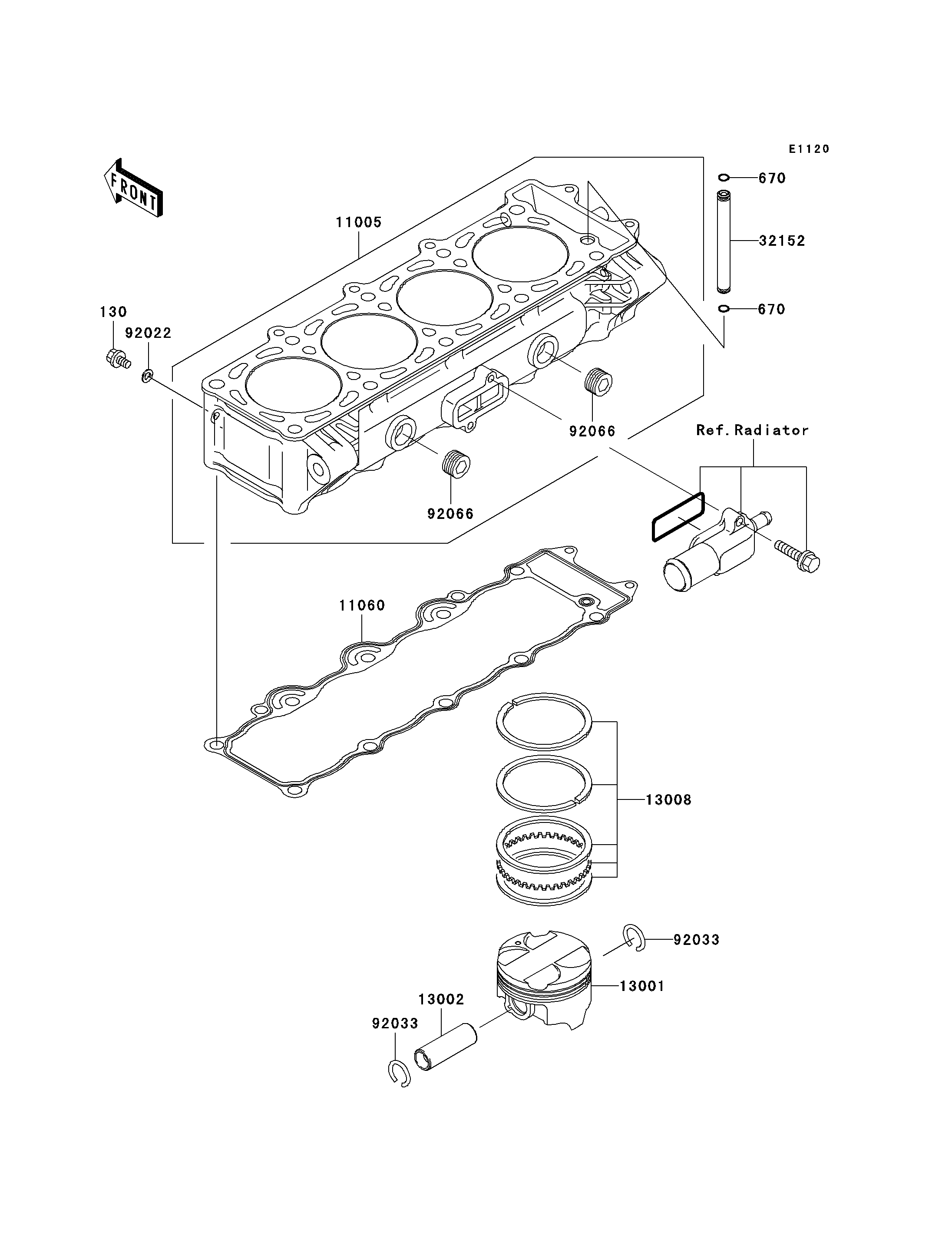

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130Y0610 1
O RING,7MM 670 670D1507 2
CYLINDER-ENGINE 11005 11005-1909 1
GASKET,CYLINDER BASE 11060 11060-1974 1
PISTON-ENGINE 13001 13001-1623 4
PIN-PISTON 13002 13002-1129 4
RING-SET-PISTON 13008 13008-1181 4
PIPE,OIL 32152 32152-1544 1
WASHER,6.2X11X1 92022 92022-304 1
RING-SNAP,20.5X1.2 92033 92033-1099 8
PLUG,PT1/2X12.5 92066 92066-0002 2
