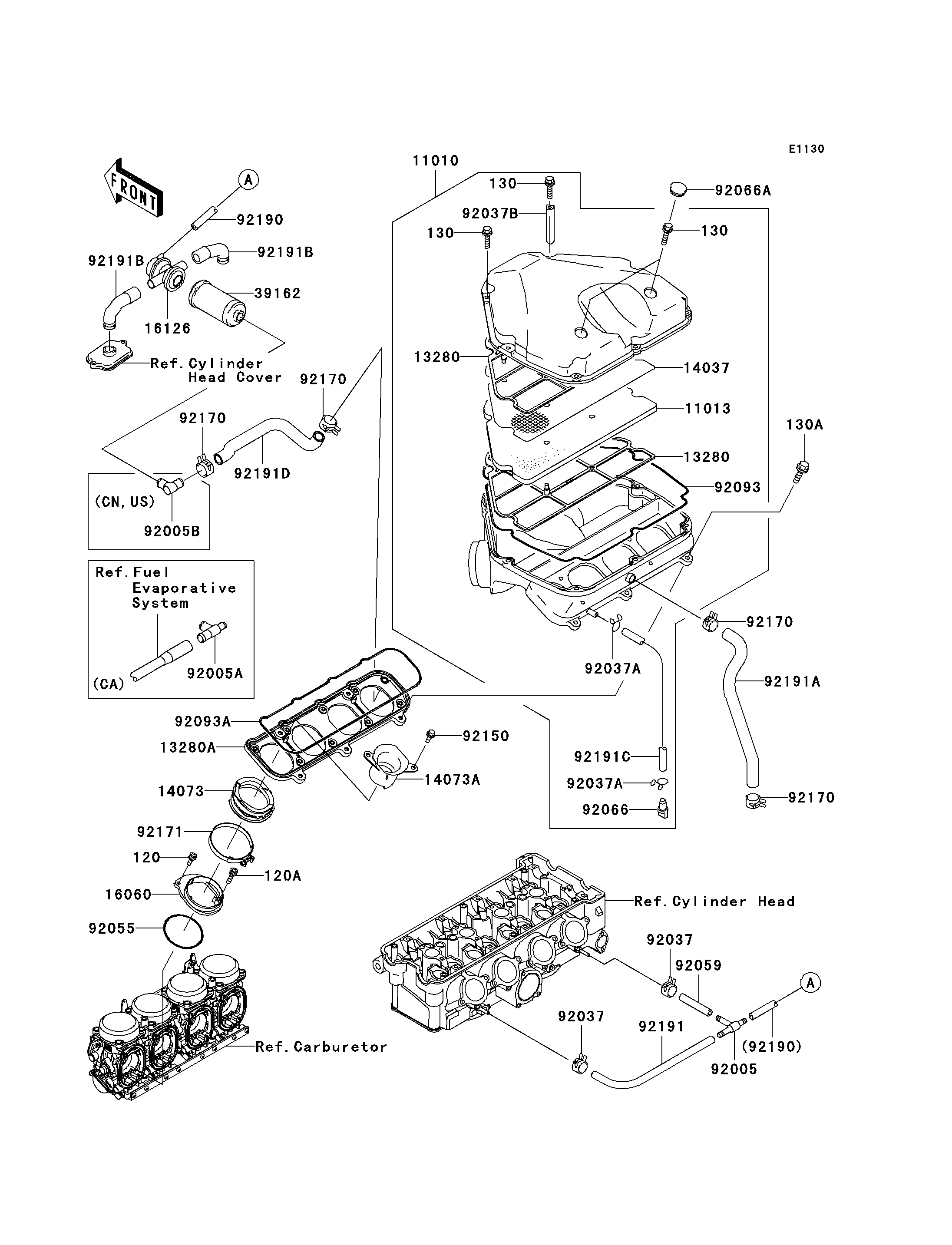

Parts Diagrams |
120
120A
130
130
130
130A
11010
11013
13280
13280
13280A
14037
14073
14073A
16060
16126
39162
92005
92037
92037
92037A
92037A
92037B
92055
92059
92066
92066A
92093
92093A
92150
92170
92170
92170
92170
92171
92190
92191
92191A
92191B
92191B
92191C
92191D
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120P0512 | 4 | ||
BOLT-SOCKET,5X18 | 120A | 120P0518 | 4 | ||
BOLT-FLANGED,6X25 | 130 | 130H0625 | 9 | ||
BOLT-FLANGED | 130A | 130J0620 | 3 | ||
FILTER-ASSY-AIR | 11010 | 11010-1698 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1270 | 1 | ||
HOLDER,ELEMENT | 13280 | 13280-1059 | 2 | ||
HOLDER,AIR FILTER | 13280A | 13280-1146 | 1 | ||
SCREEN,ELEMENT | 14037 | 14037-1244 | 1 | ||
DUCT,CARBURETOR | 14073 | 14073-1840 | 4 | ||
DUCT,AIR FILTER | 14073A | 14073-1841 | 4 | ||
PIPE-INTAKE,CARBURETOR | 16060 | 16060-1094 | 4 | ||
VALVE,AIR SWITCH | 16126 | 16126-1389 | 1 | ||
SILENCER-INTAKE | 39162 | 39162-1091 | 1 | ||
FITTING,TUBE,T-TYPE | 92005 | 92005-1017 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1461 | 2 | ||
CLAMP,TUBE | 92037A | 92037-147 | 2 | ||
CLAMP | 92037B | 92037-1679 | 1 | ||
RING-O,67.7X3.1 | 92055 | 92055-1434 | 4 | ||
TUBE,4X9X50 | 92059 | 92059-1193 | 1 | ||
PLUG,DRAIN | 92066 | 92066-1211 | 1 | ||
PLUG | 92066A | 92066-1389 | 2 | ||
SEAL,AIR FILTER | 92093 | 92093-1452 | 1 | ||
SEAL | 92093A | 92093-1453 | 1 | ||
BOLT,5X12 | 92150 | 92150-1661 | 8 | ||
CLAMP | 92170 | 92170-1060 | 4 | ||
CLAMP | 92171 | 92171-1489 | 4 | ||
TUBE,3WAY-AVT | 92190 | 92190-1558 | 1 | ||
TUBE,4X10X266 | 92191 | 92191-1077 | 1 | ||
TUBE,BREATHER | 92191A | 92191-1177 | 1 | ||
TUBE,AIR SWITCH-VALVE | 92191B | 92191-1179 | 2 | ||
TUBE,7X10X600 | 92191C | 92191-1207 | 1 | ||
TUBE,FITTING-AIR FILTER | 92191D | 92191-1655 | 1 | ||
FITTING,T-TYPE | 92005A | 92005-1252 | 1 | CA | |
FITTING | 92005B | 92005-1309 | 1 | CNUS |
