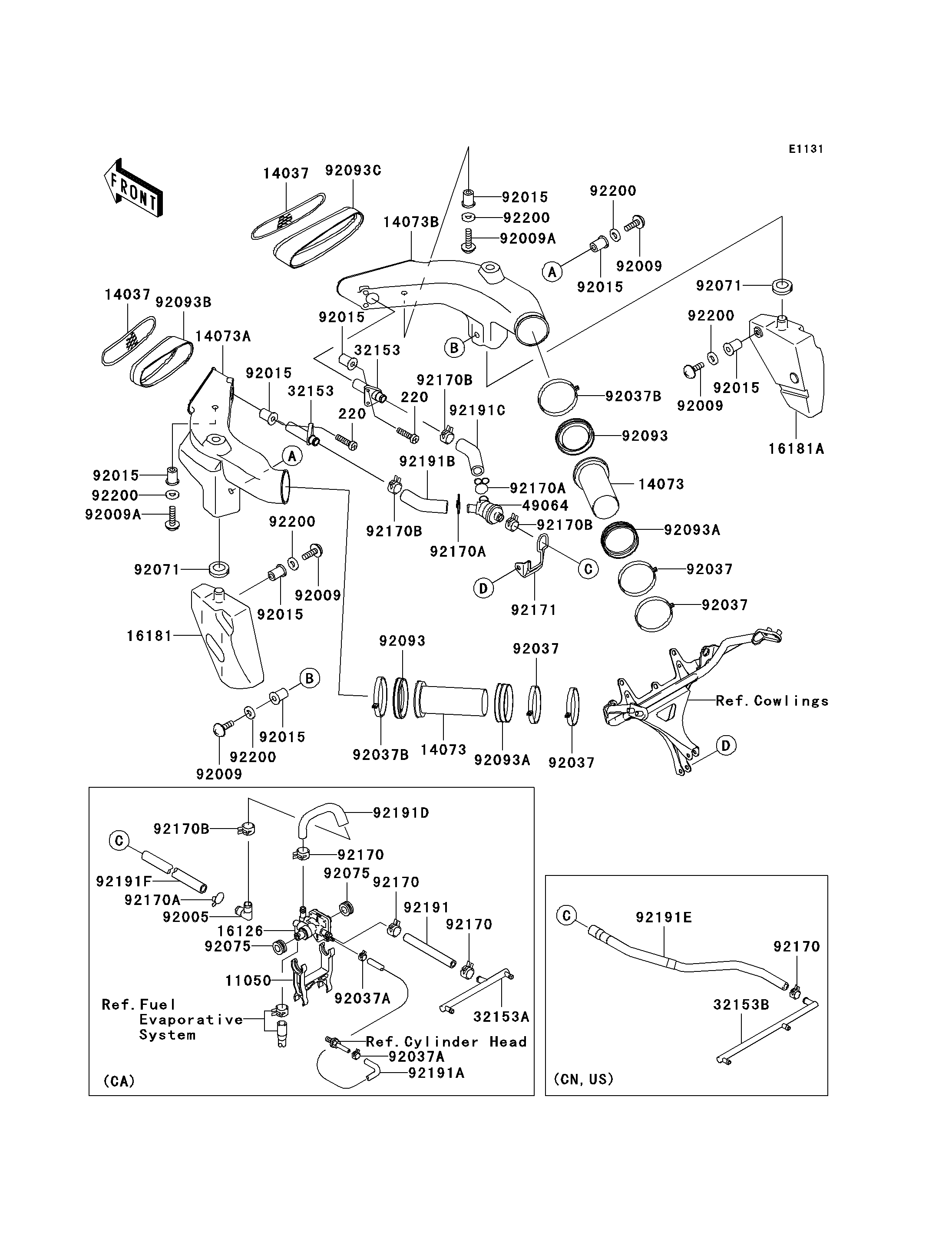

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREEN,AIR DUCT | 14037 | 14037-1267 | 2 | ||
DUCT,AIR FILTER | 14073 | 14073-1706 | 2 | ||
DUCT,LH | 14073A | 14073-1760 | 1 | ||
DUCT,RH | 14073B | 14073-1761 | 1 | ||
TANK-RESONATOR,LH | 16181 | 16181-1089 | 1 | ||
TANK-RESONATOR,RH | 16181A | 16181-1090 | 1 | ||
PIPE,AIR VENT | 32153 | 32153-1103 | 2 | ||
FILTER-AIR | 49064 | 49064-1061 | 1 | ||
SCREW,5X16 | 92009 | 92009-1909 | 4 | ||
SCREW,5X20 | 92009A | 92009-1934 | 2 | ||
NUT,WELL,5MM | 92015 | 92015-1757 | 10 | ||
CLAMP,AIR FILTER,ID=76,BLACK | 92037 | 92037-129 | 4 | ||
CLAMP | 92037B | 92037-1654 | 2 | ||
GROMMET,AIR FILTER | 92071 | 92071-1042 | 2 | ||
SEAL,AIR FILTER DUCT | 92093 | 92093-1456 | 2 | ||
SEAL | 92093A | 92093-1470 | 2 | ||
SEAL,AIR DUCT,LH | 92093B | 92093-1514 | 1 | ||
SEAL,AIR DUCT,RH | 92093C | 92093-1515 | 1 | ||
CLAMP,TUBE&CABLE | 92171 | 92171-1513 | 1 | ||
SCREW-PAN-CROSS | 220 | 220D0520 | 4 | ||
TUBE | 92191B | 92191-1476 | 1 | ||
TUBE | 92191C | 92191-1477 | 1 | ||
WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 6 | ||
BRACKET | 11050 | 11050-1509 | 1 | CA | |
VALVE | 16126 | 16126-1288 | 1 | CA | |
PIPE,3WAY | 32153A | 32153-1104 | 1 | CA | |
PIPE | 32153B | 32153-1321 | 1 | CNUS | |
FITTING | 92005 | 92005-1309 | 1 | CA | |
CLAMP,TUBE | 92037A | 92037-1461 | 2 | CA | |
DAMPER,MUFFLER | 92075 | 92075-1621 | 2 | CA | |
CLAMP | 92170 | 92170-1118 | 1 | CNUS | |
CLAMP | 92170 | 92170-1118 | 3 | CA | |
CLAMP | 92170A | 92170-1486 | 2 | CNUS | |
CLAMP | 92170A | 92170-1486 | 3 | CA | |
CLAMP | 92170B | 92170-1909 | 3 | CNUS | |
CLAMP | 92170B | 92170-1909 | 4 | CA | |
TUBE | 92191 | 92191-1191 | 1 | CA | |
TUBE | 92191A | 92191-1192 | 1 | CA | |
TUBE | 92191D | 92191-1482 | 1 | CA | |
TUBE | 92191E | 92191-1519 | 1 | CNUS | |
TUBE | 92191F | 92191-1520 | 1 | CA |
