Parts Diagrams |
120
11009
11060
11061
18110
39178
49076
92015
92022
92092
92092
92092
92092
92151
92151
92171
92200
92200
92210
92210
92210A

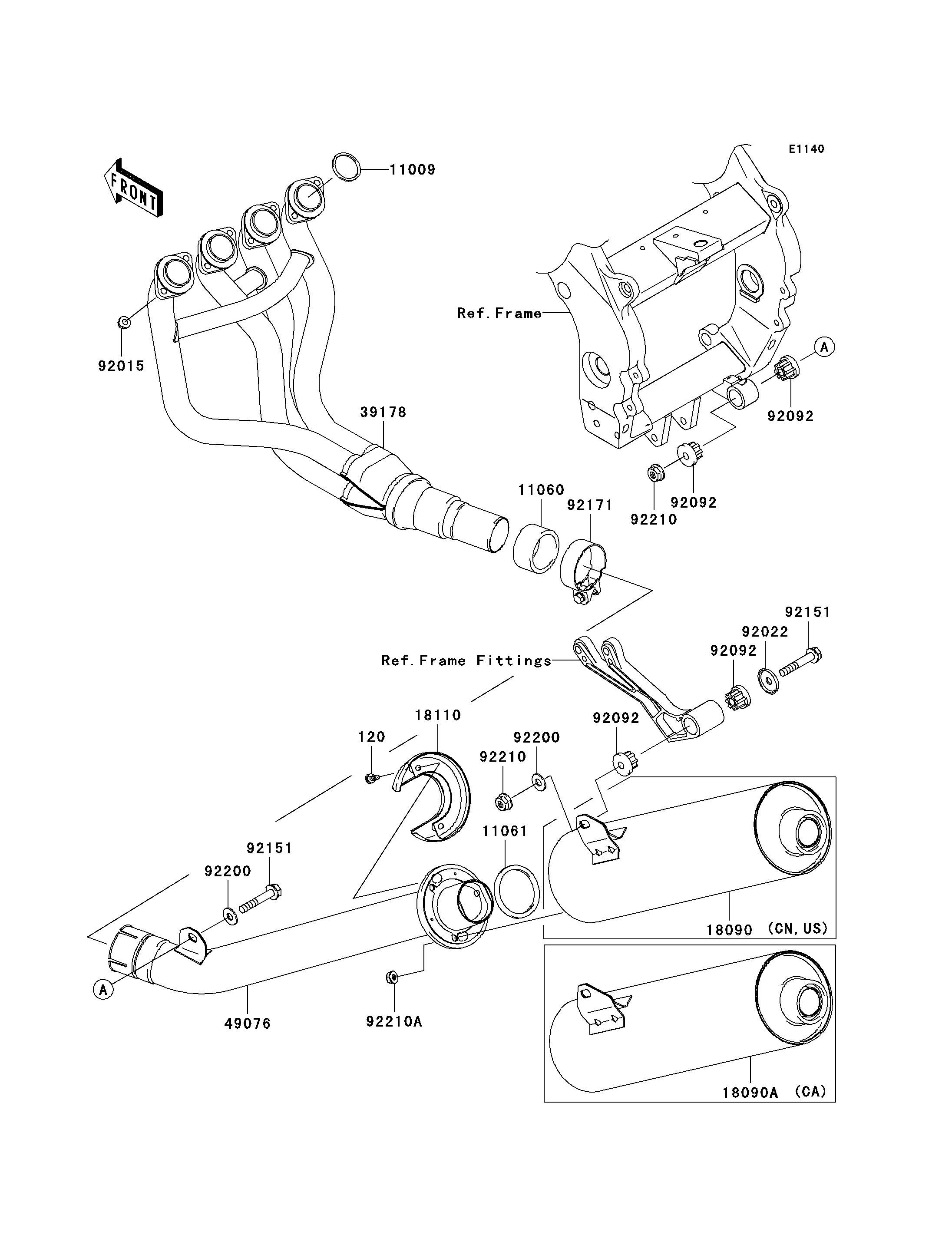

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120R0610 | 2 | ||
GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1840 | 4 | ||
GASKET | 11060 | 11060-1971 | 1 | ||
GASKET | 11061 | 11061-1107 | 1 | ||
BODY END-MUFFLER | 18110 | 18110-1168 | 1 | ||
MANIFOLD-COMP-EXHAUST | 39178 | 39178-1340 | 1 | ||
PIPE-ASSY-EXHAUST | 49076 | 49076-1058 | 1 | ||
NUT,8MM | 92015 | 92015-1402 | 8 | ||
WASHER | 92022 | 92022-289 | 1 | ||
BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 4 | ||
BOLT,10X57 | 92151 | 92151-1771 | 2 | ||
CLAMP | 92171 | 92171-1194 | 1 | ||
WASHER,10.5X25X2.0 | 92200 | 92200-1377 | 2 | ||
NUT,10MM | 92210 | 92210-1102 | 2 | ||
NUT,8MM | 92210A | 92210-1114 | 3 | ||
BODY-COMP-MUFFLER | 18090 | 18090-1945 | 1 | CNUS | |
BODY-COMP-MUFFLER | 18090A | 18090-1947 | 1 | CA |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE HOLDER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11060 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY END-MUFFLER | |
REF # | 18110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MANIFOLD-COMP-EXHAUST | |
REF # | 39178 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-ASSY-EXHAUST | |
REF # | 49076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER,MUFFLER | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,10X57 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.5X25X2.0 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BODY-COMP-MUFFLER | |
REF # | 18090 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
BODY-COMP-MUFFLER | |
REF # | 18090A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
