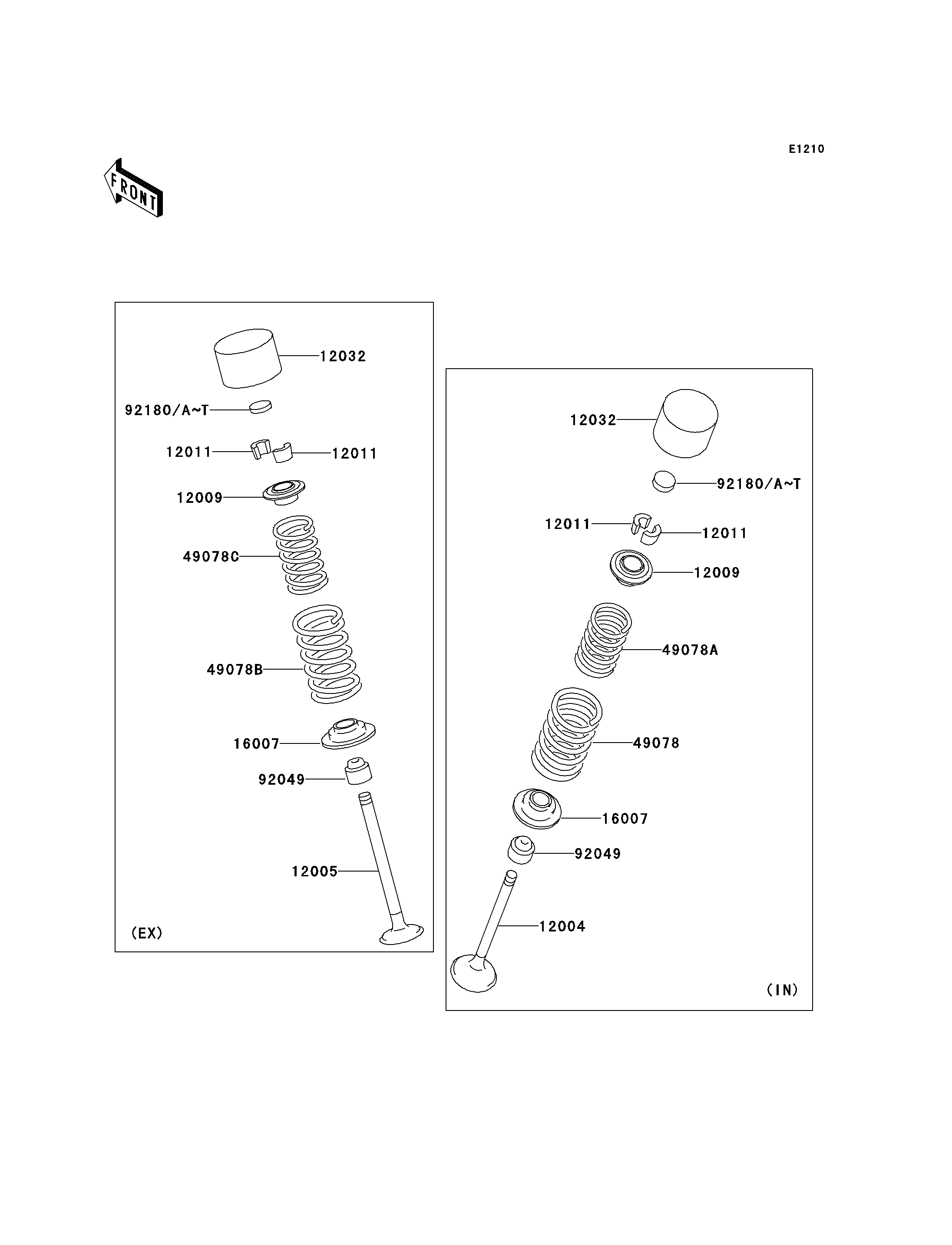

Parts Diagrams |
12004
12005
12009
12009
12011
12011
12011
12011
12032
12032
16007
16007
49078
49078A
49078B
49078C
92049
92049
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92180L
92180L
92180M
92180M
92180N
92180N
92180O
92180O
92180P
92180P
92180Q
92180Q
92180R
92180R
92180S
92180S
92180T
92180T
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
VALVE-INTAKE | 12004 | 12004-1132 | 8 | ||
VALVE-EXHAUST | 12005 | 12005-1256 | 8 | ||
RETAINER-VALVE SPRING | 12009 | 12009-1069 | 16 | ||
COLLET | 12011 | 12011-1053 | 32 | ||
TAPPET | 12032 | 12032-1065 | 16 | ||
SEAT-SPRING | 16007 | 16007-1163 | 16 | ||
SPRING-ENGINE VALVE,OUTER | 49078 | 49078-1160 | 8 | ||
SPRING-ENGINE VALVE,INNER | 49078A | 49078-1161 | 8 | ||
SPRING-ENGINE VALVE,OUTER | 49078B | 49078-1163 | 8 | ||
SPRING-ENGINE VALVE,INNER | 49078C | 49078-1164 | 8 | ||
SEAL-OIL | 92049 | 92049-1349 | 16 | ||
SHIM,T=2.50 | 92180 | 92180-1014 | 16 | ||
SHIM,T=2.55 | 92180A | 92180-1016 | AR | ||
SHIM,T=2.60 | 92180B | 92180-1018 | AR | ||
SHIM,T=2.65 | 92180C | 92180-1020 | AR | ||
SHIM,T=2.70 | 92180D | 92180-1022 | AR | ||
SHIM,T=2.75 | 92180E | 92180-1024 | AR | ||
SHIM,T=2.80 | 92180F | 92180-1026 | AR | ||
SHIM,T=2.85 | 92180G | 92180-1028 | AR | ||
SHIM,T=2.90 | 92180H | 92180-1030 | AR | ||
SHIM,T=2.95 | 92180I | 92180-1032 | AR | ||
SHIM,T=3.00 | 92180J | 92180-1034 | AR | ||
SHIM,T=3.05 | 92180K | 92180-1036 | AR | ||
SHIM,T=3.10 | 92180L | 92180-1038 | AR | ||
SHIM,T=3.15 | 92180M | 92180-1040 | AR | ||
SHIM,T=3.20 | 92180N | 92180-1042 | AR | ||
SHIM,T=3.25 | 92180O | 92180-1044 | AR | ||
SHIM,T=3.30 | 92180P | 92180-1046 | AR | ||
SHIM,T=3.35 | 92180Q | 92180-1048 | AR | ||
SHIM,T=3.40 | 92180R | 92180-1050 | AR | ||
SHIM,T=3.45 | 92180S | 92180-1052 | AR | ||
SHIM,T=3.50 | 92180T | 92180-1054 | AR |
