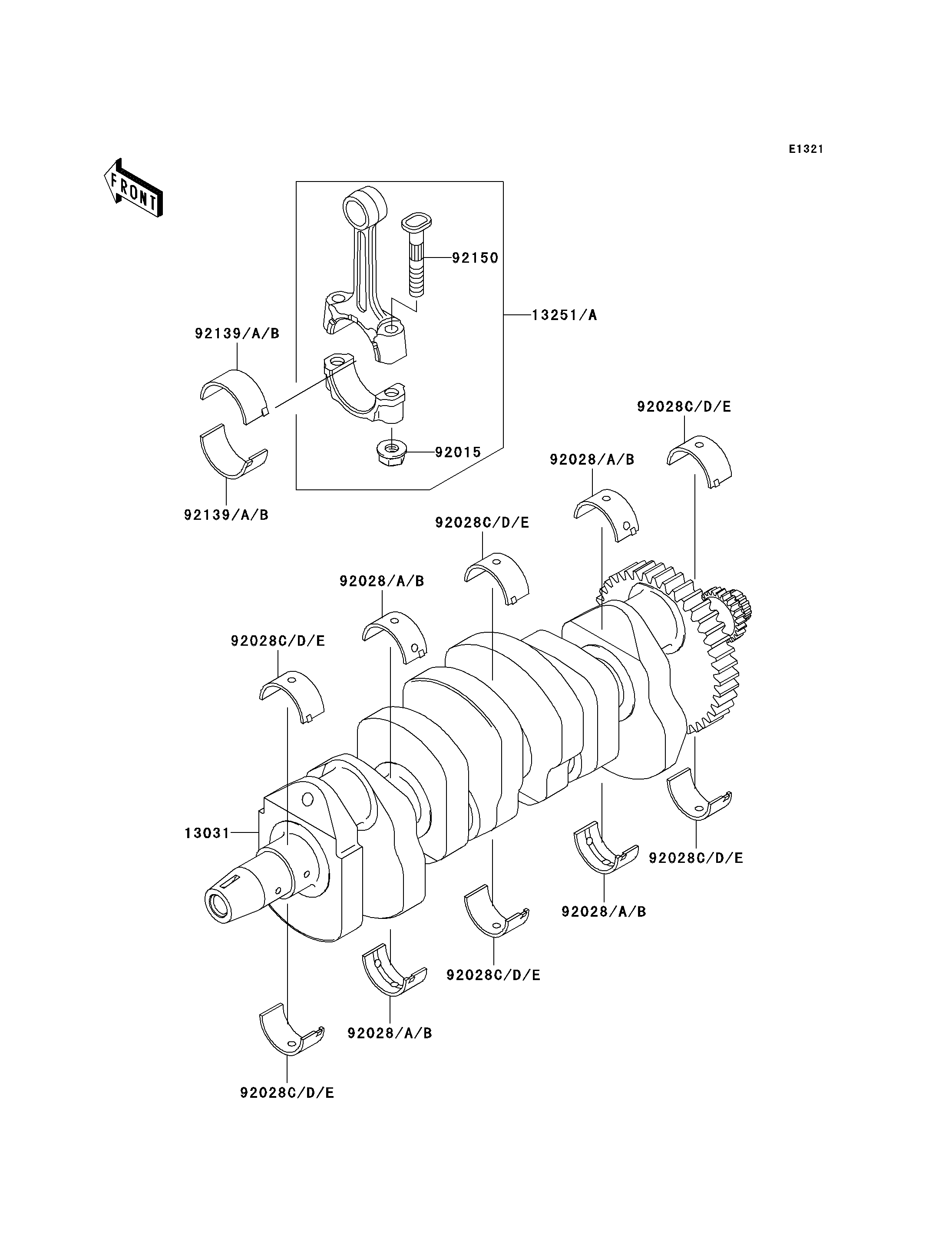

Parts Diagrams |
13031
13251
13251A
92015
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
92028C
92028C
92028C
92028C
92028C
92028C
92028D
92028D
92028D
92028D
92028D
92028D
92028E
92028E
92028E
92028E
92028E
92028E
92139
92139
92139A
92139A
92139B
92139B
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-1502 | 1 | ||
| ROD-ASSY-CONNECTING | 13251 | 13251-1122-II | 4 | ||
| ROD-ASSY-CONNECTING,J | 13251A | 13251-1122-JJ | 4 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1311 | 8 | ||
| BUSHING,CRANK,#2,#4,BLUE | 92028 | 92028-1827 | 4 | ||
| BUSHING,CRANK,#2,#4,BLACK | 92028A | 92028-1828 | AR | ||
| BUSHING,CRANK,#2,#4,BROWN | 92028B | 92028-1829 | AR | ||
| BUSHING,CRANK,#1,#3,#5,BLUE | 92028C | 92028-1866 | 6 | ||
| BUSHING,CRANK,#1,#3,#5,BLACK | 92028D | 92028-1867 | AR | ||
| BUSHING,CRANK,#1,#3,#5,BROWN | 92028E | 92028-1868 | AR | ||
| BUSHING,CONNECTING ROD,BLUE | 92139 | 92139-1097 | 8 | ||
| BUSHING,CONNECTING ROD,BLACK | 92139A | 92139-1098 | AR | ||
| BUSHING,CONNECTING ROD,BROWN | 92139B | 92139-1099 | AR | ||
| BOLT,CONNECTING ROD,8MM | 92150 | 92150-1216 | 8 |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING | |
| REF # | 13251 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-CONNECTING,J | |
| REF # | 13251A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#2,#4,BLUE | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#2,#4,BLACK | |
| REF # | 92028A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#2,#4,BROWN | |
| REF # | 92028B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#1,#3,#5,BLUE | |
| REF # | 92028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#1,#3,#5,BLACK | |
| REF # | 92028D |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CRANK,#1,#3,#5,BROWN | |
| REF # | 92028E |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BLUE | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BLACK | |
| REF # | 92139A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BUSHING,CONNECTING ROD,BROWN | |
| REF # | 92139B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BOLT,CONNECTING ROD,8MM | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
