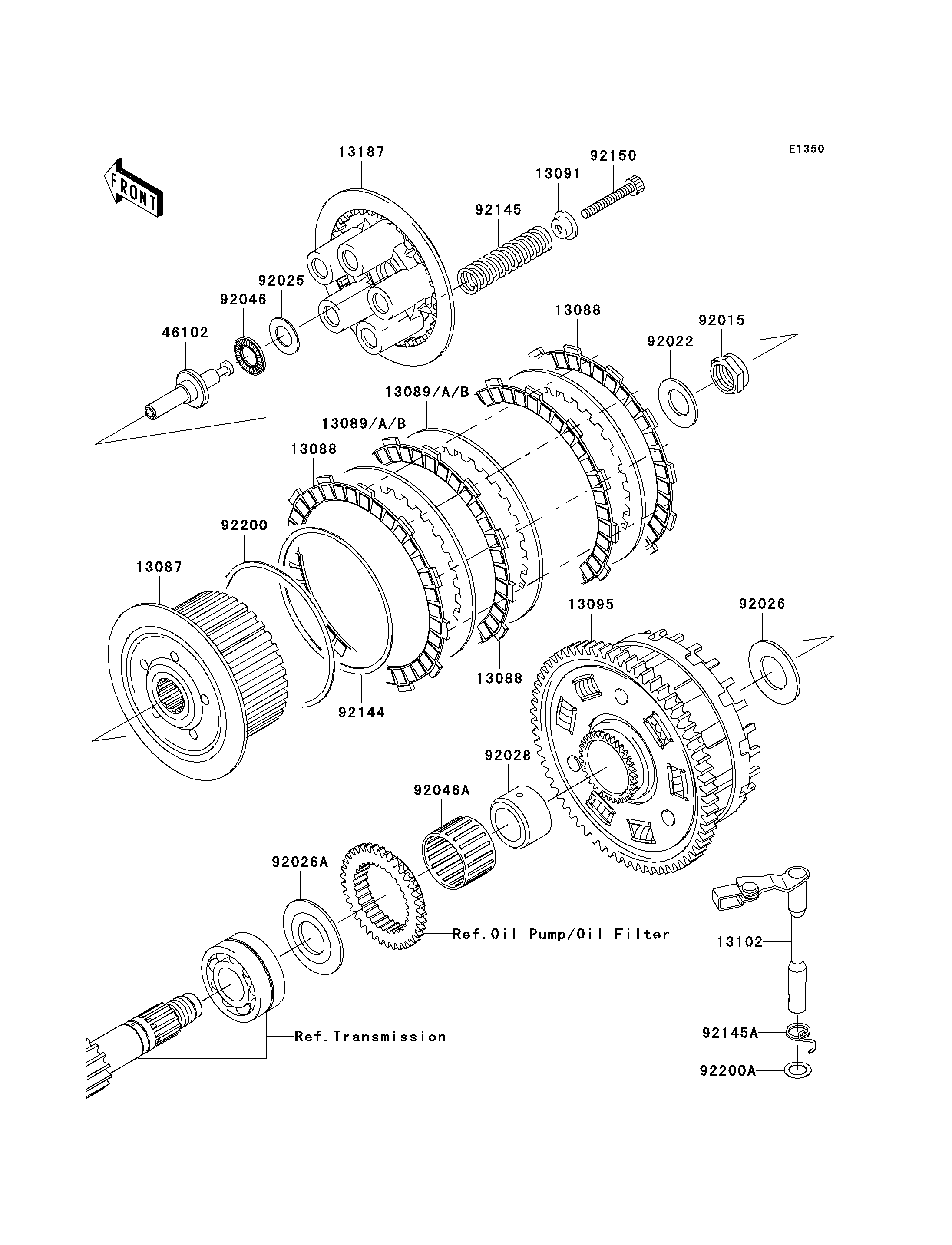

Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13087
13088
13088
13088
13089
13089
13089A
13089A
13089B
13089B
13091
13095
13102
13187
46102
92015
92022
92025
92026
92026A
92028
92046
92046A
92144
92145
92145A
92150
92200
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HUB-CLUTCH | 13087 | 13087-1173 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1124 | 10 | ||
PLATE-CLUTCH,T=2.0 | 13089 | 13089-1073 | AR | ||
PLATE-CLUTCH,T=2.3 | 13089A | 13089-1084 | 9 | ||
PLATE-CLUTCH,T=2.6 | 13089B | 13089-1115 | AR | ||
HOLDER,CLUTCH SPRING | 13091 | 13091-1041 | 5 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1417 | 1 | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-1140 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-1083 | 1 | ||
ROD | 46102 | 46102-1425 | 1 | ||
NUT,20MM | 92015 | 92015-1555 | 1 | ||
WASHER | 92022 | 92022-1868 | 1 | ||
SHIM,15.3X27.5X1.20 | 92025 | 92025-1137 | 1 | ||
SPACER,25.5X47X2.5 | 92026 | 92026-022 | 1 | ||
SPACER | 92026A | 92026-1497 | 1 | ||
BUSHING | 92028 | 92028-1741 | 1 | ||
BEARING-NEEDLE,AXK1102 | 92046 | 92046-1052 | 1 | ||
BEARING-NEEDLE | 92046A | 92046-1231 | 1 | ||
SPRING,FRICTION PLATE | 92144 | 92144-1854 | 1 | ||
SPRING,CLUTCH | 92145 | 92145-1364 | 5 | ||
SPRING,CLUTCH RELEASE | 92145A | 92145-1468 | 1 | ||
BOLT,CLUTCH OPERATING | 92150 | 92150-1855 | 5 | ||
WASHER,FRICTION PLATE | 92200 | 92200-1260 | 1 | ||
WASHER,12X18.5X0.5 | 92200A | 92200-1487 | 1 |
