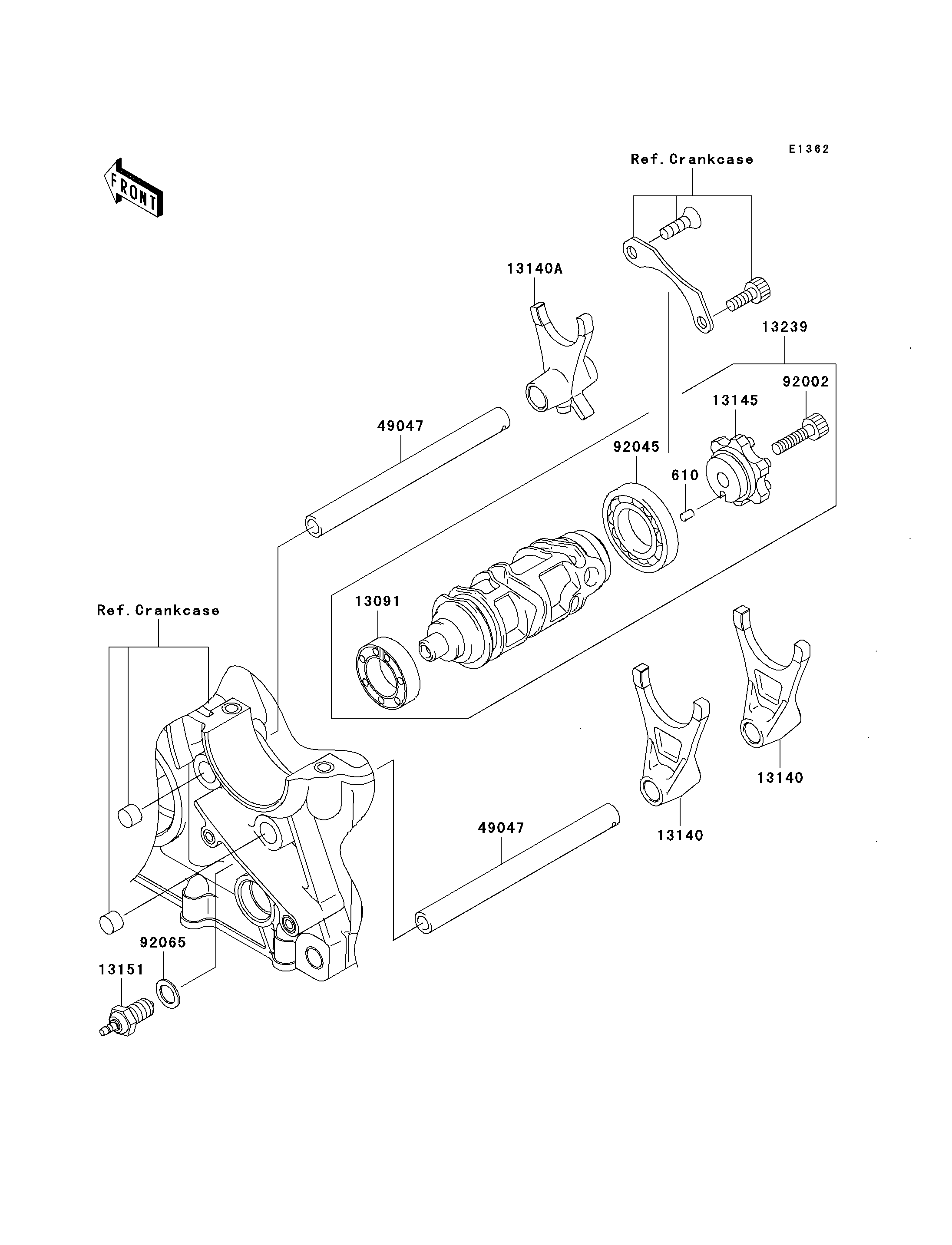

2003 Ninja® ZX-9R - Gear Change Drum/Shift Fork(s)

610
13091
13140
13140
13140A
13145
13151
13239
49047
49047
92002
92045
92065
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X6 610 610A0406 1
HOLDER 13091 13091-1791 1
FORK-SHIFT,OUTPUT 13140 13140-1266 2
FORK-SHIFT,INPUT 13140A 13140-1317 1
CAM-CHANGE DRUM 13145 13145-1082 1
SWITCH-COMP 13151 13151-1085 1
DRUM-ASSY-CHANGE 13239 13239-1209 1
ROD-SHIFT 49047 49047-1106 2
BOLT,SOCKET,6X25 92002 92002-1696 1
BEARING-BALL,16005(NTN) 92045 92045-1045 1
GASKET,10.5X16X1 92065 92065-058 1
