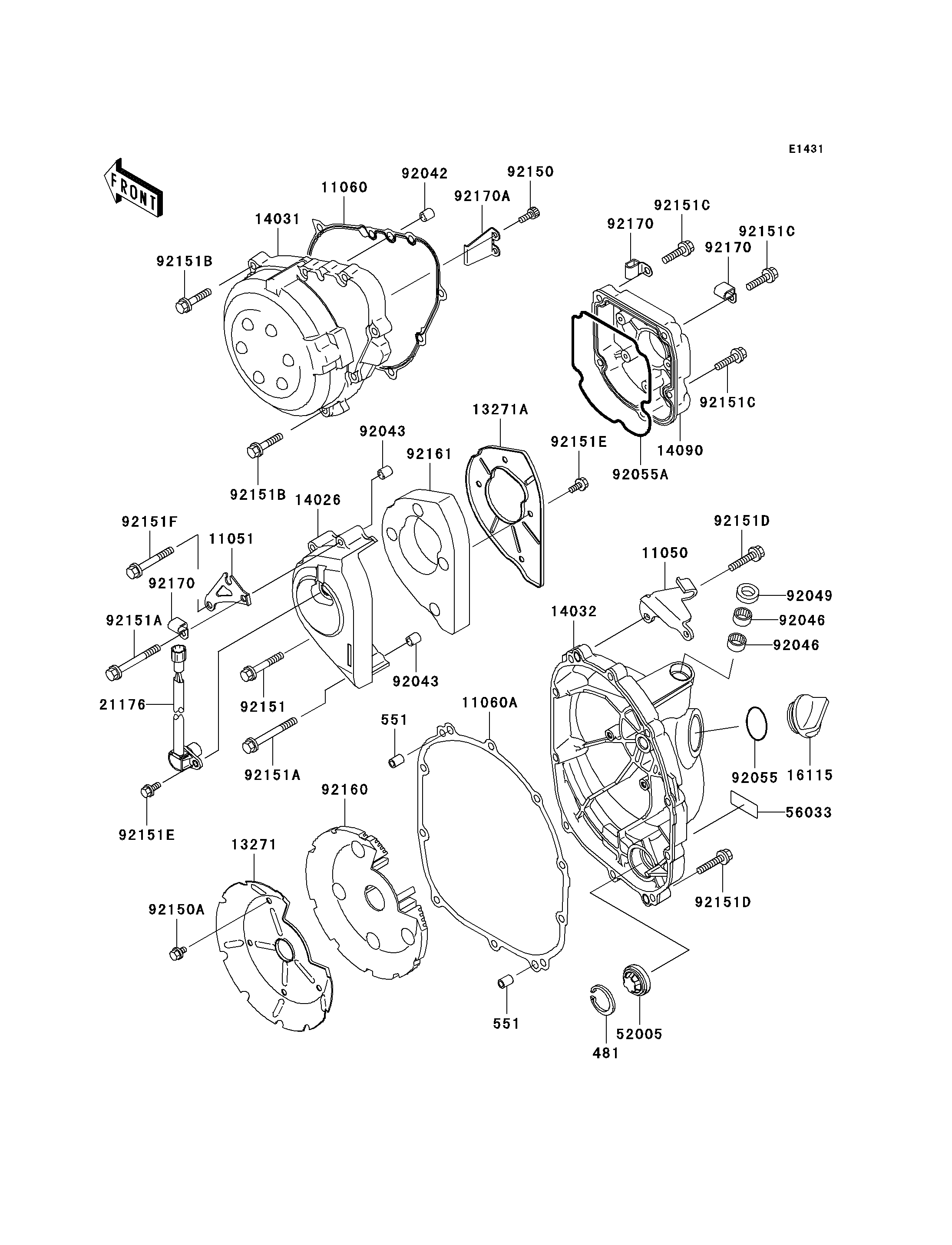

Parts Diagrams |
481
551
551
11050
11051
11060
11060A
13271
13271A
14026
14031
14032
14090
16115
21176
52005
56033
92042
92043
92043
92046
92046
92049
92055
92055A
92150
92150A
92151
92151A
92151A
92151B
92151B
92151C
92151C
92151C
92151D
92151D
92151E
92151E
92151F
92160
92161
92170
92170
92170
92170A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,30MM | 481 | 481J3000 | 1 | ||
PIN-DOWEL,8X14 | 551 | 551A0814 | 2 | ||
BRACKET,CLUTCH CABLE | 11050 | 11050-1435 | 1 | ||
BRACKET,CABLE | 11051 | 11051-1807 | 1 | ||
GASKET,GENERATOR COVER | 11060 | 11060-1854 | 1 | ||
GASKET,CLUTCH COVER | 11060A | 11060-1855 | 1 | ||
PLATE | 13271 | 13271-1053 | 1 | ||
PLATE | 13271A | 13271-1055 | 1 | ||
COVER-CHAIN | 14026 | 14026-1272 | 1 | ||
COVER-GENERATOR | 14031 | 14031-1371 | 1 | ||
COVER-CLUTCH | 14032 | 14032-1528 | 1 | ||
COVER,PULSE | 14090 | 14090-1859 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
SENSOR,SPEED | 21176 | 21176-1076 | 1 | ||
GAUGE | 52005 | 52005-1120 | 1 | ||
LABEL-MANUAL,OIL CAPACITY | 56033 | 56033-1075 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 2 | ||
PIN,8X16 | 92043 | 92043-1322 | 2 | ||
BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 2 | ||
SEAL-OIL,CLUTCH RELEASE | 92049 | 92049-1475 | 1 | ||
RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
RING-O,PULSE COVER | 92055A | 92055-1570 | 1 | ||
BOLT,SOCKET,5X14 | 92150 | 92150-1180 | 2 | ||
BOLT,5X8 | 92150A | 92150-1406 | 4 | ||
BOLT,6X40 | 92151 | 92151-1131 | 1 | ||
BOLT,6X55 | 92151A | 92151-1132 | 2 | ||
BOLT,6X30 | 92151B | 92151-1134 | 8 | ||
BOLT,6X25 | 92151C | 92151-1225 | 5 | ||
BOLT,6X30 | 92151D | 92151-1228 | 10 | ||
BOLT,5X12 | 92151E | 92151-1249 | 5 | ||
BOLT,6X45 | 92151F | 92151-1336 | 1 | ||
DAMPER | 92160 | 92160-1920 | 1 | ||
DAMPER | 92161 | 92161-1148 | 1 | ||
CLAMP | 92170 | 92170-1577 | 3 | ||
CLAMP | 92170A | 92170-1579 | 1 |
