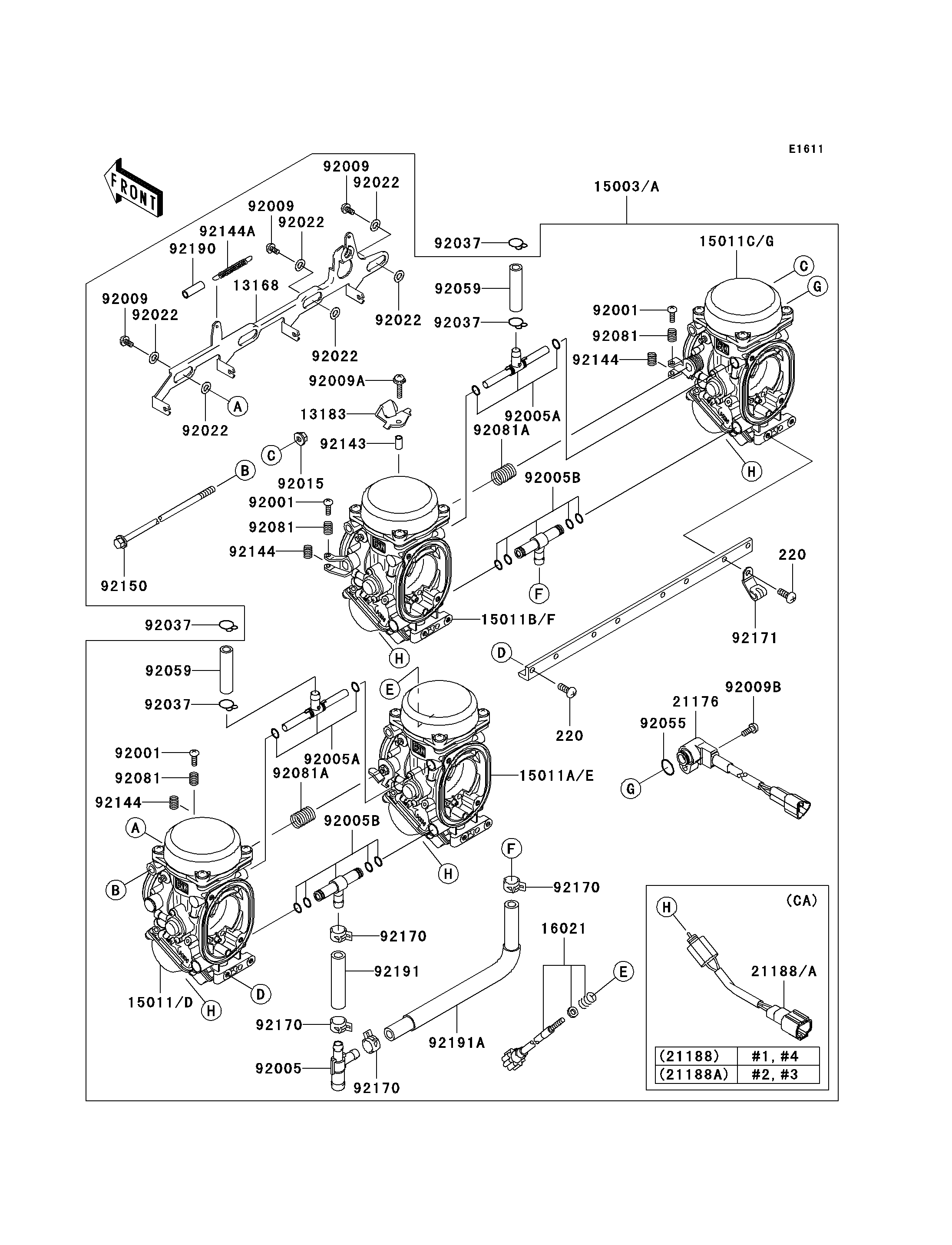

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER,STARTER | 13168 | 13168-1593 | 1 | ||
PLATE,STARTER CABLE | 13183 | 13183-1592 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1239 | 1 | ||
SENSOR,THROTTLE | 21176 | 21176-1113 | 1 | ||
BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
FITTING,T-TYPE | 92005 | 92005-1272 | 1 | ||
FITTING | 92005A | 92005-1338 | 2 | ||
FITTING | 92005B | 92005-1347 | 2 | ||
SCREW | 92009 | 92009-1262 | 3 | ||
SCREW,4X18 | 92009A | 92009-1632 | 1 | ||
SCREW,THROTTLE SENSOR | 92009B | 92009-1981 | 1 | ||
NUT,FLANGED,5MM | 92015 | 92015-1259 | 1 | ||
WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
CLAMP,TUBE | 92037 | 92037-1531 | 4 | ||
RING-O,THROTTLE SENSOR | 92055 | 92055-1671 | 1 | ||
TUBE,7X11X45 | 92059 | 92059-1738 | 2 | ||
SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 3 | ||
SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 8 | ||
SPRING,THROTTLE ADJUST CNT | 92081A | 92081-1622 | 2 | ||
COLLAR,4X5.2X9.6 | 92143 | 92143-1265 | 1 | ||
SPRING,THROTTLE ADJUST LWR | 92144 | 92144-1451 | 3 | ||
SPRING,STARTER LEVER | 92144A | 92144-1518 | 1 | ||
BOLT | 92150 | 92150-1416 | 1 | ||
CLAMP,TUBE | 92170 | 92170-1051 | 4 | ||
CLAMP,THROTTLE SENSOR | 92171 | 92171-1533 | 1 | ||
TUBE,STARTER SPRING | 92190 | 92190-1157 | 1 | ||
TUBE,7.3X12.5X55 | 92191 | 92191-1263 | 1 | ||
TUBE,7.3X12.5X220 | 92191A | 92191-1264 | 1 | ||
CARBURETOR-ASSY | 15003 | 15003-1680 | 1 | CNUS | |
CARBURETOR-ASSY | 15003A | 15003-1685 | 1 | CA | |
CARBURETOR,LH,OUTSIDE | 15011 | 15011-1925 | 1 | CNUS | |
CARBURETOR,LH,INSIDE | 15011A | 15011-1926 | 1 | CNUS | |
CARBURETOR,RH,INSIDE | 15011B | 15011-1927 | 1 | CNUS | |
CARBURETOR,RH,OUTSIDE | 15011C | 15011-1928 | 1 | CNUS | |
CARBURETOR,LH,OUTSIDE | 15011D | 15011-1929 | 1 | CA | |
CARBURETOR,LH,INSIDE | 15011E | 15011-1930 | 1 | CA | |
CARBURETOR,RH,INSIDE | 15011F | 15011-1931 | 1 | CA | |
CARBURETOR,RH,OUTSIDE | 15011G | 15011-1932 | 1 | CA | |
SOLENOID,#1,FUEL CUT VALVE | 21188 | 21188-1006 | 2 | CA | |
SOLENOID,#2,FUEL CUT VALVE | 21188A | 21188-1007 | 2 | CA |
