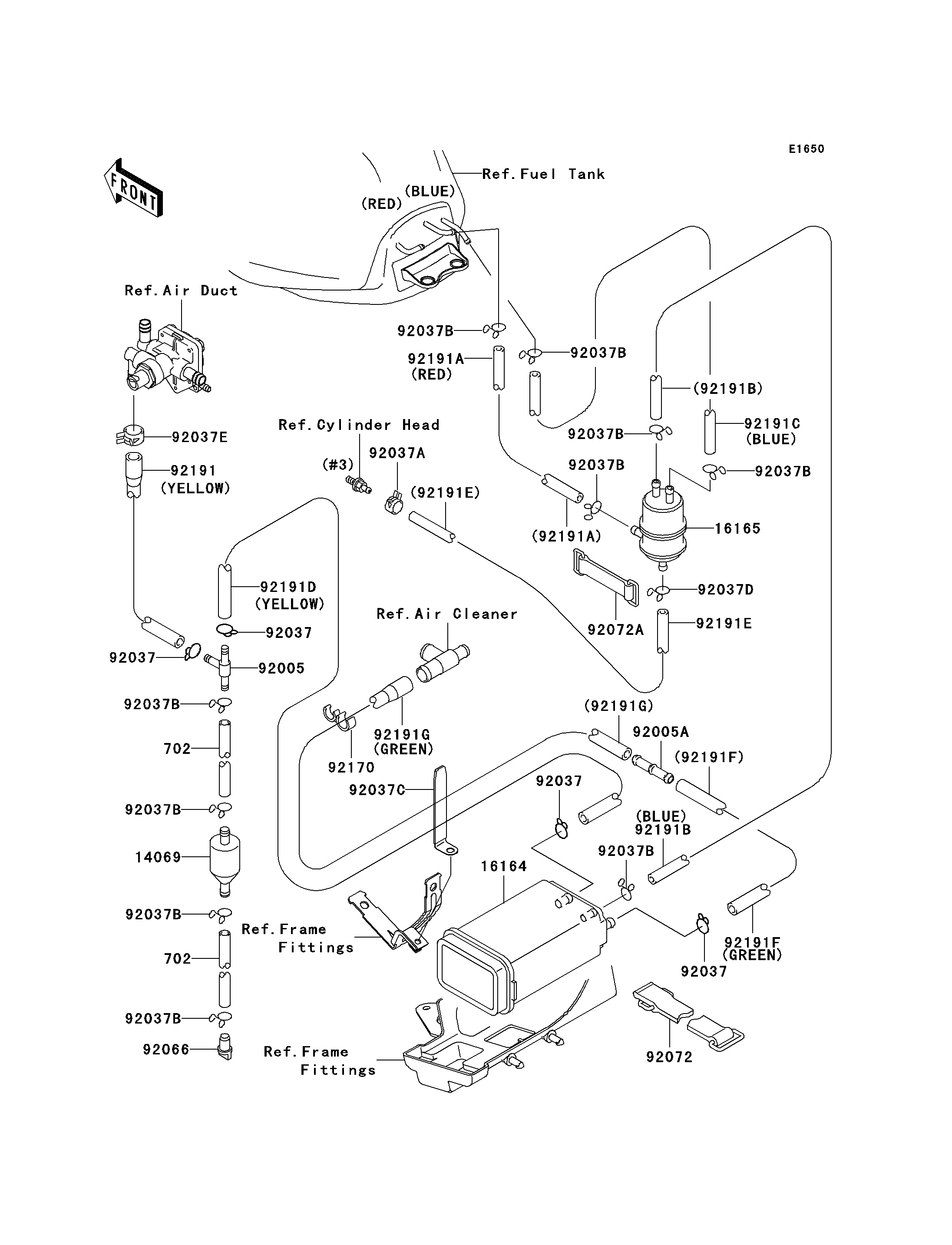

2003 Ninja® ZX™-9R - Fuel Evaporative System(CA)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BREATHER | 14069 | 14069-1051 | 1 | CA | |
CANISTER | 16164 | 16164-1052 | 1 | CA | |
SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
FITTING,T-TYPE | 92005 | 92005-1119 | 1 | CA | |
FITTING | 92005A | 92005-1377 | 1 | CA | |
CLAMP,HOSE | 92037 | 92037-1104 | 4 | CA | |
CLAMP,TUBE | 92037A | 92037-1461 | 1 | CA | |
CLAMP,TUBE | 92037B | 92037-147 | 10 | CA | |
CLAMP | 92037C | 92037-1679 | 1 | CA | |
CLAMP | 92037D | 92037-1712 | 1 | CA | |
CLAMP | 92037E | 92037-2082 | 1 | CA | |
PLUG,DRAIN | 92066 | 92066-1211 | 1 | CA | |
BAND,L=150 | 92072 | 92072-1203 | 1 | CA | |
BAND,L=50 | 92072A | 92072-1419 | 1 | CA | |
CLAMP,TUBE | 92170 | 92170-1353 | 1 | CA | |
TUBE,CANISTER-VALVE,YELLOW | 92191 | 92191-1184 | 1 | CA | |
TUBE,SEPARATOR-TANK,RED | 92191A | 92191-1489 | 1 | CA | |
TUBE,SEPARATOR-CANISTER,BLUE | 92191B | 92191-1490 | 1 | CA | |
TUBE,SEPARATOR-TANK,BLUE | 92191C | 92191-1491 | 1 | CA | |
TUBE,3WAY-CANISTER,YELLOW | 92191D | 92191-1492 | 1 | CA | |
TUBE | 92191E | 92191-1518 | 1 | CA | |
TUBE,CANISTER GREEN | 92191F | 92191-1737 | 1 | CA | |
TUBE-RUBBER | 702 | 702A07150 | 2 | CA | |
TUBE,VALVE GREEN | 92191G | 92191-1738 | 1 | CA |
BREATHER | |
REF # | 14069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CANISTER | |
REF # | 16164 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
SEPARATOR | |
REF # | 16165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
FITTING,T-TYPE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
FITTING | |
REF # | 92005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | CA |
REMARKS |
CLAMP,TUBE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,TUBE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 10 |
DESTINATION | CA |
REMARKS |
CLAMP | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP | |
REF # | 92037D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP | |
REF # | 92037E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
PLUG,DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BAND,L=150 | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
BAND,L=50 | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
CLAMP,TUBE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,CANISTER-VALVE,YELLOW | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,SEPARATOR-TANK,RED | |
REF # | 92191A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,SEPARATOR-CANISTER,BLUE | |
REF # | 92191B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,SEPARATOR-TANK,BLUE | |
REF # | 92191C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,3WAY-CANISTER,YELLOW | |
REF # | 92191D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE | |
REF # | 92191E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE,CANISTER GREEN | |
REF # | 92191F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TUBE-RUBBER | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | CA |
REMARKS |
TUBE,VALVE GREEN | |
REF # | 92191G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
