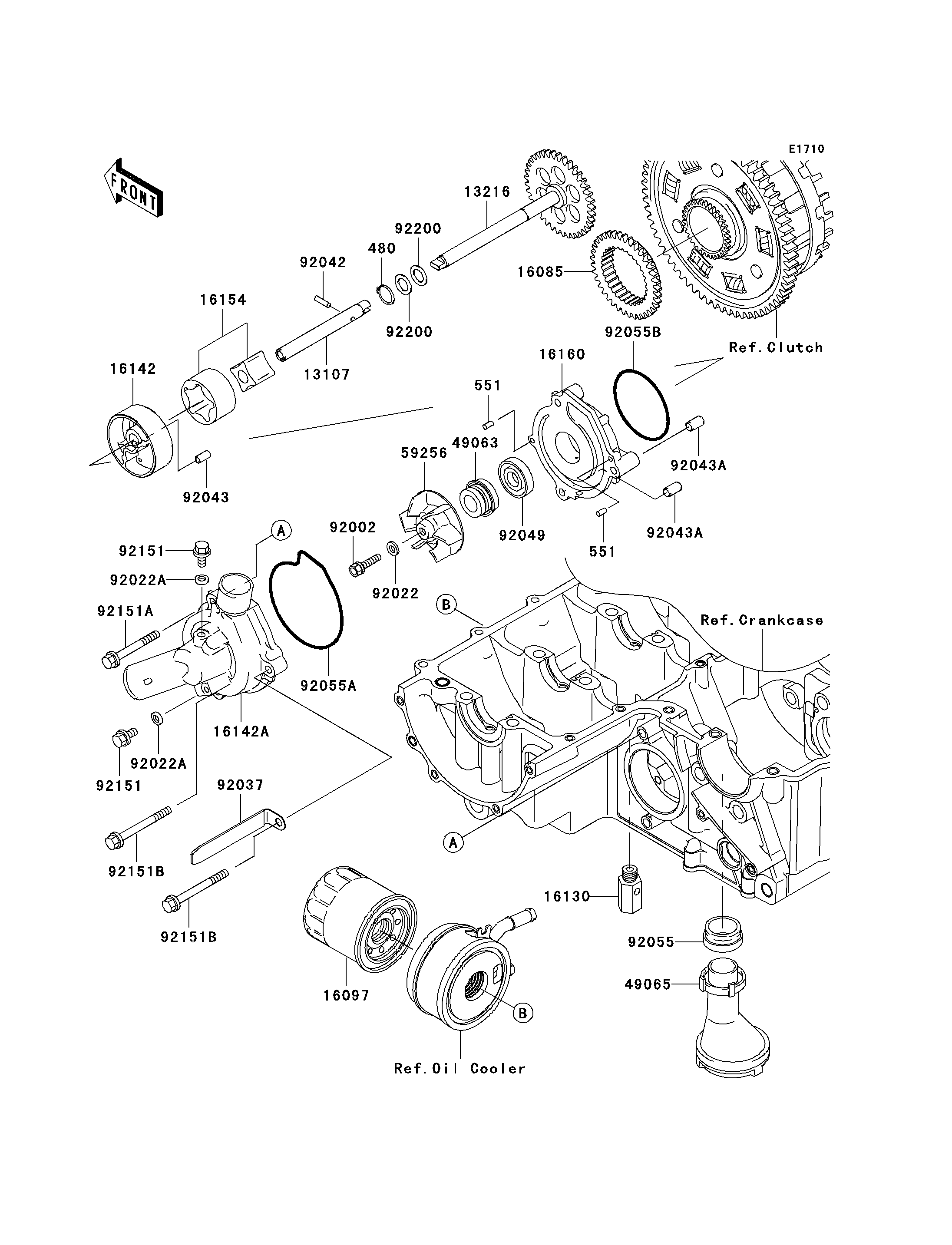

2003 Ninja® ZX™-9R - Oil Pump/Oil Filter
480
551
551
13107
13216
16085
16097
16130
16142
16142A
16154
16160
49063
49065
59256
92002
92022
92022A
92022A
92037
92042
92043
92043A
92043A
92049
92055
92055A
92055B
92151
92151
92151A
92151B
92151B
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,11MM | 480 | 480J1100 | 1 | ||
PIN-DOWEL,4X8 | 551 | 551A0408 | 2 | ||
SHAFT,OIL PUMP | 13107 | 13107-1378 | 1 | ||
GEAR-COMP,OIL PUMP,37T | 13216 | 13216-1168 | 1 | ||
GEAR,OIL PUMP,37T | 16085 | 16085-1305 | 1 | ||
FILTER-ASSY-OIL | 16097 | 16097-1070 | 1 | ||
VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 1 | ||
COVER-PUMP,OIL | 16142 | 16142-1146 | 1 | ||
COVER-PUMP,WATER | 16142A | 16142-1172 | 1 | ||
ROTOR-PUMP | 16154 | 16154-1115 | 1 | ||
BODY,OIL PUMP | 16160 | 16160-1280 | 1 | ||
SEAL-MECHANICAL,WATER | 49063 | 49063-1055 | 1 | ||
FILTER-OIL | 49065 | 49065-1078 | 1 | ||
IMPELLER | 59256 | 59256-1074 | 1 | ||
BOLT,6X22 | 92002 | 92002-1154 | 1 | ||
WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
WASHER,6.2X11X1 | 92022A | 92022-304 | 2 | ||
CLAMP | 92037 | 92037-1679 | 1 | ||
PIN,DOWEL,4X15.8 | 92042 | 92042-014 | 1 | ||
PIN,4.2X6X12 | 92043 | 92043-1262 | 1 | ||
PIN,6.2X8X14 | 92043A | 92043-1263 | 2 | ||
SEAL-OIL,OIL PUMP | 92049 | 92049-1336 | 1 | ||
RING-O,OIL FILTER | 92055 | 92055-1503 | 1 | ||
RING-O,WATER PUMP COVER | 92055A | 92055-1571 | 1 | ||
RING-O | 92055B | 92055-3018 | 1 | ||
BOLT,6X12 | 92151 | 92151-1133 | 2 | ||
BOLT,6X50 | 92151A | 92151-1234 | 1 | ||
BOLT,6X60 | 92151B | 92151-1235 | 2 | ||
WASHER | 92200 | 92200-1009 | 2 |
CIRCLIP-TYPE-C,11MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-DOWEL,4X8 | |
REF # | 551 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT,OIL PUMP | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-COMP,OIL PUMP,37T | |
REF # | 13216 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OIL PUMP,37T | |
REF # | 16085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-ASSY-OIL | |
REF # | 16097 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-ASSY-RELIEF | |
REF # | 16130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-PUMP,OIL | |
REF # | 16142 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-PUMP,WATER | |
REF # | 16142A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR-PUMP | |
REF # | 16154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY,OIL PUMP | |
REF # | 16160 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-MECHANICAL,WATER | |
REF # | 49063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER-OIL | |
REF # | 49065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
IMPELLER | |
REF # | 59256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X22 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.1X12X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,4X15.8 | |
REF # | 92042 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,4.2X6X12 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,6.2X8X14 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,OIL PUMP | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,OIL FILTER | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,WATER PUMP COVER | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X50 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X60 | |
REF # | 92151B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
