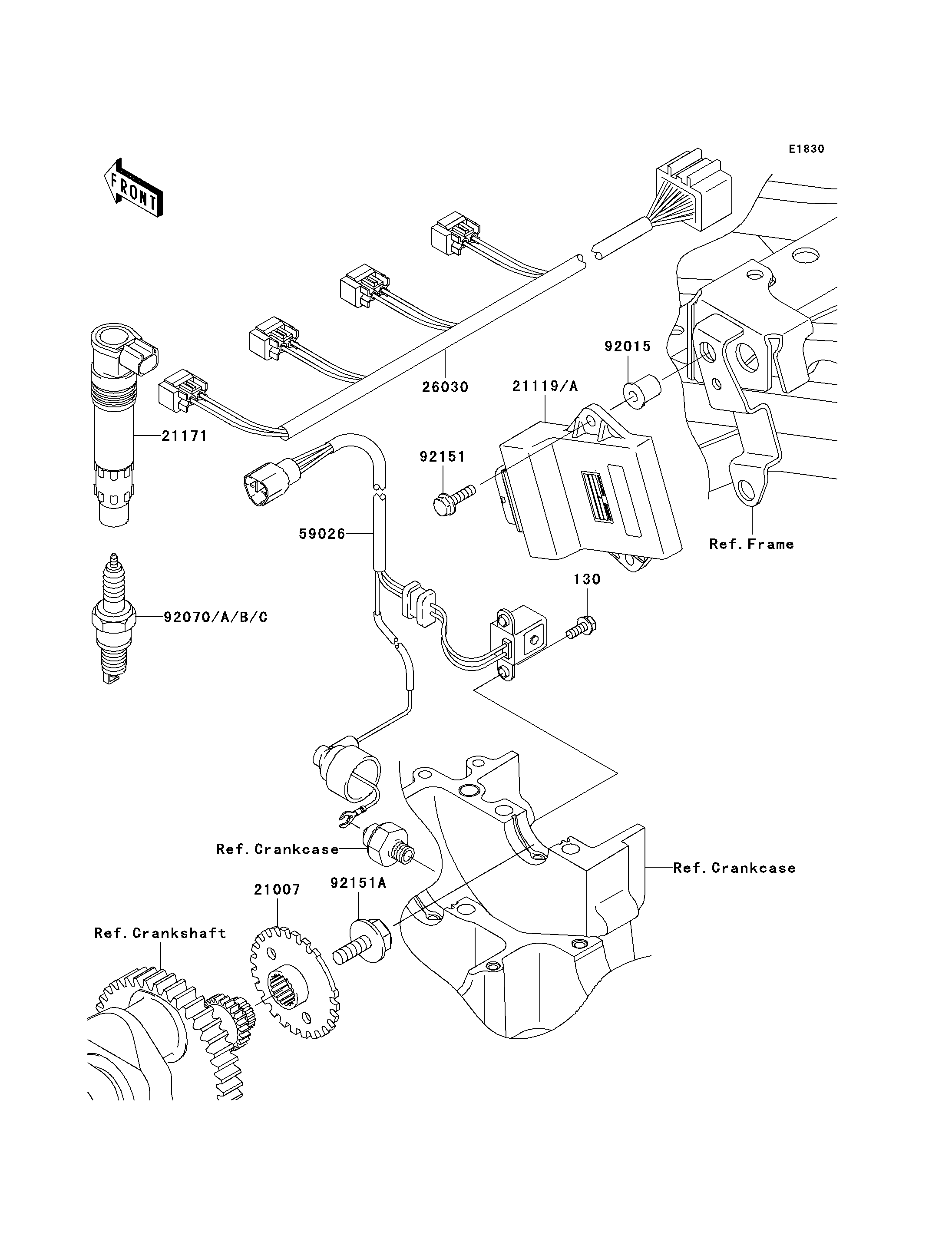

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
ROTOR 21007 21007-1359 1
COIL-ASSY-IGNITION 21171 21171-1265 4
HARNESS,IGNITION COIL 26030 26030-1956 1
COIL-PULSING 59026 59026-1142 1
NUT 92015 92015-1700 2
PLUG-SPARK,U27ETR(ND) 92070 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,U24ETR(ND) 92070A 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,CR9EK(NGK) 92070B 92070-1264 4
PLUG-SPARK,CR8EK(NGK) 92070C 92070-1265 4
BOLT,6X20 92151 92151-1226 2
BOLT,8X23 92151A 92151-1308 1
IGNITER 21119 21119-1620 1 CNUS
IGNITER 21119A 21119-1621 1 CA
