Parts Diagrams |
120
120
461
461
13107
13194
14079
16085
21040
21040
21163
21169
26011
27010
59051
92015
92048
92055
92055
92055A
92055B
92071
92150
92151
92151A

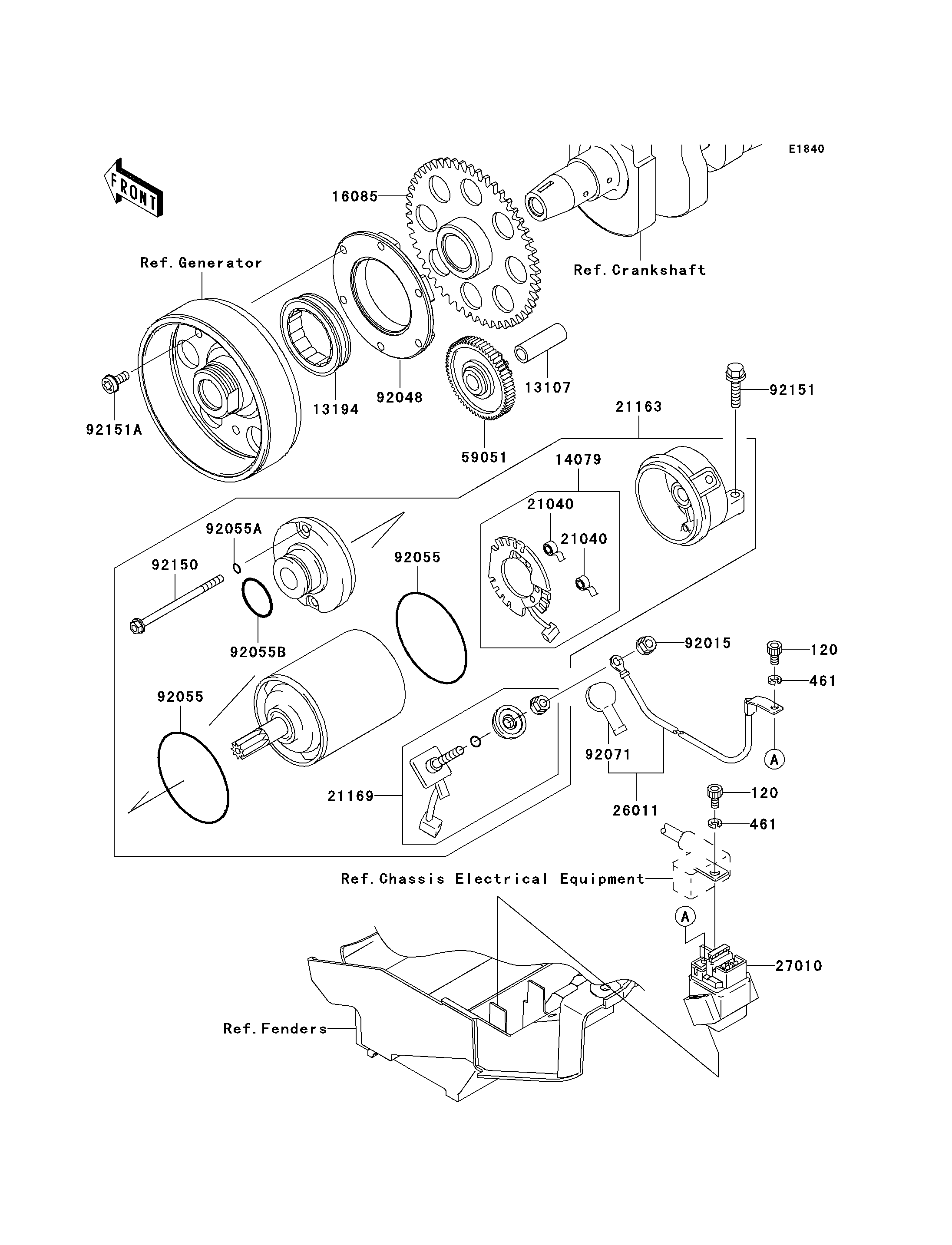

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120S0510 | 2 | ||
WASHER-SPRING,5MM,BLACK | 461 | 461K0500 | 2 | ||
SHAFT,IDLER GEAR | 13107 | 13107-1377 | 1 | ||
CLUTCH-ONEWAY | 13194 | 13194-1096 | 1 | ||
HOLDER-ASSY,CARBON BRUSH | 14079 | 14079-1082 | 1 | ||
GEAR,CLUTCH ONEWAY | 16085 | 16085-1303 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1051 | 2 | ||
STARTER-ELECTRIC | 21163 | 21163-1288 | 1 | ||
TERMINAL,STARTER | 21169 | 21169-1058 | 1 | ||
WIRE-LEAD,STARTER | 26011 | 26011-1689 | 1 | ||
SWITCH | 27010 | 27010-1380 | 1 | ||
GEAR-SPUR,IDLER | 59051 | 59051-1343 | 1 | ||
NUT | 92015 | 92015-1623 | 1 | ||
RACE,CLUTCH ONEWAY | 92048 | 92048-1102 | 1 | ||
RING-O,62MM | 92055 | 92055-1260 | 2 | ||
RING-O,4.5MM | 92055A | 92055-1261 | 2 | ||
RING-O,24.4MM | 92055B | 92055-1262 | 1 | ||
GROMMET,STARTER TERMINAL | 92071 | 92071-1120 | 1 | ||
BOLT | 92150 | 92150-1237 | 2 | ||
BOLT,6X25 | 92151 | 92151-1130 | 2 | ||
BOLT,6X14 | 92151A | 92151-1335 | 6 |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-SPRING,5MM,BLACK | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHAFT,IDLER GEAR | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLUTCH-ONEWAY | |
REF # | 13194 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-ASSY,CARBON BRUSH | |
REF # | 14079 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,CLUTCH ONEWAY | |
REF # | 16085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-BRUSH | |
REF # | 21040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STARTER-ELECTRIC | |
REF # | 21163 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TERMINAL,STARTER | |
REF # | 21169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WIRE-LEAD,STARTER | |
REF # | 26011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-SPUR,IDLER | |
REF # | 59051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RACE,CLUTCH ONEWAY | |
REF # | 92048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,62MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,4.5MM | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O,24.4MM | |
REF # | 92055B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,STARTER TERMINAL | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X14 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
