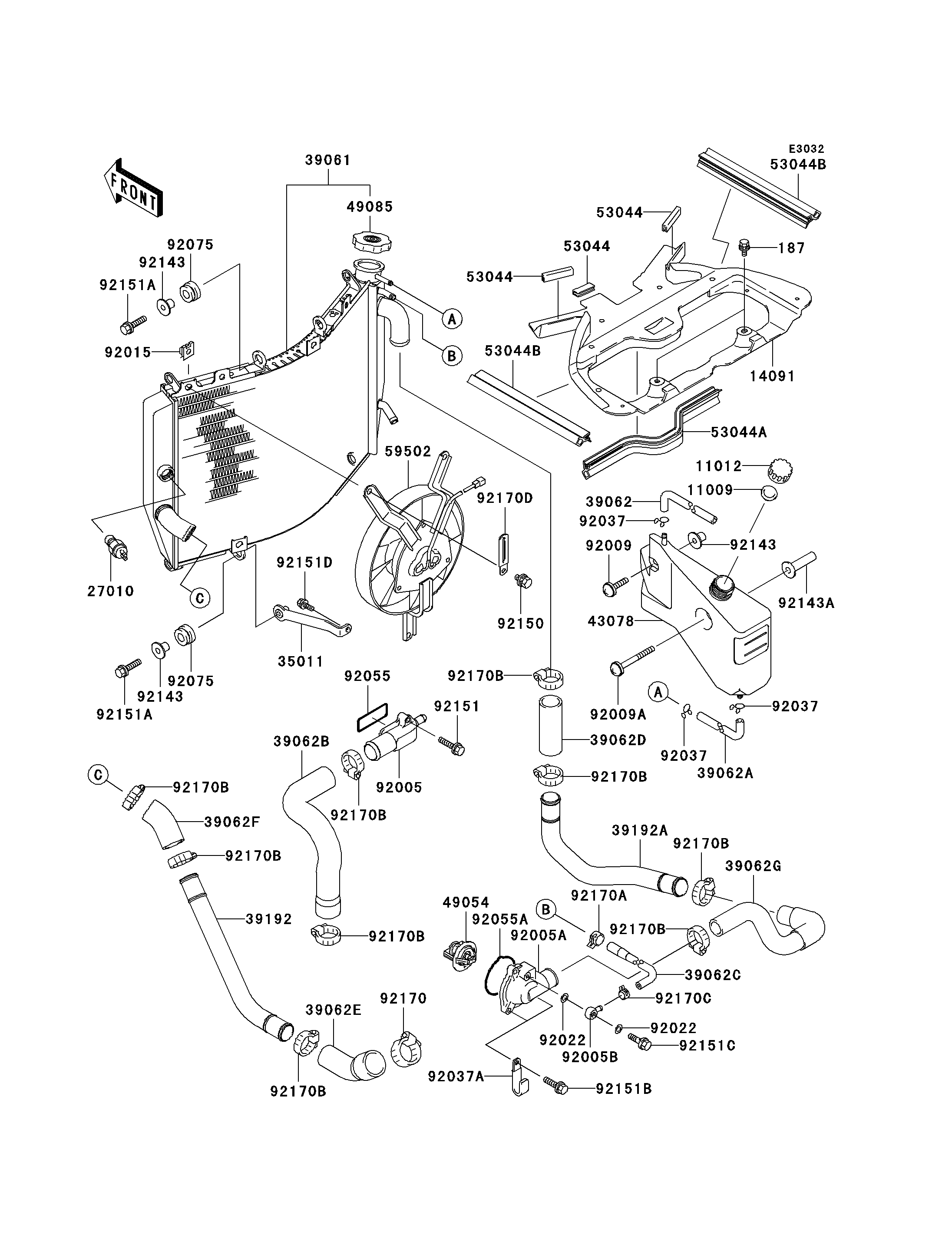

Parts Diagrams |
11009
11009
11012
11012
14091
14091
27010
27010
35011
35011
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39192
39192
39192A
39192A
43078
43078
49054
49054
49085
49085
53044
53044
53044
53044
53044
53044
53044A
53044A
53044B
53044B
53044B
53044B
59502
59502
92005
92005
92005A
92005A
92005B
92005B
92009
92009
92009A
92009A
92015
92015
92022
92022
92022
92022
92037
92037
92037
92037
92037
92037
92037A
92037A
92055
92055
92055A
92055A
92075
92075
92075
92075
92143
92143
92143
92143
92143
92143
92143A
92143A
92150
92150
92151
92151
92151A
92151A
92151A
92151A
187
187
92151B
92151B
92151C
92151C
92151D
92151D
92170
92170
92170A
92170A
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170B
92170C
92170C
92170D
92170D
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
CAP | 11012 | 11012-1084 | 1 | ||
COVER,SEAL | 14091 | 14091-1502 | 1 | ||
SWITCH,THERMOSTAT | 27010 | 27010-1304 | 1 | ||
STAY | 35011 | 35011-1882 | 1 | ||
RADIATOR-ASSY | 39061 | 39061-1248 | 1 | ||
HOSE-COOLING,RESERVOIR | 39062 | 39062-1718 | 1 | ||
HOSE-COOLING,RADIATOR-RESERVE | 39062A | 39062-1719 | 1 | ||
HOSE-COOLING,PUMP-CYLINDER | 39062B | 39062-1724 | 1 | ||
HOSE-COOLING,HEAD-RADIATOR | 39062C | 39062-1725 | 1 | ||
HOSE-COOLING,RADIATOR-PIPE | 39062D | 39062-1727 | 1 | ||
HOSE-COOLING,PIPE-PUMP | 39062E | 39062-1837 | 1 | ||
HOSE-COOLING,RADIATOR-PIPE | 39062F | 39062-1838 | 1 | ||
HOSE-COOLING,THERMOSTAT-PIPE | 39062G | 39062-1839 | 1 | ||
PIPE-WATER | 39192 | 39192-1112 | 1 | ||
PIPE-WATER | 39192A | 39192-1113 | 1 | ||
RESERVOIR | 43078 | 43078-1160 | 1 | ||
THERMOSTAT | 49054 | 49054-1067 | 1 | ||
CAP-ASSY-PRESSURE | 49085 | 49085-1067 | 1 | ||
TRIM | 53044 | 53044-1174 | 3 | ||
TRIM | 53044A | 53044-1180 | 1 | ||
TRIM,INNER COVER,LH,UPP | 53044B | 53044-1212 | 2 | ||
FAN-ASSY | 59502 | 59502-1125 | 1 | ||
FITTING | 92005 | 92005-1268 | 1 | ||
FITTING,THERMOSTAT CAP | 92005A | 92005-1331 | 1 | ||
FITTING | 92005B | 92005-1346 | 1 | ||
SCREW,6X25 | 92009 | 92009-1465 | 1 | ||
SCREW,6X55 | 92009A | 92009-1754 | 1 | ||
NUT | 92015 | 92015-1487 | 3 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 2 | ||
CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
CLAMP | 92037A | 92037-1993 | 2 | ||
RING-O | 92055 | 92055-1402 | 1 | ||
RING-O,THERMOSTAT CAP | 92055A | 92055-1572 | 1 | ||
DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
COLLAR | 92143 | 92143-1353 | 4 | ||
COLLAR | 92143A | 92143-1428 | 1 | ||
BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
BOLT,6X25 | 92151 | 92151-1130 | 2 | ||
BOLT,6X25 | 92151A | 92151-1225 | 3 | ||
BOLT-UPSET-WSP | 187 | 187C0614 | 2 | ||
BOLT,6X22 | 92151B | 92151-1236 | 3 | ||
BOLT,BANJO,6X20 | 92151C | 92151-1329 | 1 | ||
BOLT,6X16 | 92151D | 92151-1774 | 1 | ||
CLAMP | 92170 | 92170-1036 | 1 | ||
CLAMP | 92170A | 92170-1201 | 1 | ||
CLAMP,COOLING HOSE | 92170B | 92170-1284 | 9 | ||
CLAMP | 92170C | 92170-1493 | 1 | ||
CLAMP | 92170D | 92170-1514 | 1 |
GASKET,RESERVOIR TANK CAP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,SEAL | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,THERMOSTAT | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STAY | |
REF # | 35011 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RADIATOR-ASSY | |
REF # | 39061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RESERVOIR | |
REF # | 39062 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR-RESERVE | |
REF # | 39062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,PUMP-CYLINDER | |
REF # | 39062B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,HEAD-RADIATOR | |
REF # | 39062C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR-PIPE | |
REF # | 39062D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,PIPE-PUMP | |
REF # | 39062E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,RADIATOR-PIPE | |
REF # | 39062F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-COOLING,THERMOSTAT-PIPE | |
REF # | 39062G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-WATER | |
REF # | 39192 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-WATER | |
REF # | 39192A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
THERMOSTAT | |
REF # | 49054 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-ASSY-PRESSURE | |
REF # | 49085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
TRIM | |
REF # | 53044A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,INNER COVER,LH,UPP | |
REF # | 53044B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FAN-ASSY | |
REF # | 59502 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING,THERMOSTAT CAP | |
REF # | 92005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X25 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X55 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,THERMOSTAT CAP | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER,RUBBER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-UPSET-WSP | |
REF # | 187 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X22 | |
REF # | 92151B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,BANJO,6X20 | |
REF # | 92151C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92151D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,COOLING HOSE | |
REF # | 92170B |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
