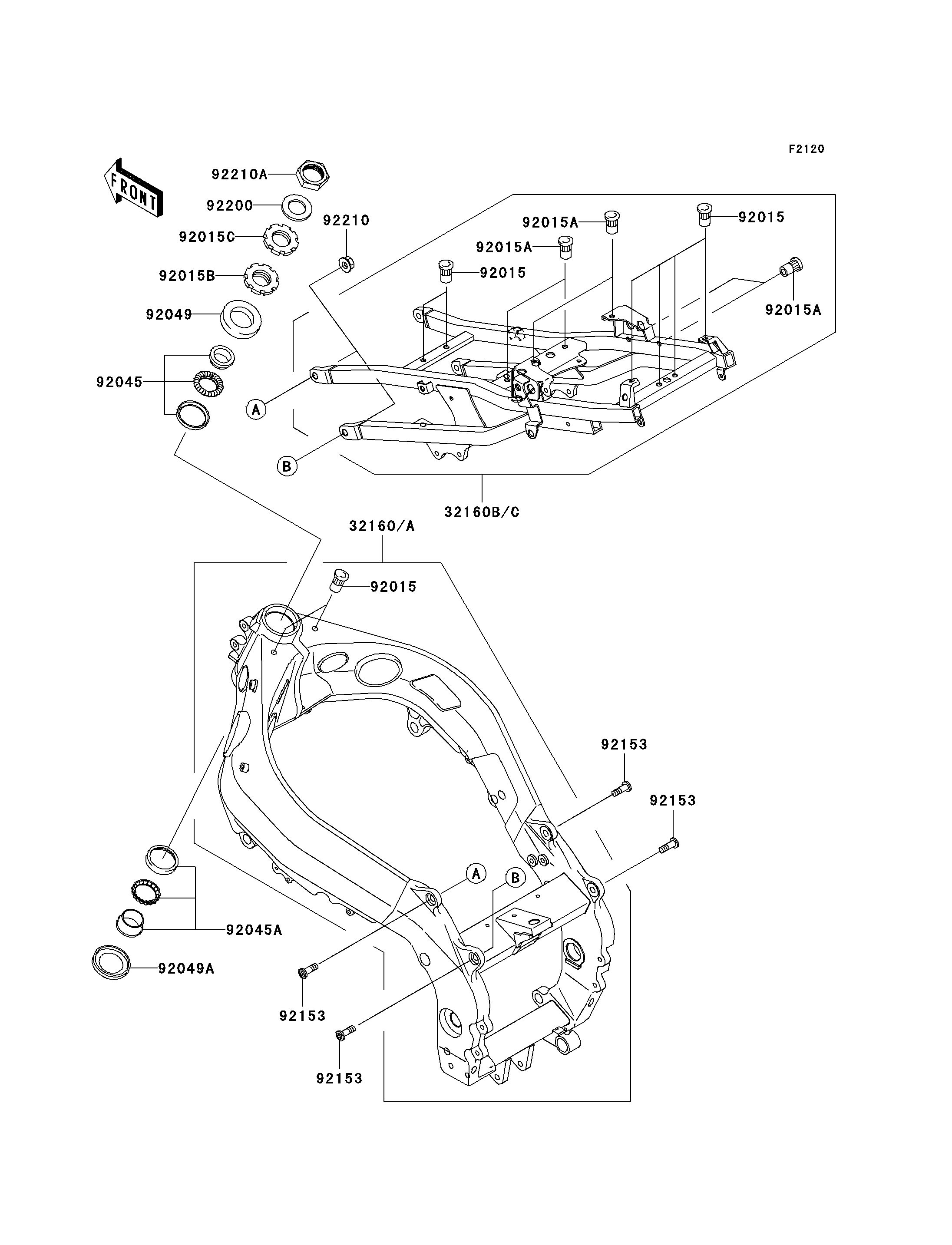

32160A
32160C
92015
92015
92015
92015A
92015A
92015A
92015B
92015C
92045
92045A
92049
92049A
92153
92153
92153
92153
92200
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,AL,FR,P.SILVER | 32160A | 32160-1767-458 | 1 | ||
| FRAME-COMP,AL,RR,P.SILVER | 32160C | 32160-1769-458 | 1 | ||
| NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 8 | ||
| NUT,POP,6MM,L=16.5 | 92015A | 92015-1792 | 6 | ||
| NUT,25MM | 92015B | 92015-1803 | 1 | ||
| NUT,25MM | 92015C | 92015-1810 | 1 | ||
| BEARING-BALL,SAC2547-2 | 92045 | 92045-1382 | 1 | ||
| BEARING-BALL,SF07A17PX1V1 | 92045A | 92045-1384 | 1 | ||
| SEAL-OIL,XMH33 70 6.4J-A | 92049 | 92049-1313 | 1 | ||
| SEAL-OIL,XMHE 43 55 4J | 92049A | 92049-1383 | 1 | ||
| BOLT,SOCKET,10X35 | 92153 | 92153-1164 | 4 | ||
| WASHER,22.5X36X3.2 | 92200 | 92200-1126 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 4 | ||
| NUT,22MM | 92210A | 92210-1202 | 1 |
| FRAME-COMP,AL,FR,P.SILVER | |
| REF # | 32160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,AL,RR,P.SILVER | |
| REF # | 32160C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=16.5 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,SAC2547-2 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,SF07A17PX1V1 | |
| REF # | 92045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMH33 70 6.4J-A | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE 43 55 4J | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X35 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,22.5X36X3.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,22MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
