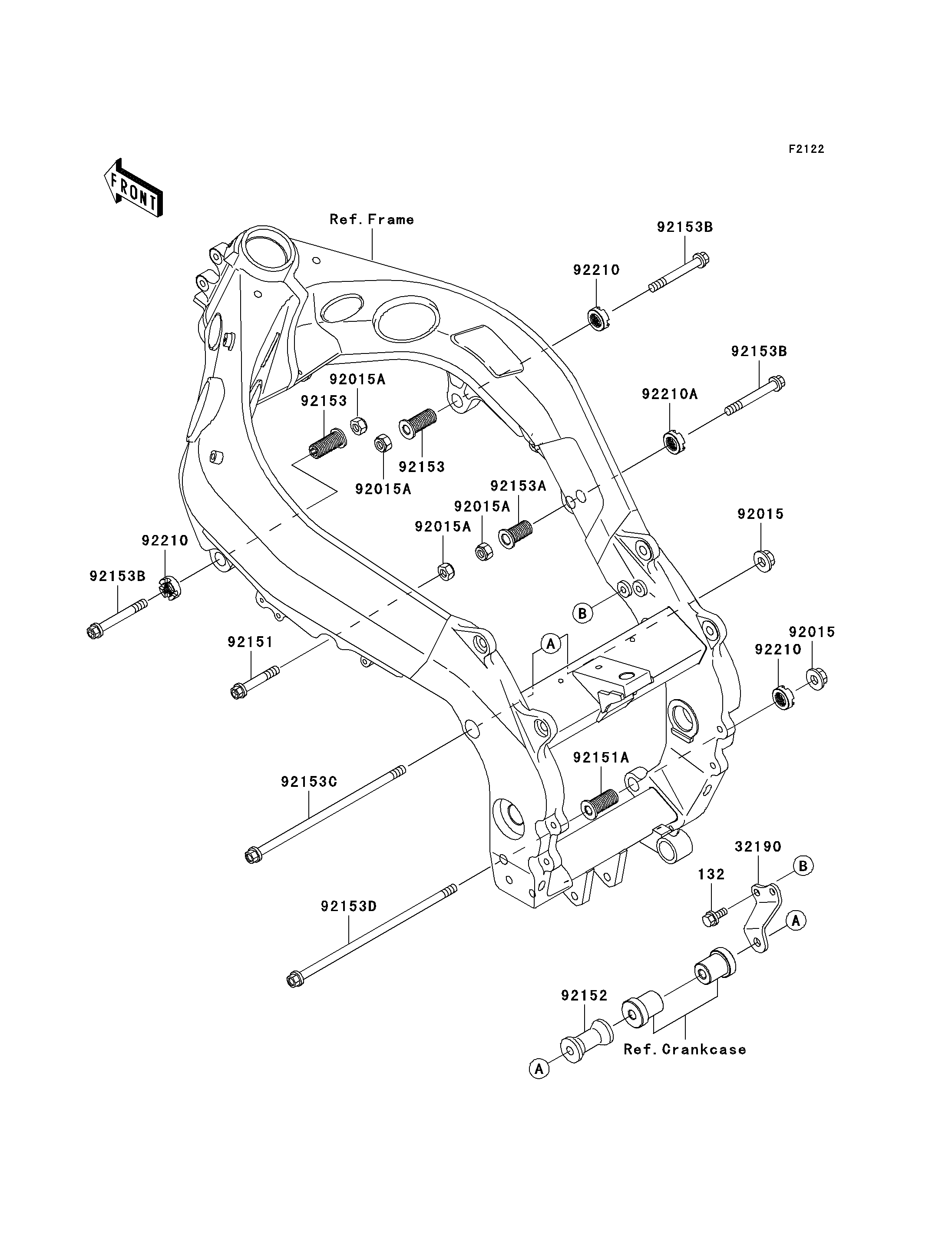

Parts Diagrams |
132
32190
92015
92015
92015A
92015A
92015A
92015A
92151
92151A
92152
92153
92153
92153A
92153B
92153B
92153B
92153C
92153D
92210
92210
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132J0820 | 2 | ||
BRACKET-ENGINE,RR,UPP,RH | 32190 | 32190-1105 | 1 | ||
NUT,FLANGED,10MM | 92015 | 92015-1180 | 2 | ||
NUT,LOCK,10MM,BLACK | 92015A | 92015-1189 | 4 | ||
BOLT,FLANGED,10X57 | 92151 | 92151-1607 | 1 | ||
BOLT,ENGINE MOUNT,18MM | 92151A | 92151-1609 | 1 | ||
COLLAR,ENGINE MOUNT,RR,UPP,LH | 92152 | 92152-1099 | 1 | ||
BOLT,ENGINE MOUNT,18MM | 92153 | 92153-1098 | 2 | ||
BOLT,ENGINE MOUNT,20MM | 92153A | 92153-1160 | 1 | ||
BOLT,FLANGED,10X80 | 92153B | 92153-1162 | 3 | ||
BOLT,FLANGED,10X252 | 92153C | 92153-1182 | 1 | ||
BOLT,FLANGED,10X267 | 92153D | 92153-1183 | 1 | ||
NUT,18MM | 92210 | 92210-1203 | 3 | ||
NUT,20MM | 92210A | 92210-1365 | 1 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-ENGINE,RR,UPP,RH | |
REF # | 32190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM,BLACK | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X57 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,ENGINE MOUNT,18MM | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,ENGINE MOUNT,RR,UPP,LH | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,ENGINE MOUNT,18MM | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,ENGINE MOUNT,20MM | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X80 | |
REF # | 92153B |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X252 | |
REF # | 92153C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X267 | |
REF # | 92153D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,18MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,20MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
