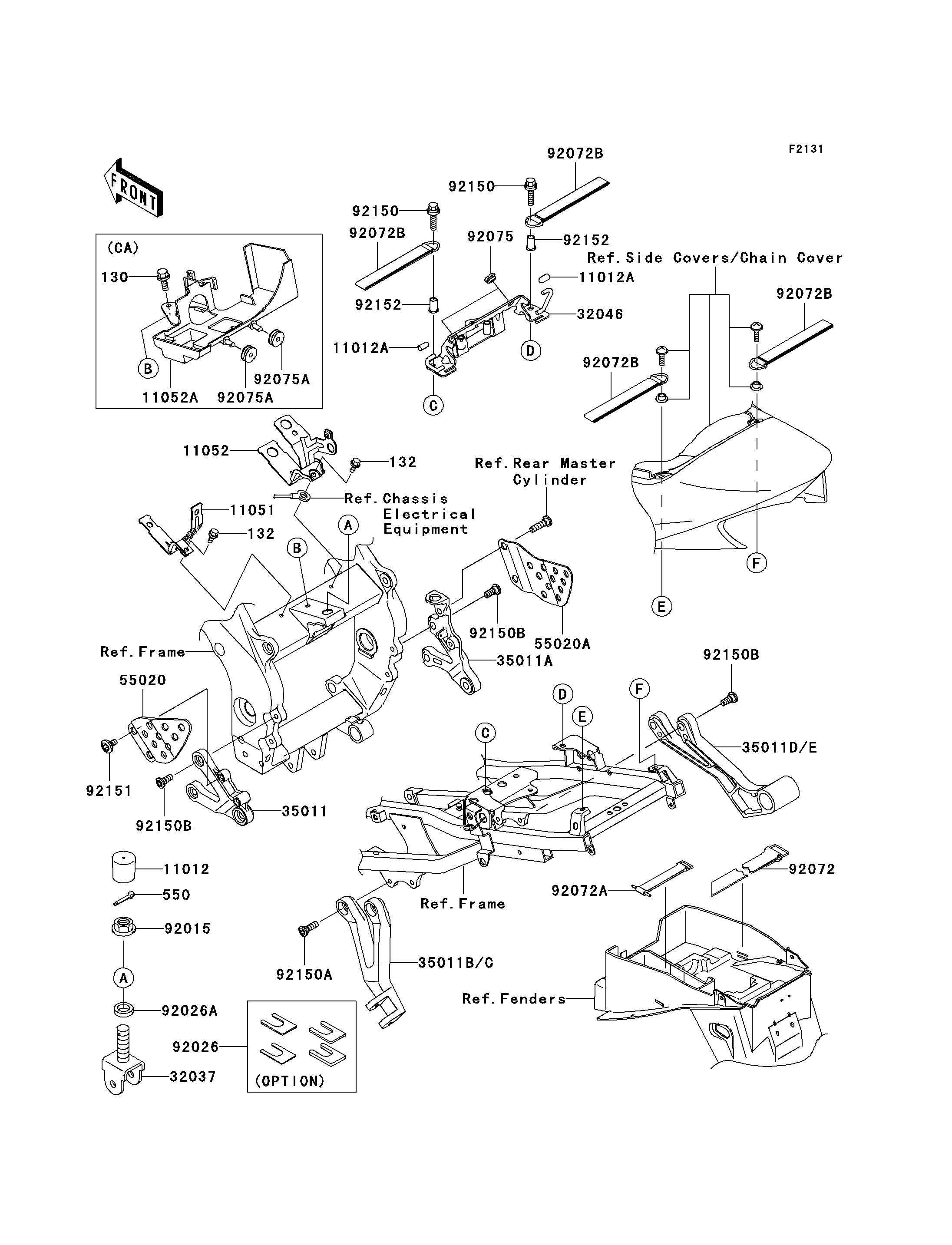

Parts Diagrams |
132
132
550
11012
11012A
11012A
11051
11052
32037
32046
35011
35011A
35011C
35011E
55020
55020A
92015
92026
92026A
92072
92072A
92072B
92072B
92072B
92072B
92075
92150
92150
92150A
92150B
92150B
92150B
92151
92152
92152
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132J0612 | 2 | ||
PIN-COTTER,4.0X25 | 550 | 550D4025 | 1 | ||
CAP,RR STAY END | 11012 | 11012-1290 | 1 | ||
CAP,BUNGEE CORD HOOK | 11012A | 11012-1589 | 2 | ||
BRACKET,FUEL FILTER | 11051 | 11051-1497 | 1 | ||
BRACKET,FUEL PUMP | 11052 | 11052-1842 | 1 | ||
BRACKET-SHOCKABSORBER | 32037 | 32037-1822 | 1 | ||
BRACKET-SEAT,REAR SEAT | 32046 | 32046-1507 | 1 | ||
STAY,FR STEP,LH | 35011 | 35011-1874 | 1 | ||
STAY,FR STEP,RH | 35011A | 35011-1875 | 1 | ||
STAY,RR STEP,LH,P.SILVER | 35011C | 35011-1878-458 | 1 | ||
STAY,RR STEP,RH,P.SILVER | 35011E | 35011-1879-458 | 1 | ||
GUARD,FR STEP STAY,LH | 55020 | 55020-1627 | 1 | ||
GUARD,FR STEP STAY,RH | 55020A | 55020-1628 | 1 | ||
NUT,FLANGED,16MM | 92015 | 92015-1881 | 1 | ||
SPACER,SET | 92026 | 92026-1586 | 1 | (OPTION) | |
SPACER,16.5X26X6 | 92026A | 92026-1594 | 1 | ||
BAND,L=470 | 92072 | 92072-1331 | 1 | ||
BAND,TOOL | 92072A | 92072-1349 | 1 | ||
BAND,L=122 | 92072B | 92072-1363 | 4 | ||
DAMPER | 92075 | 92075-1011 | 2 | ||
BOLT,FLANGED,6X30 | 92150 | 92150-1486 | 2 | ||
BOLT,SOCKET,8X25 | 92150A | 92150-1837 | 2 | ||
BOLT,SOCKET,8X20 | 92150B | 92150-1839 | 6 | ||
BOLT,6MM | 92151 | 92151-1334 | 2 | ||
COLLAR | 92152 | 92152-1108 | 2 | ||
BOLT-FLANGED | 130 | 130J0612 | 1 | CA | |
BRACKET,EVAPO | 11052A | 11052-1844 | 1 | CA | |
DAMPER | 92075A | 92075-1067 | 2 | CA |
