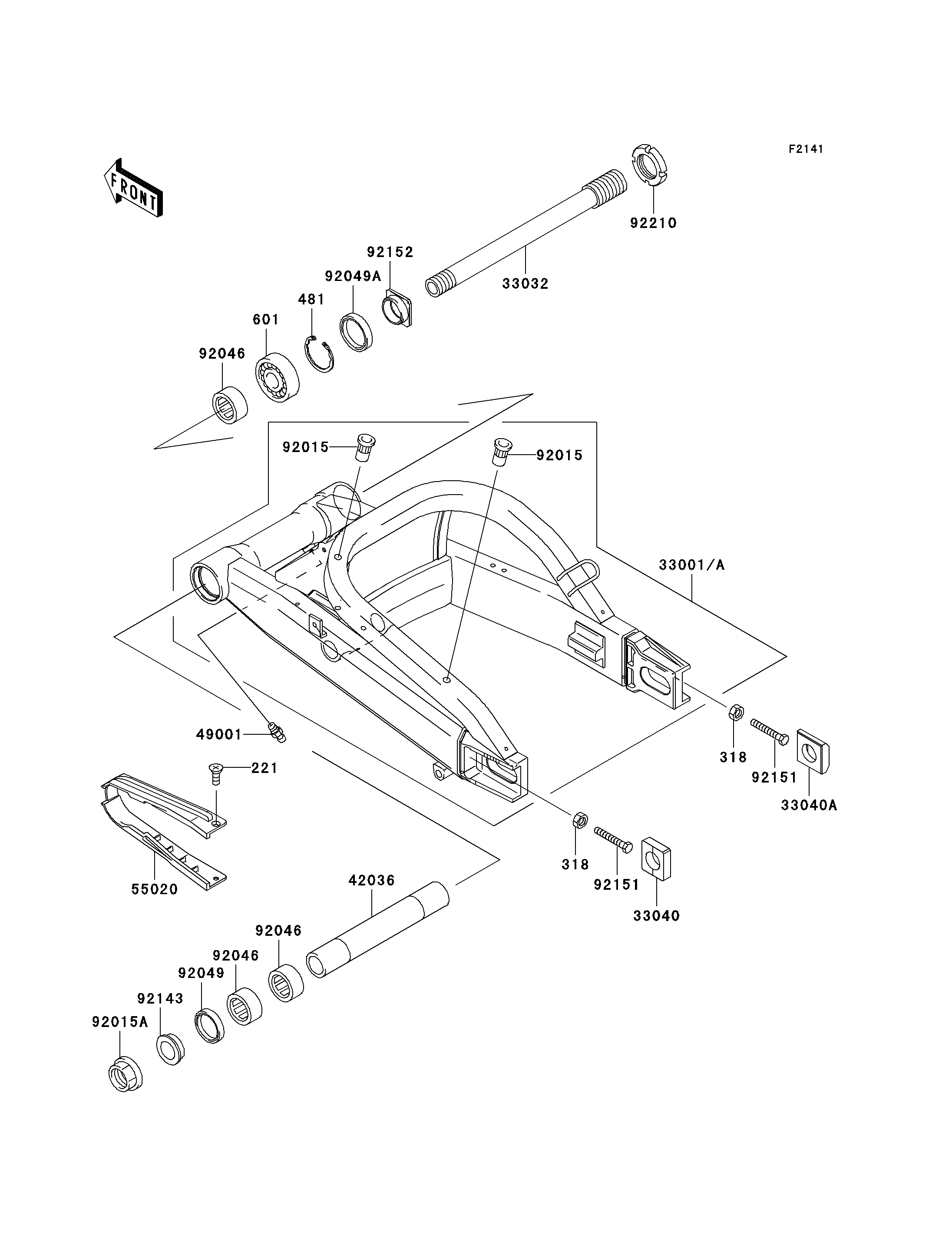

Parts Diagrams |
221
318
318
481
601
33001A
33032
33040
33040A
42036
49001
55020
92015
92015
92015A
92046
92046
92046
92049
92049A
92143
92151
92151
92152
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-CSK-CROS,5X8 | 221 | 221C0508 | 2 | ||
NUT-HEX-SMALL,8MM | 318 | 318G0800 | 2 | ||
CIRCLIP-TYPE-C,47MM | 481 | 481J4700 | 1 | ||
BEARING-BALL,#6005U | 601 | 601B6005U | 1 | ||
ARM-COMP-SWING,P.SILVER | 33001A | 33001-1621-458 | 1 | ||
SHAFT-SWING ARM | 33032 | 33032-1173 | 1 | ||
ADJUSTER-CHAIN | 33040 | 33040-1114 | 1 | ||
ADJUSTER-CHAIN,RH | 33040A | 33040-1180 | 1 | ||
SLEEVE,SWING ARM,L=224.5 | 42036 | 42036-1312 | 1 | ||
NIPPLE-GREASE | 49001 | 49001-1051 | 1 | ||
GUARD,CHAIN | 55020 | 55020-1700 | 1 | ||
NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 2 | ||
NUT,FLANGED,25MM | 92015A | 92015-1845 | 1 | ||
BEARING-NEEDLE,BM3520 | 92046 | 92046-1205 | 3 | ||
SEAL-OIL,MHA 35 47 5 | 92049 | 92049-1381 | 1 | ||
SEAL-OIL,KC38X47X6 | 92049A | 92049-1521 | 1 | ||
COLLAR,SWING ARM,L=12.5 | 92143 | 92143-1481 | 1 | ||
BOLT,8X55 | 92151 | 92151-1578 | 2 | ||
COLLAR,SWING ARM,L=14.5 | 92152 | 92152-1445 | 1 | ||
NUT,32MM | 92210 | 92210-1205 | 1 |
SCREW-CSK-CROS,5X8 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-HEX-SMALL,8MM | |
REF # | 318 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-C,47MM | |
REF # | 481 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,#6005U | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-COMP-SWING,P.SILVER | |
REF # | 33001A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-SWING ARM | |
REF # | 33032 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN | |
REF # | 33040 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ADJUSTER-CHAIN,RH | |
REF # | 33040A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,SWING ARM,L=224.5 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NIPPLE-GREASE | |
REF # | 49001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUARD,CHAIN | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,POP,6MM,L=15 | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,25MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,BM3520 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHA 35 47 5 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,KC38X47X6 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,SWING ARM,L=12.5 | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,8X55 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,SWING ARM,L=14.5 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,32MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
