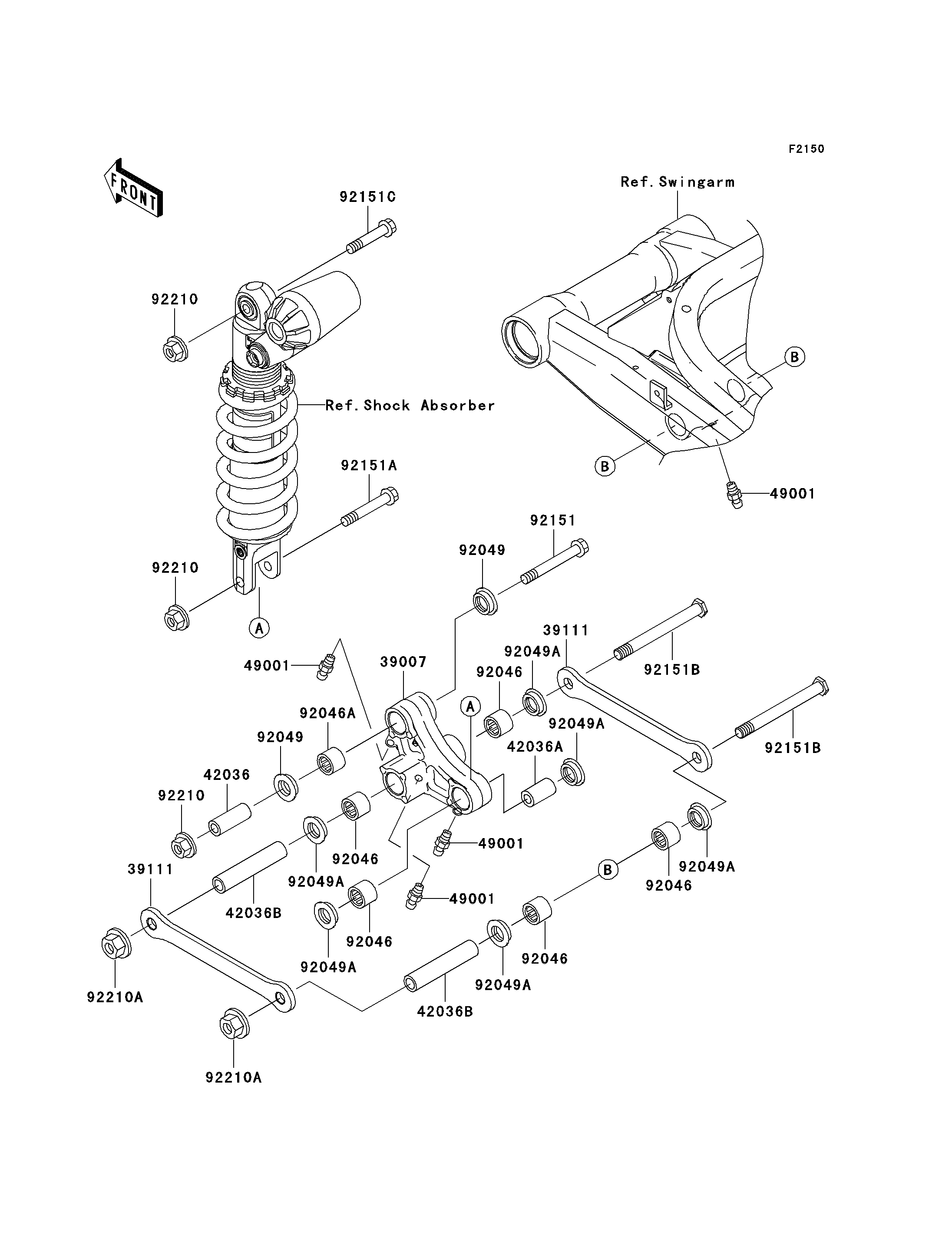

Parts Diagrams |
39007
39111
39111
42036
42036A
42036B
42036B
49001
49001
49001
49001
92046
92046
92046
92046
92046
92046A
92049
92049
92049A
92049A
92049A
92049A
92049A
92049A
92151
92151A
92151B
92151B
92151C
92210
92210
92210
92210A
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
ARM-SUSP,UNI TRAK | 39007 | 39007-1302 | 1 | ||
ROD-TIE,SUSPENSION | 39111 | 39111-1177 | 2 | ||
SLEEVE,10.1X17X44.5 | 42036 | 42036-1342 | 1 | ||
SLEEVE,10.1X18X32 | 42036A | 42036-1344 | 1 | ||
SLEEVE,12.1X18X90 | 42036B | 42036-1360 | 2 | ||
NIPPLE-GREASE | 49001 | 49001-1051 | 4 | ||
BEARING-NEEDLE,SFYZM182417 | 92046 | 92046-1272 | 5 | ||
BEARING-NEEDLE,SFYZM172425 | 92046A | 92046-1273 | 1 | ||
SEAL-OIL,MHA17245.7F | 92049 | 92049-1223 | 2 | ||
SEAL-OIL,KCR MF018N1 | 92049A | 92049-1493 | 6 | ||
BOLT,FLANGED,10X77 | 92151 | 92151-1600 | 1 | ||
BOLT,FLANGED,10X62 | 92151A | 92151-1601 | 1 | ||
BOLT,12X117 | 92151B | 92151-1684 | 2 | ||
BOLT,FLANGED,10X51 | 92151C | 92151-1798 | 1 | ||
NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 3 | ||
NUT,LOCK,FLANGED,12MM | 92210A | 92210-1150 | 2 |
ARM-SUSP,UNI TRAK | |
REF # | 39007 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-TIE,SUSPENSION | |
REF # | 39111 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SLEEVE,10.1X17X44.5 | |
REF # | 42036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,10.1X18X32 | |
REF # | 42036A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SLEEVE,12.1X18X90 | |
REF # | 42036B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NIPPLE-GREASE | |
REF # | 49001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,SFYZM182417 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,SFYZM172425 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,MHA17245.7F | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,KCR MF018N1 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X77 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X62 | |
REF # | 92151A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,12X117 | |
REF # | 92151B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X51 | |
REF # | 92151C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,10MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,LOCK,FLANGED,12MM | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
