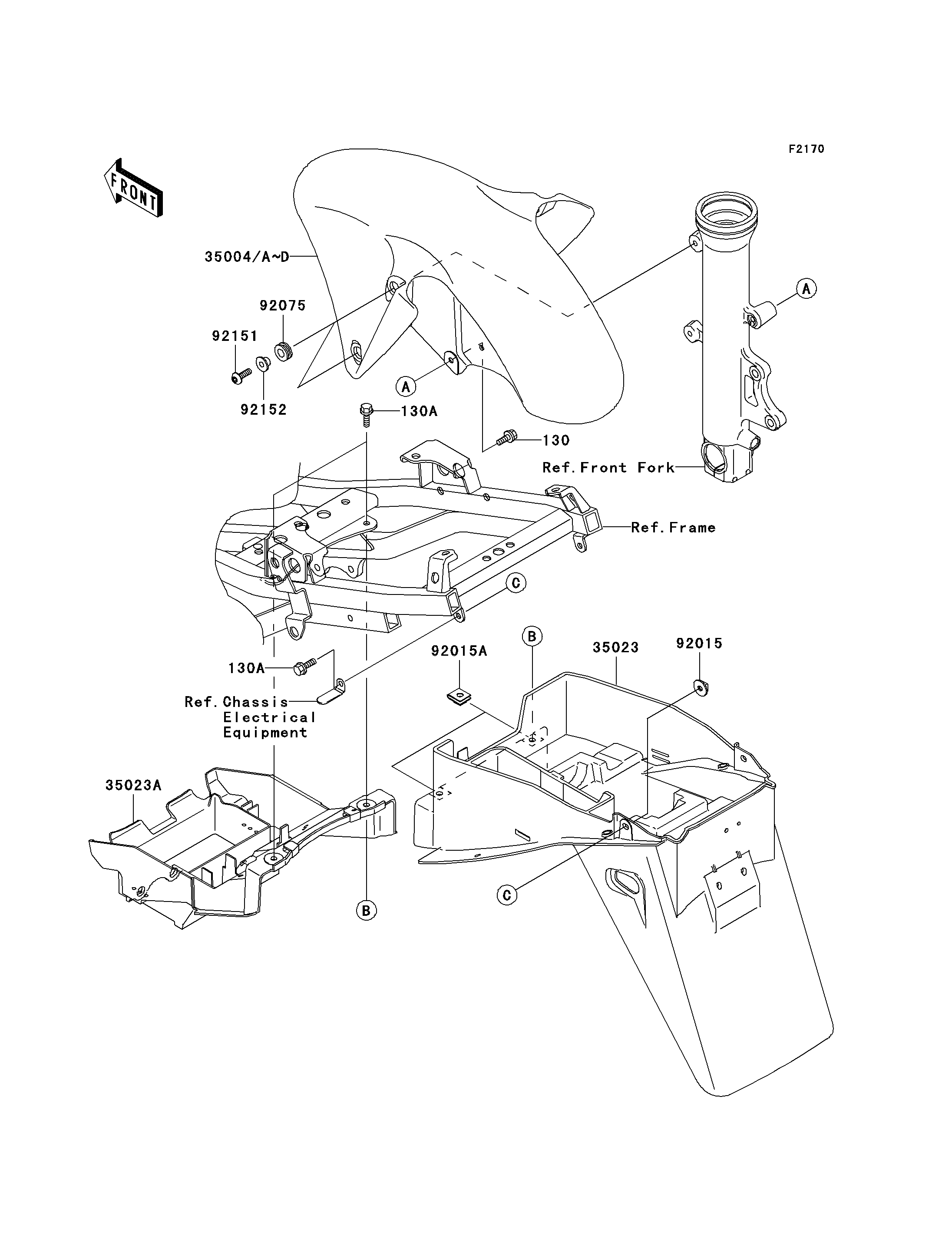

130
130A
130A
35004C
35004D
35023
35023A
92015
92015A
92075
92151
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130H0616 2
BOLT-FLANGED 130A 130J0620 4
FENDER-FRONT,M.S.SILVER 35004C 35004-1447-474 1
FENDER-FRONT,L.GREEN 35004D 35004-1447-7F 1
FENDER-REAR,RR 35023 35023-1578 1
FENDER-REAR,FR 35023A 35023-1580 1
NUT,6MM 92015 92015-1321 2
NUT,CLAMP,6MM 92015A 92015-1531 2
DAMPER 92075 92075-1634 4
BOLT,SOCKET,6X20 92151 92151-1750 4
COLLAR 92152 92152-1449 4
FENDER-FRONT,M.C.BLUE 35004B 35004-1447-469 1 CN
