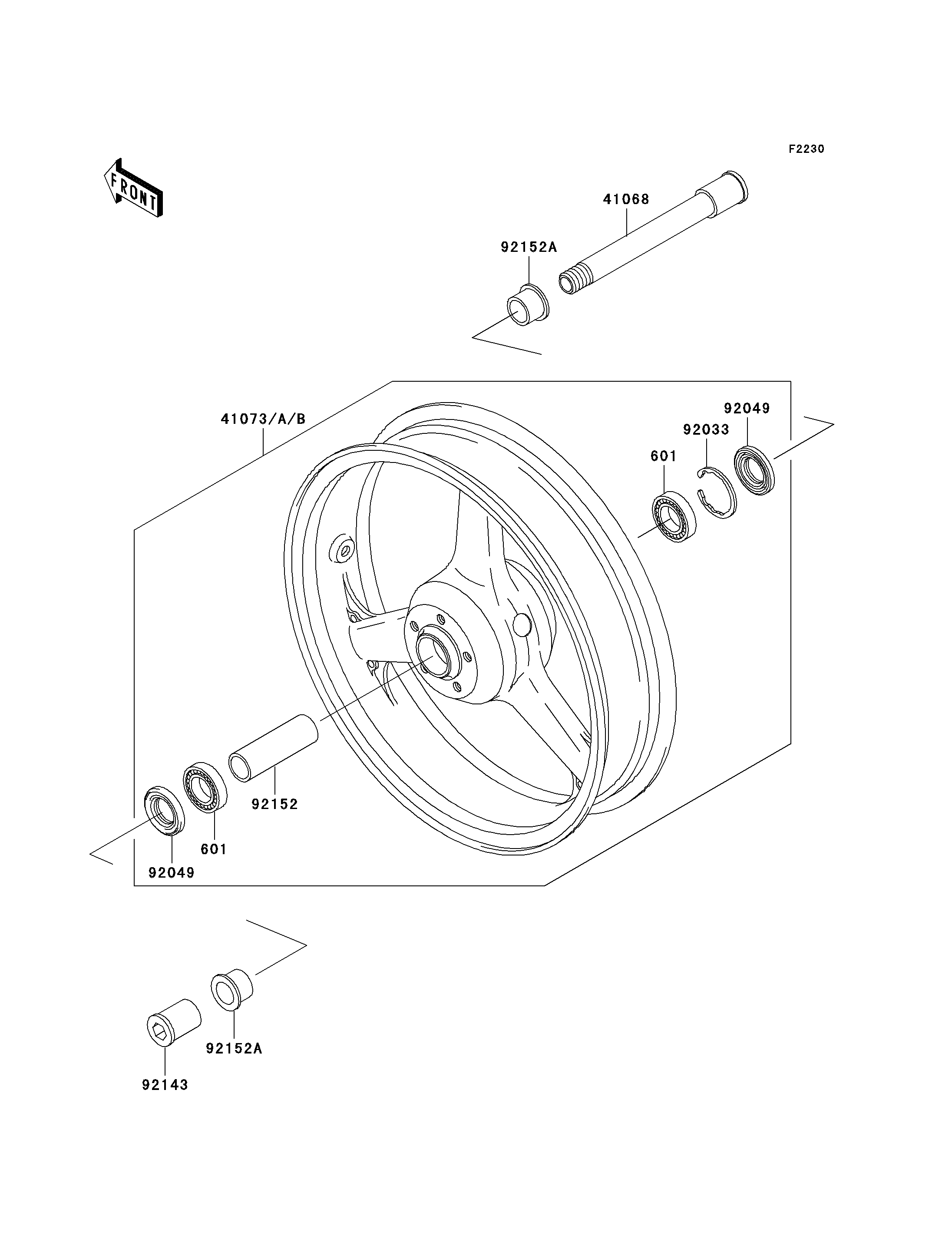

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6005UU 601 601B6005UU 2
AXLE,FR 41068 41068-1426 1
WHEEL-ASSY,FR,C.GRAY 41073A 41073-1633-DH 1
RING-SNAP,47MM 92033 92033-1042 1
SEAL-OIL,BJN 32 47 5 92049 92049-1377 2
COLLAR,FR AXLE,LH,L=44.5 92143 92143-1478 1
COLLAR,FR HUB,L=98 92152 92152-1079 1
COLLAR,FR AXLE,L=21.5 92152A 92152-1251 2
