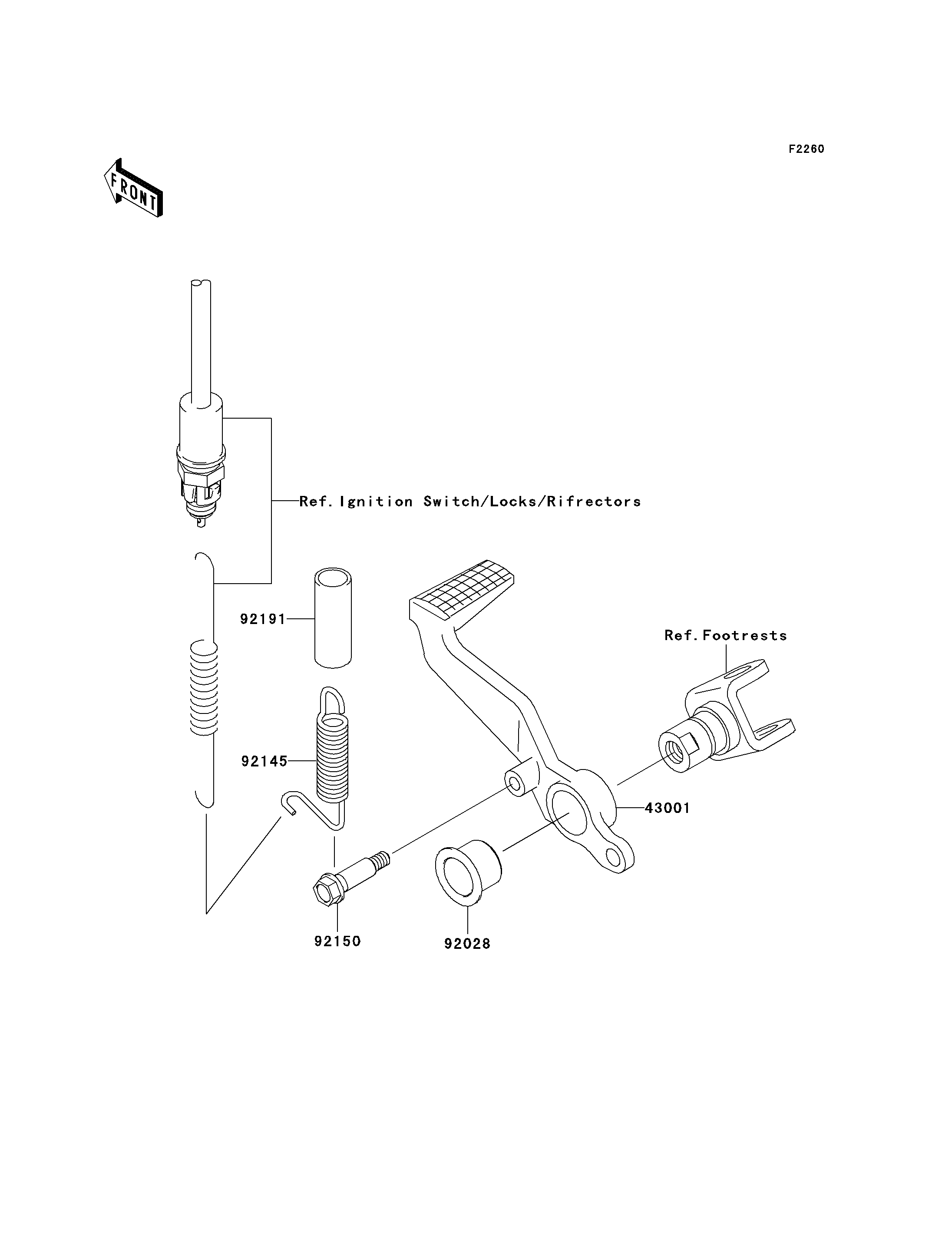

2003 Ninja® ZX-9R - Brake Pedal/Torque Link

43001
92028
92145
92150
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1393 1
BUSHING 92028 92028-1576 1
SPRING,BRAKE PEDAL RETURN 92145 92145-1090 1
BOLT 92150 92150-1439 1
TUBE,12X15X40 92191 92191-1739 1
