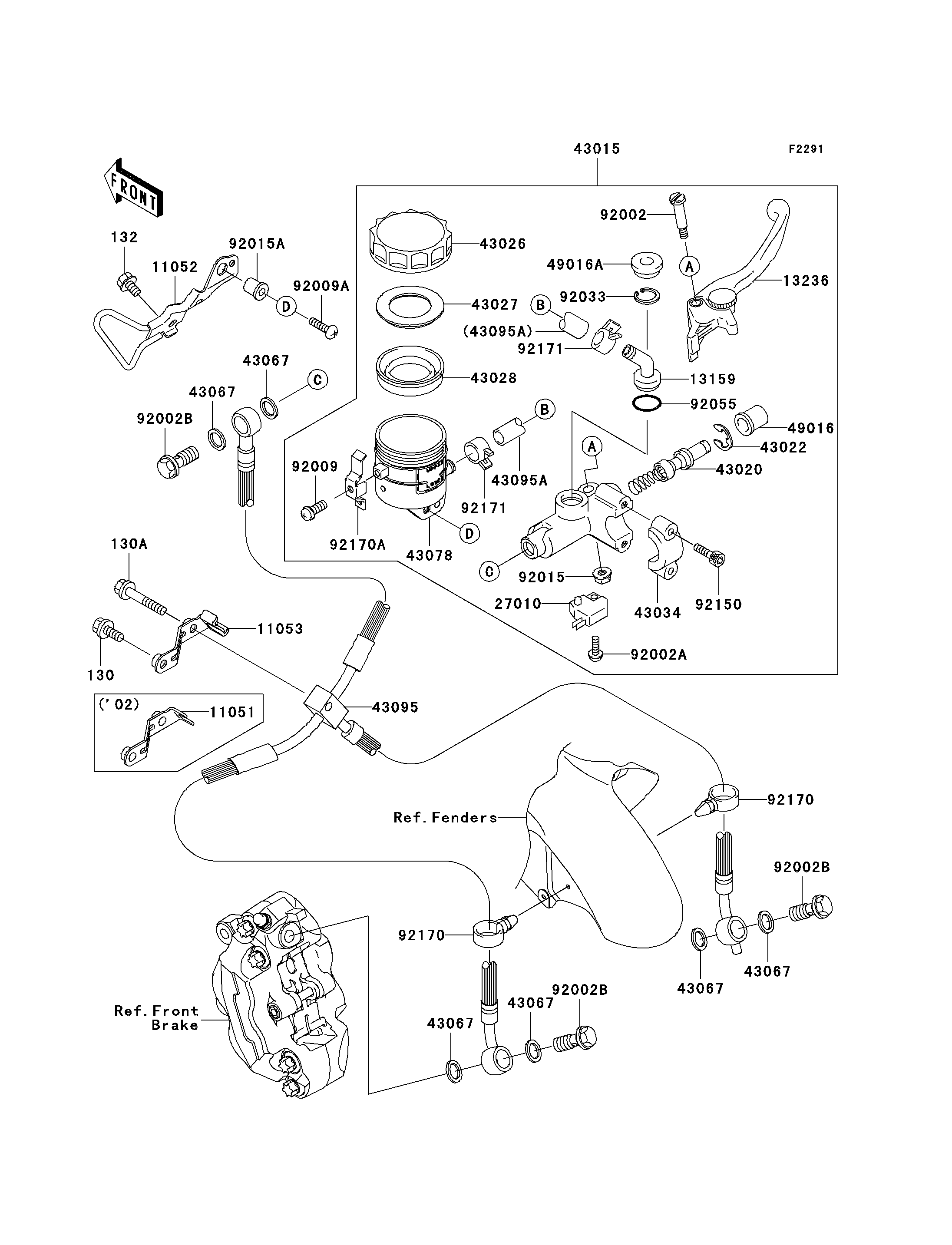

2003 Ninja® ZX™-9R - Front Master Cylinder
130
130A
132
11052
11053
13159
13236
27010
43015
43020
43022
43026
43027
43028
43034
43067
43067
43067
43067
43067
43067
43078
43095
43095A
49016
49016A
92002
92002A
92002B
92002B
92002B
92009
92009A
92015
92015A
92033
92055
92150
92170
92170
92170A
92171
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 1 | ||
BOLT-FLANGED,6X35 | 130A | 130J0635 | 1 | ||
BOLT-FLANGED-SMALL,6X10 | 132 | 132J0610 | 1 | ||
BRACKET,RESERVOIR TANK | 11052 | 11052-1636 | 1 | ||
BRACKET,BRAKE HOSE | 11053 | 11053-0034 | 1 | ||
CONNECTOR | 13159 | 13159-1061 | 1 | ||
LEVER-COMP,FRONT BRAKE | 13236 | 13236-1326 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1691 | 1 | ||
PISTON-COMP-BRAKE,FR | 43020 | 43020-1054 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1016 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 6 | ||
RESERVOIR | 43078 | 43078-1099 | 1 | ||
HOSE-BRAKE,FR | 43095 | 43095-1247 | 1 | ||
HOSE-BRAKE,FR MASTER CYLINDER | 43095A | 43095-1277 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
COVER-SEAL | 49016A | 49016-1147 | 1 | ||
BOLT,LEVER SET,BLACK | 92002 | 92002-1322 | 1 | ||
BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
BOLT,OIL,L=23 | 92002B | 92002-1888 | 3 | ||
SCREW | 92009 | 92009-1570 | 1 | ||
SCREW,5X18 | 92009A | 92009-1655 | 1 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | ||
NUT,WELL,5MM | 92015A | 92015-1757 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
BOLT | 92150 | 92150-1328 | 2 | ||
CLAMP | 92170 | 92170-1067 | 2 | ||
CLAMP | 92170A | 92170-1090 | 1 | ||
CLAMP,HOSE | 92171 | 92171-1529 | 2 |
