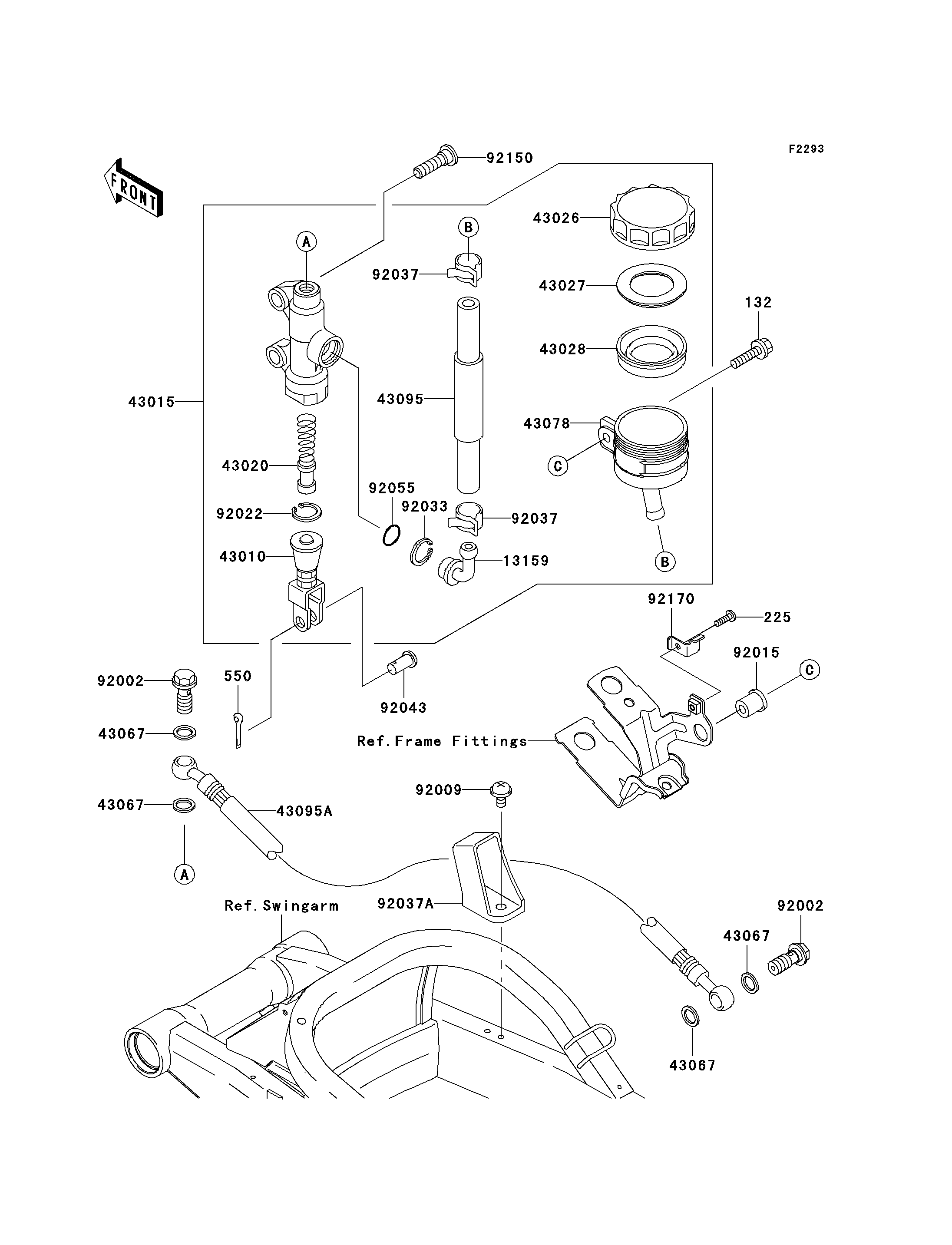

2003 Ninja® ZX™-9R - Rear Master Cylinder
132
225
550
13159
43010
43015
43020
43026
43027
43028
43067
43067
43067
43067
43078
43095
43095A
92002
92002
92009
92015
92022
92033
92037
92037
92037A
92043
92055
92150
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132J0625 | 1 | ||
SCREW-PAN-WSP-CROS | 225 | 225C0412 | 1 | ||
PIN-COTTER,2.0X15 | 550 | 550D2015 | 1 | ||
CONNECTOR,RR MASTER CYLINDER | 13159 | 13159-1052 | 1 | ||
ROD-ASSY-BRAKE | 43010 | 43010-1062 | 1 | ||
CYLINDER-ASSY-MASTER,RR | 43015 | 43015-1610 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1094 | 1 | ||
CAP-BRAKE | 43026 | 43026-1051 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1051 | 1 | ||
DIAPHRAGM,MASTER CYLINDER | 43028 | 43028-1057 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
RESERVOIR,RR MASTER CYLINDER | 43078 | 43078-1082 | 1 | ||
HOSE-BRAKE,RR MASTER CYLINDER | 43095 | 43095-1115 | 1 | ||
HOSE-BRAKE,RR | 43095A | 43095-1272 | 1 | ||
BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
SCREW,6X10 | 92009 | 92009-1661 | 1 | ||
NUT | 92015 | 92015-1700 | 1 | ||
WASHER,CIRCRIP | 92022 | 92022-1601 | 1 | ||
RING-SNAP,20.5MM | 92033 | 92033-1186 | 1 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1547 | 2 | ||
CLAMP,HOSE | 92037A | 92037-1896 | 1 | ||
PIN,8MM | 92043 | 92043-1303 | 1 | ||
RING-O,MASTER CYLINDER | 92055 | 92055-1251 | 1 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1843 | 2 | ||
CLAMP,RESERVE TANK CAP | 92170 | 92170-1879 | 1 |
