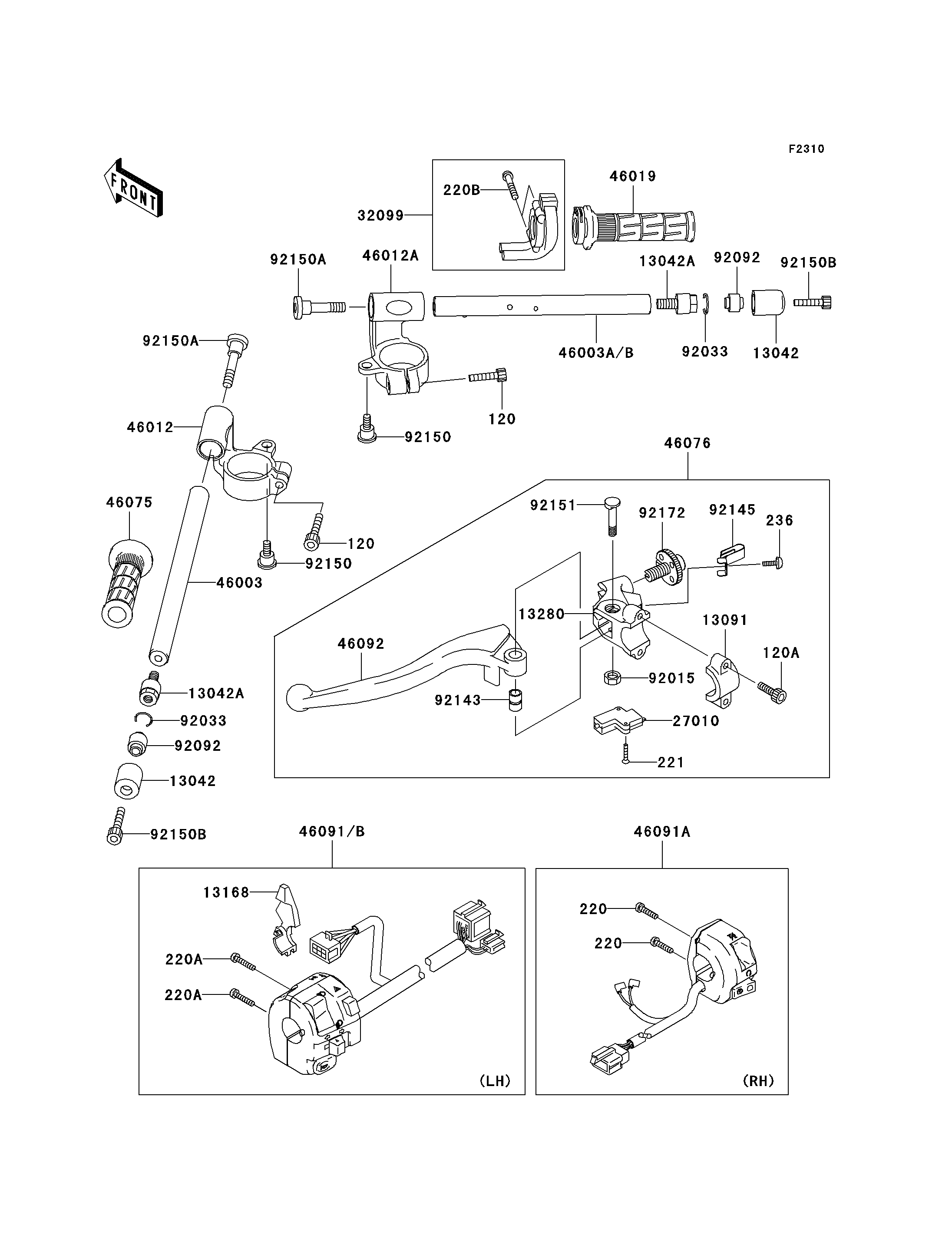

Parts Diagrams |
120
120
120A
220
220
220A
220A
220B
221
236
13042
13042
13042A
13042A
13091
13168
13280
27010
32099
46003
46003B
46012
46012A
46019
46075
46076
46091A
46091B
46092
92015
92033
92033
92092
92092
92143
92145
92150
92150
92150A
92150A
92150B
92150B
92151
92172
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,8X30 | 120 | 120P0830 | 2 | ||
BOLT-SOCKET,6X20 | 120A | 120S0620 | 2 | ||
SCREW-PAN-CROS | 220 | 220C0522 | 2 | ||
SCREW-PAN-CROS | 220A | 220C0525 | 2 | ||
SCREW-PAN-CROS | 220B | 220C0535 | 2 | ||
SCREW-CSK-CROS | 221 | 221C0316 | 2 | ||
SCREW-PAN-WSP-CROS,4X10 | 236 | 236C0410 | 1 | ||
WEIGHT,HANDLE | 13042 | 13042-1133 | 2 | ||
WEIGHT,HANDLE | 13042A | 13042-1152 | 2 | ||
HOLDER,CLUTCH LEVER | 13091 | 13091-1624 | 1 | ||
LEVER,CHOKE | 13168 | 13168-1516 | 1 | ||
HOLDER,CLUTCH LEVER | 13280 | 13280-1160 | 1 | ||
SWITCH,CLUTCH | 27010 | 27010-1447 | 1 | ||
CASE,THROTTLE CABLE | 32099 | 32099-1193 | 1 | ||
HANDLE,LH | 46003 | 46003-1584 | 1 | ||
HANDLE,RH | 46003B | 46003-1588 | 1 | ||
HOLDER-HANDLE,LH | 46012 | 46012-1298 | 1 | ||
HOLDER-HANDLE,RH | 46012A | 46012-1299 | 1 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1095 | 1 | ||
GRIP,LH | 46075 | 46075-1144 | 1 | ||
LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1248 | 1 | ||
HOUSING-ASSY-CONTROL,RH | 46091A | 46091-1823 | 1 | ||
HOUSING-ASSY-CONTROL,LH | 46091B | 46091-1857 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1211 | 1 | ||
NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
RING-SNAP,OD=22.2 | 92033 | 92033-1102 | 2 | ||
BUSHING-RUBBER,HANDLE | 92092 | 92092-1075 | 2 | ||
COLLAR | 92143 | 92143-1351 | 1 | ||
SPRING | 92145 | 92145-1286 | 1 | ||
BOLT,6MM | 92150 | 92150-1090 | 2 | ||
BOLT,SOCKET,10X37 | 92150A | 92150-1469 | 2 | ||
BOLT,SOCKET,8X30 | 92150B | 92150-1604 | 2 | ||
BOLT | 92151 | 92151-1523 | 1 | ||
SCREW,ADJUST NUT | 92172 | 92172-1060 | 1 |
