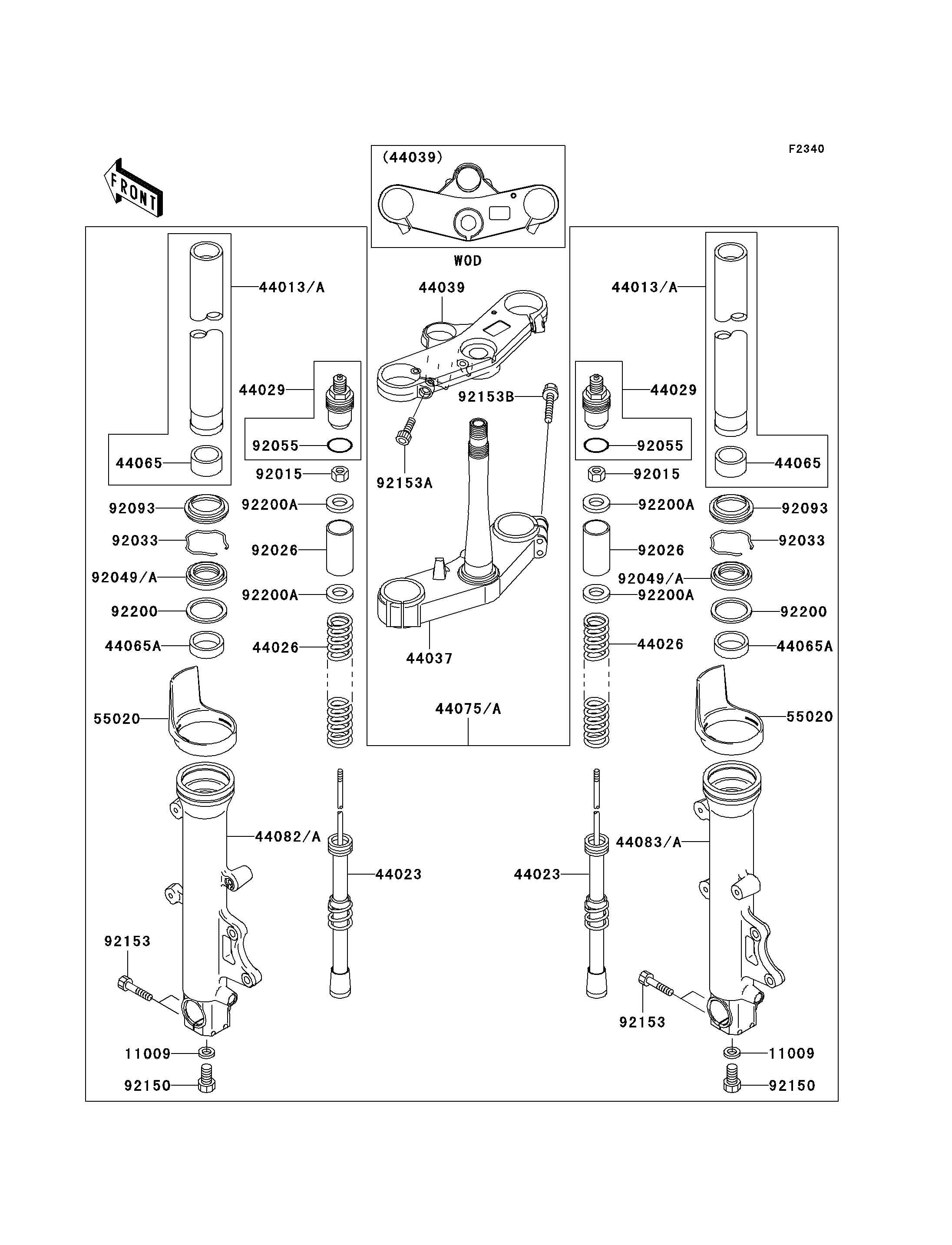

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,FORK CYLINDER BOLT | 11009 | 11009-1127 | 2 | ||
PIPE-FORK INNER | 44013 | 44013-0001 | 2 | ||
CYLINDER-SET-FORK | 44023 | 44023-1165 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-1741 | 2 | ||
SEAT-FORK SPRING | 44029 | 44029-0001 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-1441 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-1321 | 1 | ||
BUSHING-FRONT FORK | 44065 | 44065-1129 | 2 | ||
BUSHING-FRONT FORK | 44065A | 44065-1130 | 2 | ||
DAMPER-SET-FORK | 44075A | 44075-1184 | 1 | ||
PIPE-COMP-LEFT FORK OUT | 44082 | 44082-0001 | 1 | ||
PIPE-COMP-RIGHT FORK OUT | 44083 | 44083-0001 | 1 | ||
GUARD,FORK | 55020 | 55020-1778 | 2 | ||
NUT | 92015 | 92015-1905 | 2 | ||
SPACER,FORK,L=90 | 92026 | 92026-1564 | 2 | ||
RING-SNAP | 92033 | 92033-1264 | 2 | ||
SEAL-OIL | 92049 | 92049-0002 | 2 | ||
RING-O | 92055 | 92055-1140 | 2 | ||
SEAL,FORK OUTER TUBE | 92093 | 92093-1473 | 2 | ||
BOLT,12X22 | 92150 | 92150-1398 | 2 | ||
BOLT,SOCKET,8X40 | 92153 | 92153-1178 | 4 | ||
BOLT,SOCKET,8X25 | 92153A | 92153-1179 | 2 | ||
BOLT,FLANGED,8X40 | 92153B | 92153-1193 | 4 | ||
WASHER | 92200 | 92200-1006 | 2 | ||
WASHER | 92200A | 92200-1420 | 4 |
