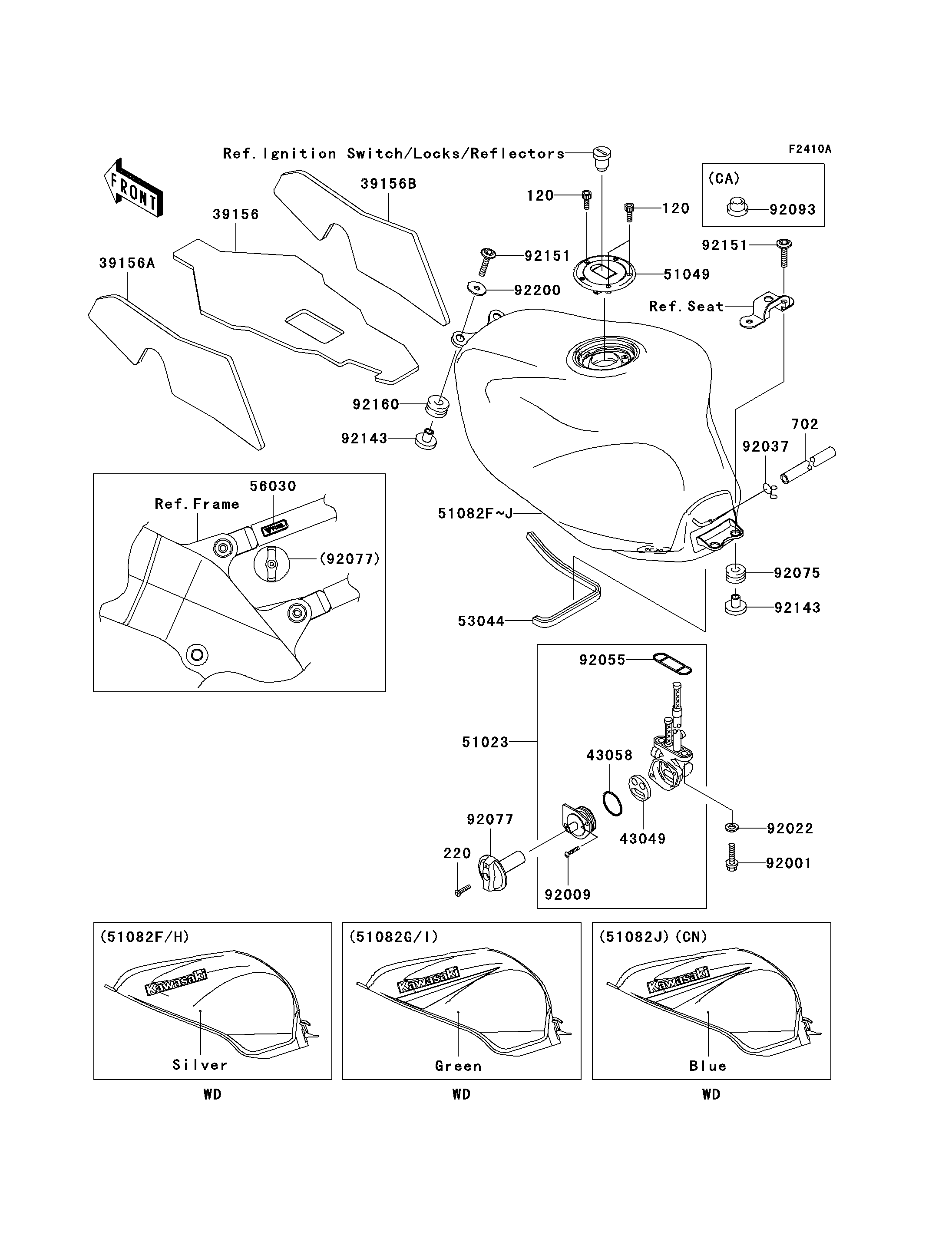

2003 Ninja® ZX™-9R - Fuel Tank(ZX900-F2)
39156
39156
39156A
39156A
39156B
39156B
43049
43049
43058
43058
51023
51023
51049
51049
53044
53044
56030
56030
92001
92001
92009
92009
92022
92022
92037
92037
92055
92055
92075
92075
92077
92077
120
120
120
120
220
220
702
702
92143
92143
92143
92143
92151
92151
92151
92151
92160
92160
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PAD,FUEL TANK,CNT | 39156 | 39156-1600 | 1 | ||
PAD,FUEL TANK,LH | 39156A | 39156-1601 | 1 | ||
PAD,FUEL TANK,RH | 39156B | 39156-1602 | 1 | ||
PACKING,TAP VALVE | 43049 | 43049-1099 | 1 | ||
RING,TAP LEVER | 43058 | 43058-1083 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1318 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1127 | 1 | ||
TRIM,L=490 | 53044 | 53044-1209 | 1 | ||
LABEL,FUEL TAP | 56030 | 56030-1195 | 1 | ||
BOLT,6X25 | 92001 | 92001-1524 | 2 | ||
SCREW,3X8 | 92009 | 92009-1386 | 2 | ||
WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
CLAMP,TUBE | 92037 | 92037-010 | 1 | ||
RING-O,FUEL TAP PACKING | 92055 | 92055-1112 | 1 | ||
DAMPER | 92075 | 92075-209 | 2 | ||
KNOB,FUEL TAP | 92077 | 92077-1123 | 1 | ||
BOLT-SOCKET | 120 | 120S0516 | 3 | ||
SCREW-PAN-CROSS | 220 | 220C0416 | 1 | ||
TUBE-RUBBER,6X520 | 702 | 702A06520 | 1 | ||
COLLAR | 92143 | 92143-1515 | 4 | ||
BOLT,SOCKET,6X30 | 92151 | 92151-1605 | 4 | ||
DAMPER | 92160 | 92160-1162 | 2 | ||
WASHER,6.5X22X1.6 | 92200 | 92200-1087 | 2 | ||
TANK-COMP-FUEL,M.S.SILVER | 51082F | 51082-5397-474 | 1 | CNUS | |
TANK-COMP-FUEL,L.GREEN | 51082G | 51082-5398-7F | 1 | CNUS | |
TANK-COMP-FUEL,M.S.SILVER | 51082H | 51082-5412-474 | 1 | CA | |
TANK-COMP-FUEL,L.GREEN | 51082I | 51082-5413-7F | 1 | CA | |
TANK-COMP-FUEL,M.C.BLUE | 51082J | 51082-5427-469 | 1 | CN | |
SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA |
PAD,FUEL TANK,CNT | |
REF # | 39156 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,LH | |
REF # | 39156A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PAD,FUEL TANK,RH | |
REF # | 39156B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING,TAP VALVE | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING,TAP LEVER | |
REF # | 43058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TAP-ASSY,FUEL | |
REF # | 51023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-TANK,FUEL | |
REF # | 51049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TRIM,L=490 | |
REF # | 53044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LABEL,FUEL TAP | |
REF # | 56030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X25 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,3X8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.2X11X1.5 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,FUEL TAP PACKING | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
KNOB,FUEL TAP | |
REF # | 92077 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROSS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,6X520 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92143 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X30 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,6.5X22X1.6 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TANK-COMP-FUEL,M.S.SILVER | |
REF # | 51082F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
TANK-COMP-FUEL,L.GREEN | |
REF # | 51082G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CNUS |
REMARKS |
TANK-COMP-FUEL,M.S.SILVER | |
REF # | 51082H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TANK-COMP-FUEL,L.GREEN | |
REF # | 51082I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
TANK-COMP-FUEL,M.C.BLUE | |
REF # | 51082J |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CN |
REMARKS |
SEAL,FUEL TANK CAP | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | CA |
REMARKS |
