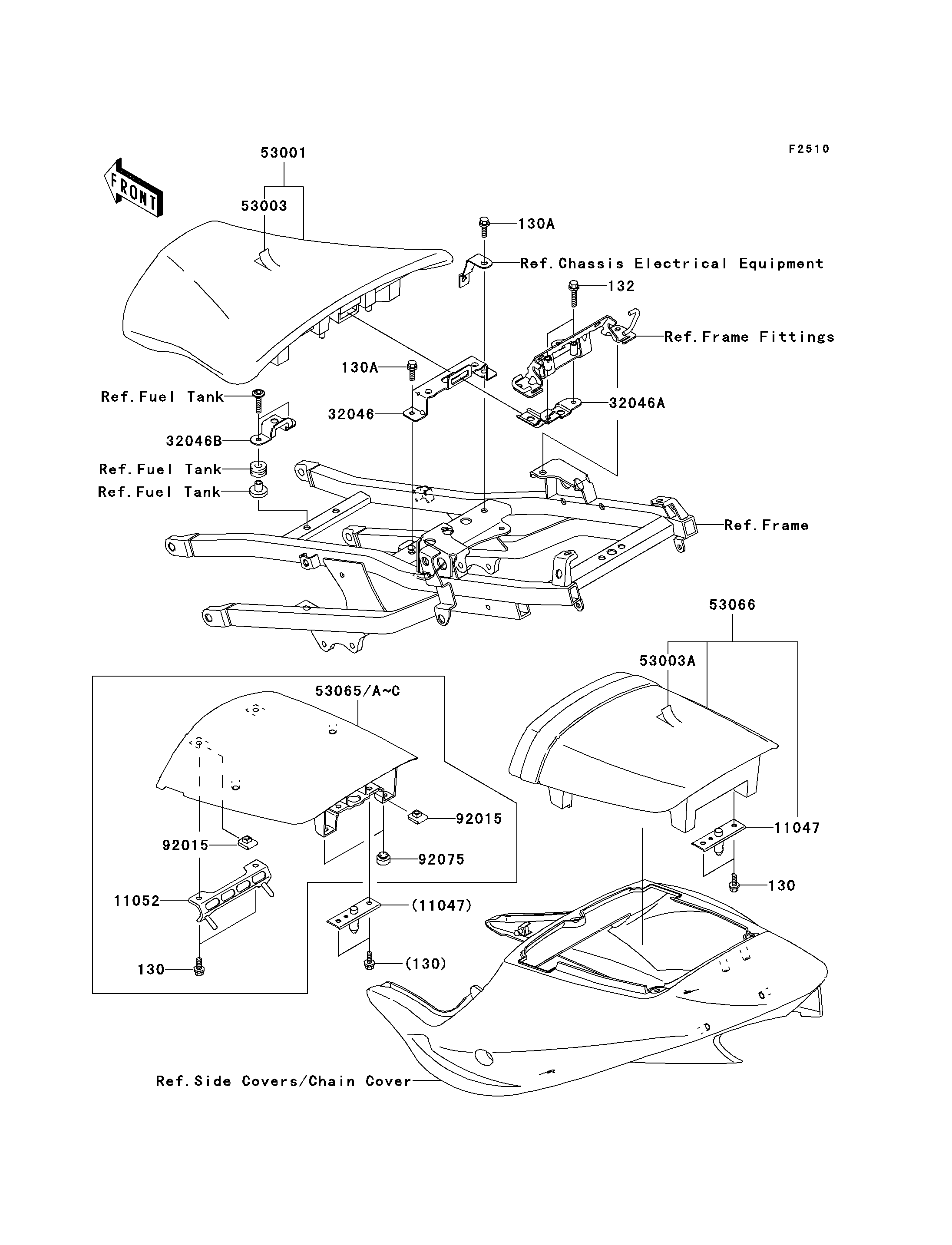

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 4 | ||
BOLT-FLANGED | 130A | 130J0620 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132J0630 | 2 | ||
BRACKET,SEAT | 11047 | 11047-1638 | 1 | ||
BRACKET,SEAT COVER | 11052 | 11052-1887 | 1 | ||
BRACKET-SEAT,RR,LWR | 32046 | 32046-1506 | 1 | ||
BRACKET-SEAT,RR,UPP | 32046A | 32046-1508 | 1 | ||
BRACKET-SEAT,FR | 32046B | 32046-1516 | 1 | ||
SEAT-ASSY,FR,BLACK | 53001 | 53001-1981-MA | 1 | ||
LEATHER,FRONT SEAT,BLACK | 53003 | 53003-1493-MA | 1 | ||
LEATHER,REAR SEAT,BLACK | 53003A | 53003-1494-MA | 1 | ||
COVER SEAT,M.S.SILVER | 53065B | 53065-1053-474 | 1 | ||
COVER SEAT,L.GREEN | 53065C | 53065-1053-7F | 1 | ||
SEAT-ASSY,RR,W/BAND,BLACK | 53066 | 53066-1059-MA | 1 | ||
NUT,CLAMP,6MM | 92015 | 92015-1531 | 4 | ||
DAMPER | 92075 | 92075-1598 | 2 | ||
COVER SEAT,M.C.BLUE | 53065A | 53065-1053-469 | 1 | CN |
