14091
25023
92009
92009
92069
92069
92069
92069A
92069A
92075
92075
92075
92210
92210
92210

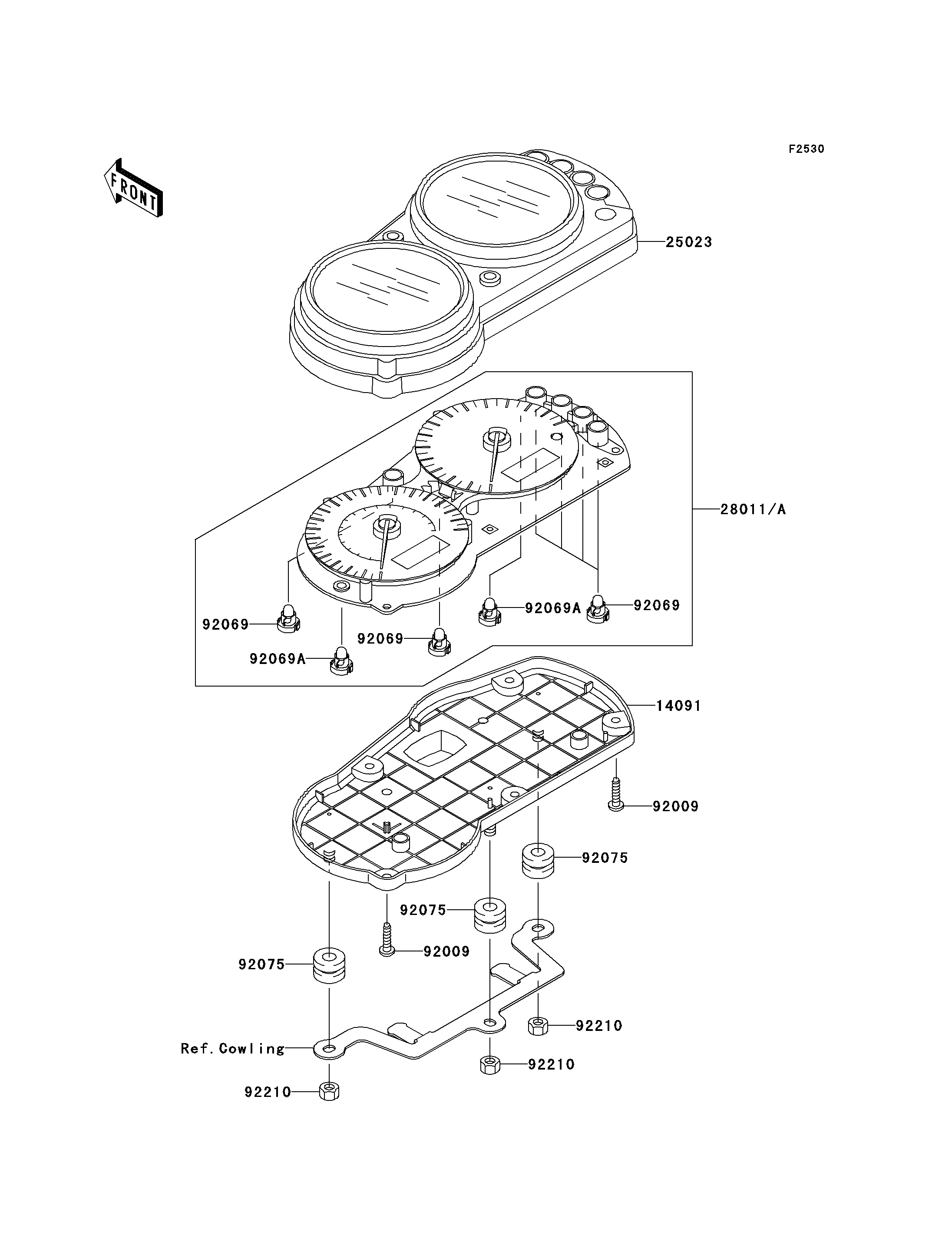

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER HOUSING 14091 14091-1160 1
COVER-METER CASE,UPP 25023 25023-1253 1
SCREW,4X16,BLACK 92009 92009-1158 5
BULB,T3.4,12V1.1W 92069 92069-1110 6
BULB,T3,12V0.7W 92069A 92069-1113 2
DAMPER,METER BRACKET 92075 92075-1435 3
NUT,5MM 92210 92210-1124 3
METER,SPEED&TACHO,MPH 28011 28011-1219 1 CAUS
METER,SPEED&TACHO,KPH 28011A 28011-1220 1 CN
