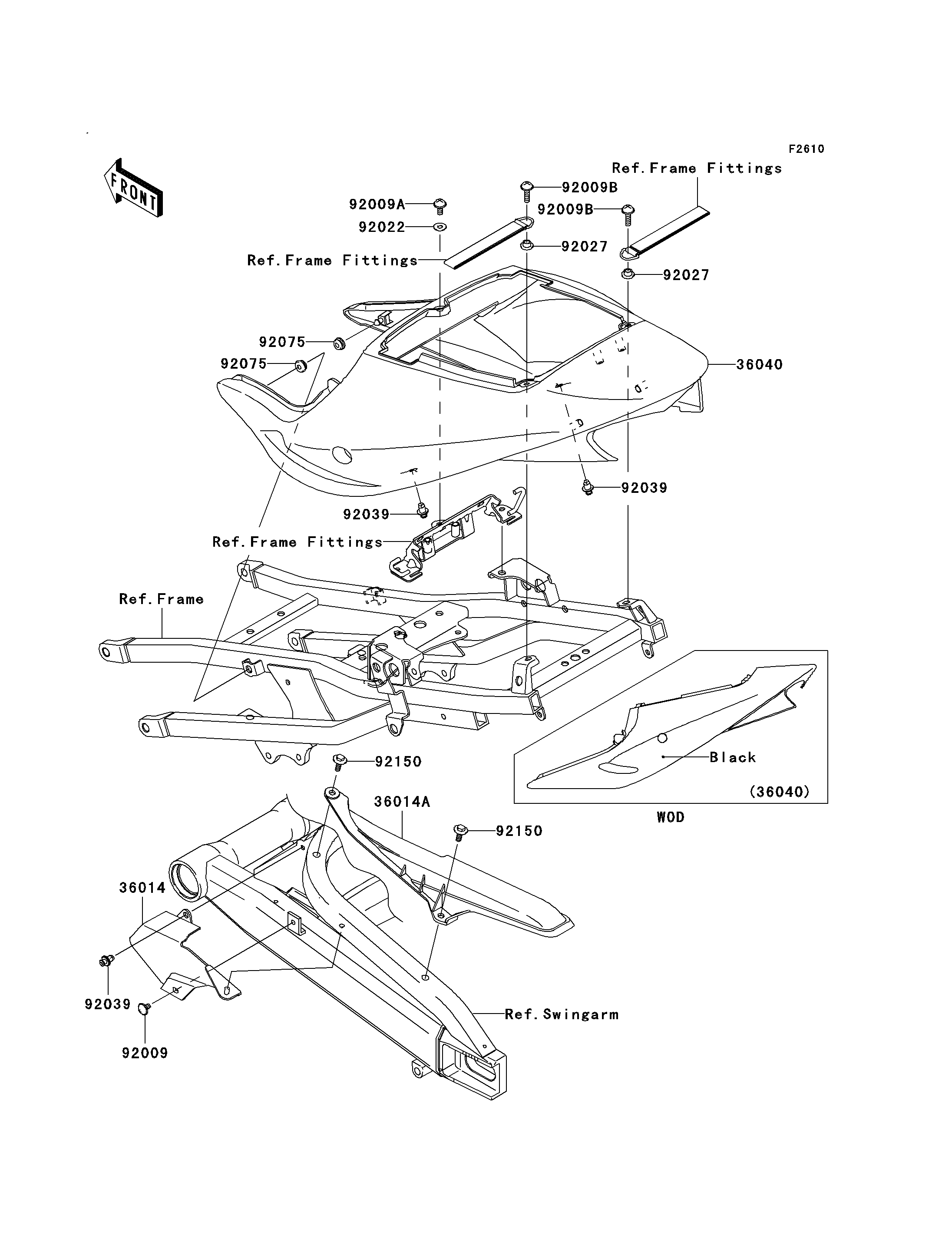

2002 Ninja® ZX™-9R - Side Covers/Chain Cover(ZX900-F1)

DOWNLOAD PDF
SELECT A NEW PART
36014
36014A
36040
92009
92009A
92009B
92009B
92022
92027
92027
92039
92039
92039
92075
92075
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN,FR 36014 36014-1256 1
CASE-CHAIN,RR 36014A 36014-1257 1
COVER-TAIL,BLACK 36040 36040-1061-B5 1
SCREW,6X10 92009 92009-1661 1
SCREW,6X14 92009A 92009-1662 1
SCREW,6X22 92009B 92009-1664 2
WASHER,6.5X16X1 92022 92022-1143 1
COLLAR,L=6.6 92027 92027-1181 2
RIVET 92039 92039-1227 3
DAMPER 92075 92075-1011 2
BOLT,6X16 92150 92150-1198 2
