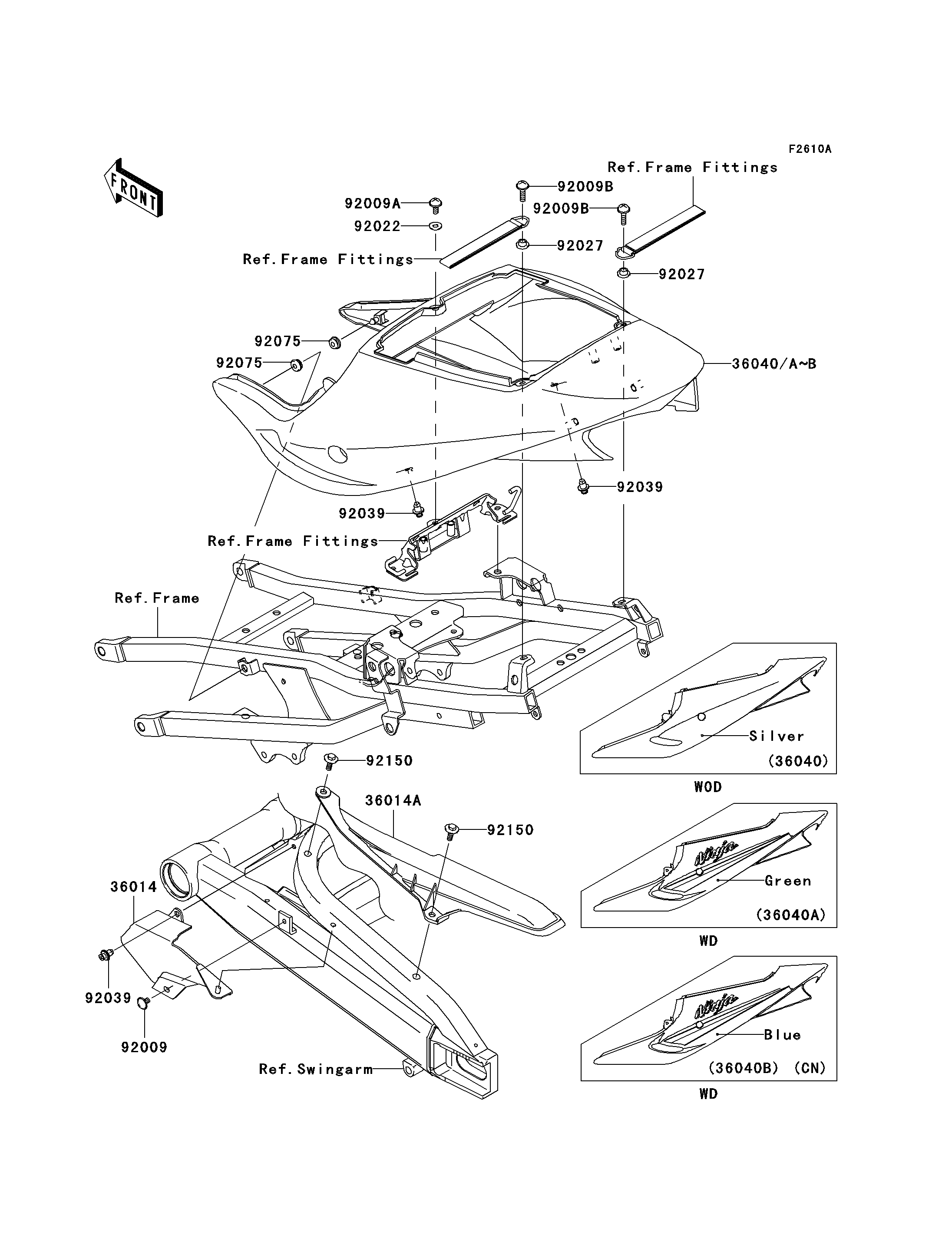

2003 Ninja® ZX™-9R - Side Covers/Chain Cover(ZX900-F2)
36014
36014A
36040
36040A
92009
92009A
92009B
92009B
92022
92027
92027
92039
92039
92039
92075
92075
92150
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-CHAIN,FR | 36014 | 36014-1256 | 1 | ||
| CASE-CHAIN,RR | 36014A | 36014-1257 | 1 | ||
| COVER-TAIL,M.S.SILVER | 36040 | 36040-1061-474 | 1 | ||
| COVER-TAIL,L.GREEN | 36040A | 36040-5041-7F | 1 | ||
| SCREW,6X10 | 92009 | 92009-1661 | 1 | ||
| SCREW,6X14 | 92009A | 92009-1662 | 1 | ||
| SCREW,6X22 | 92009B | 92009-1664 | 2 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 1 | ||
| COLLAR,L=6.6 | 92027 | 92027-1181 | 2 | ||
| RIVET | 92039 | 92039-1227 | 3 | ||
| DAMPER | 92075 | 92075-1011 | 2 | ||
| BOLT,6X16 | 92150 | 92150-1198 | 2 | ||
| COVER-TAIL,M.C.BLUE | 36040B | 36040-5042-469 | 1 | CN |
