Parts Diagrams |
11045
11052
11052A
11052B
11052B
23008
23025
92009
92009A
92009A
92009A
92015
92015
92015
92022
92022
92022
92027
92027
92027
92069
92069
92150
92160
92160
92160
92161

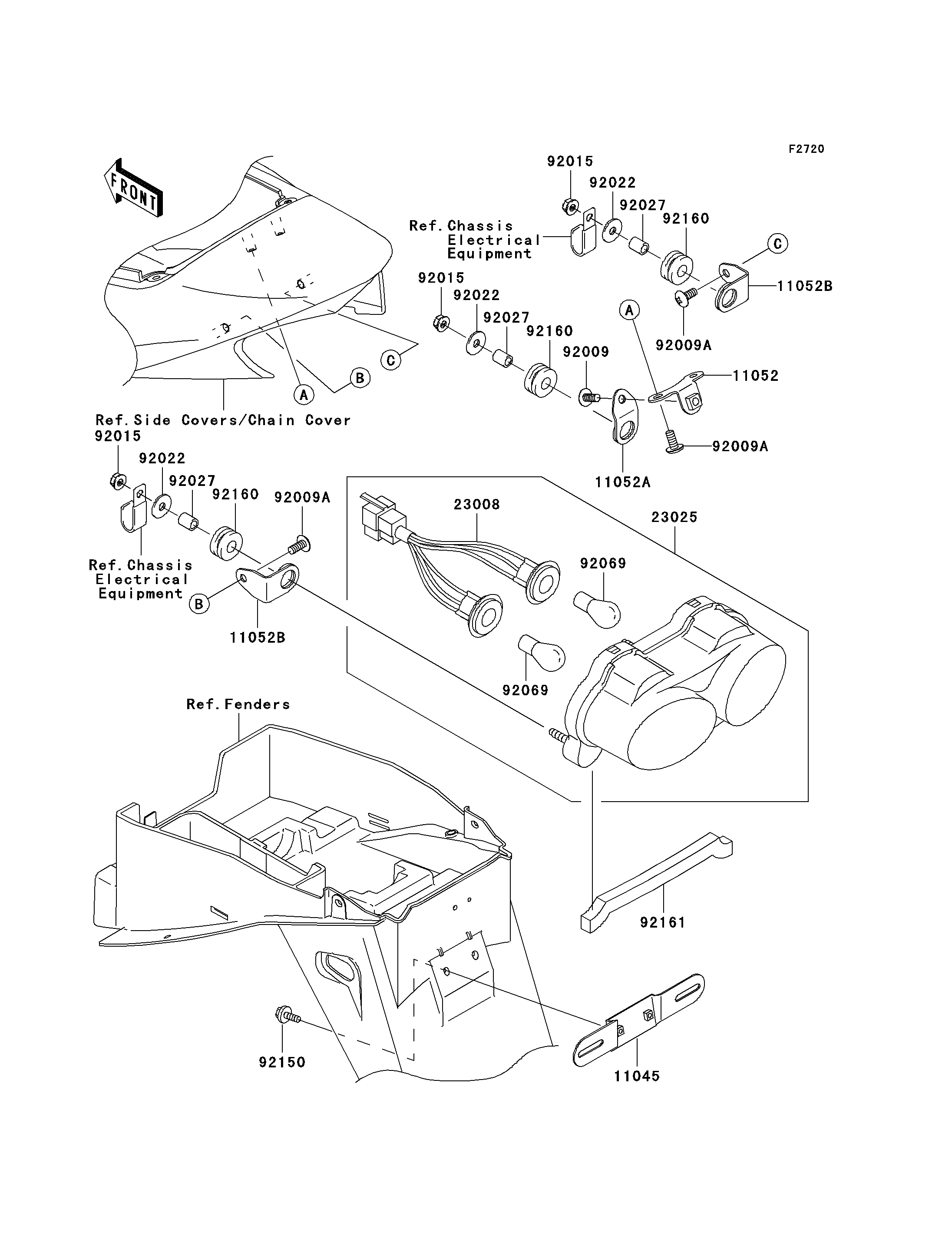

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,LICENSE | 11045 | 11045-1387 | 1 | ||
BRACKET,TAIL COVER,UPP | 11052 | 11052-1577 | 1 | ||
BRACKET,TAIL LAMP,UPP | 11052A | 11052-1578 | 1 | ||
BRACKET,TAIL LAMP,LWR | 11052B | 11052-1630 | 2 | ||
SOCKET-ASSY,TAIL LAMP | 23008 | 23008-1364 | 1 | ||
LAMP-TAIL | 23025 | 23025-1301 | 1 | ||
SCREW,6X14 | 92009 | 92009-1611 | 1 | ||
SCREW,6X8,BLACK | 92009A | 92009-1677 | 4 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 3 | ||
WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 3 | ||
COLLAR,6.8X10X12 | 92027 | 92027-162 | 3 | ||
BULB,12V 21/5W | 92069 | 92069-063 | 2 | ||
BOLT,6X16 | 92150 | 92150-1909 | 2 | ||
DAMPER | 92160 | 92160-1162 | 3 | ||
DAMPER,TAIL LAMP | 92161 | 92161-1287 | 1 |
