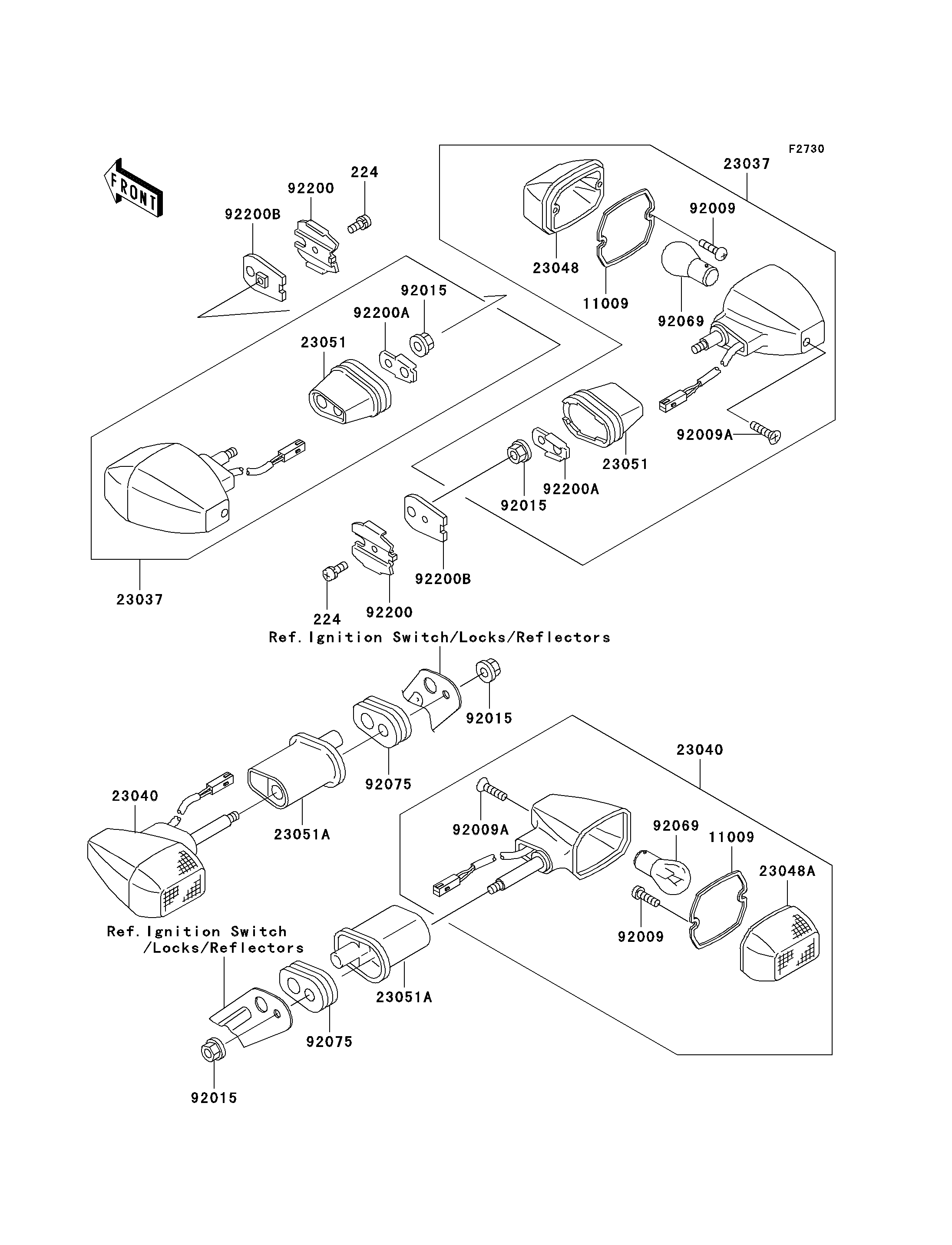

Parts Diagrams |
224
224
11009
11009
23037
23037
23040
23040
23048
23048A
23051
23051
23051A
23051A
92009
92009
92009A
92009A
92015
92015
92015
92015
92069
92069
92075
92075
92200
92200
92200A
92200A
92200B
92200B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-WP-CROS,4X8 | 224 | 224C0408 | 2 | ||
GASKET,SIGNAL LAMP | 11009 | 11009-1402 | 4 | ||
LAMP-ASSY-SIGNAL,FR | 23037 | 23037-1428 | 2 | ||
LAMP-SIGNAL,RR | 23040 | 23040-1295 | 2 | ||
LENS-SIGNAL LAMP | 23048 | 23048-1054 | 2 | ||
LENS-SIGNAL LAMP | 23048A | 23048-1055 | 2 | ||
BRACKET-SIGNAL LAMP,FR | 23051 | 23051-1207 | 2 | ||
BRACKET-SIGNAL LAMP | 23051A | 23051-1248 | 2 | ||
SCREW,TAPPING,3X16 | 92009 | 92009-1115 | 8 | ||
SCREW,TAPPING,4X20 | 92009A | 92009-1304 | 4 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
BULB,12V 21W | 92069 | 4 | (LOCAL PROCUREMENT ITEM) | ||
DAMPER,SIGNAL LAMP | 92075 | 92075-1698 | 2 | ||
WASHER,SIGNAL LAMP | 92200 | 92200-1016 | 2 | ||
WASHER | 92200A | 92200-1021 | 2 | ||
WASHER,SIGNAL LAMP | 92200B | 92200-1520 | 2 |
SCREW-PAN-WP-CROS,4X8 | |
REF # | 224 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET,SIGNAL LAMP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
LAMP-ASSY-SIGNAL,FR | |
REF # | 23037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP-SIGNAL,RR | |
REF # | 23040 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LENS-SIGNAL LAMP | |
REF # | 23048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LENS-SIGNAL LAMP | |
REF # | 23048A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-SIGNAL LAMP,FR | |
REF # | 23051 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET-SIGNAL LAMP | |
REF # | 23051A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,3X16 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X20 | |
REF # | 92009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BULB,12V 21W | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | (LOCAL PROCUREMENT ITEM) |
DAMPER,SIGNAL LAMP | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,SIGNAL LAMP | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,SIGNAL LAMP | |
REF # | 92200B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
