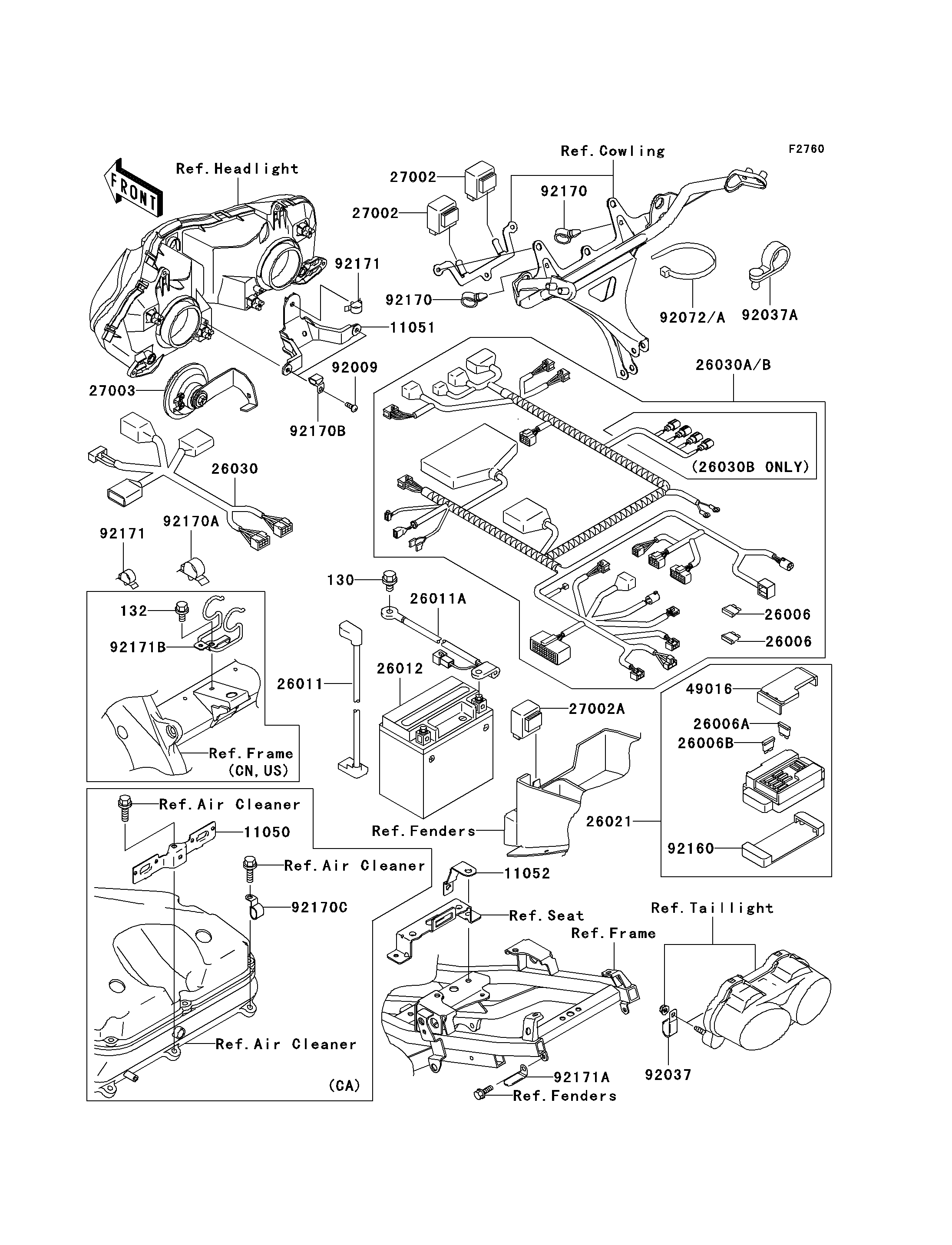

2003 Ninja® ZX™-9R - Chassis Electrical Equipment
130
11051
11052
26006
26006
26006A
26006B
26011
26011A
26012
26021
26030
27002
27002
27002A
27003
49016
92009
92037
92037A
92072
92072A
92160
92170
92170
92170A
92170B
92171
92171
92171A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130V0610 | 1 | ||
BRACKET,HEAD LAMP | 11051 | 11051-1827 | 1 | ||
BRACKET,HEAD LAMP FUSE | 11052 | 11052-1647 | 1 | ||
FUSE,20A-Y | 26006 | 26006-1051 | 2 | ||
FUSE,30A-G | 26006A | 26006-1067 | 1 | ||
FUSE,10A-R | 26006B | 26006-1068 | 8 | ||
WIRE-LEAD,BATTERY(+) | 26011 | 26011-1736 | 1 | ||
WIRE-LEAD,BATTERY(-) | 26011A | 26011-1759 | 1 | ||
BATTERY,YTX9-BS,12V 8AH | 26012 | 26012-1326 | 1 | ||
JUNCTION BOX | 26021 | 26021-1096 | 1 | ||
HARNESS,FR | 26030 | 26030-1779 | 1 | ||
RELAY-ASSY | 27002 | 27002-1086 | 2 | ||
RELAY-ASSY,TURN SIGNAL | 27002A | 27002-1101 | 1 | ||
HORN | 27003 | 27003-1407 | 1 | ||
COVER-SEAL,FUSE | 49016 | 49016-1177 | 1 | ||
SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 2 | ||
CLAMP,WIRING HARNESS,L=60 | 92037 | 92037-1069 | 2 | ||
CLAMP,SPEED,L=80.5 | 92037A | 92037-1903 | 4 | ||
BAND,L=365 | 92072 | 92072-1197 | 2 | ||
BAND,L=140 | 92072A | 92072-1293 | 2 | ||
DAMPER,JUNCTION BOX | 92160 | 92160-1650 | 1 | ||
CLAMP | 92170 | 92170-1067 | 2 | ||
CLAMP,HARNESS | 92170A | 92170-1494 | 1 | ||
CLAMP | 92170B | 92170-1577 | 2 | ||
CLAMP,HARNESS | 92171 | 92171-1269 | 2 | ||
CLAMP | 92171A | 92171-1420 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132J0612 | 1 | CNUS | |
BRACKET,HARNESS COUPLER | 11050 | 11050-1791 | 1 | CA | |
HARNESS,MAIN | 26030A | 26030-1925 | 1 | CNUS | |
HARNESS,MAIN | 26030B | 26030-1926 | 1 | CA | |
CLAMP | 92170C | 92170-1833 | 1 | CA | |
CLAMP,HARNESS | 92171B | 92171-1492 | 1 | CNUS |
