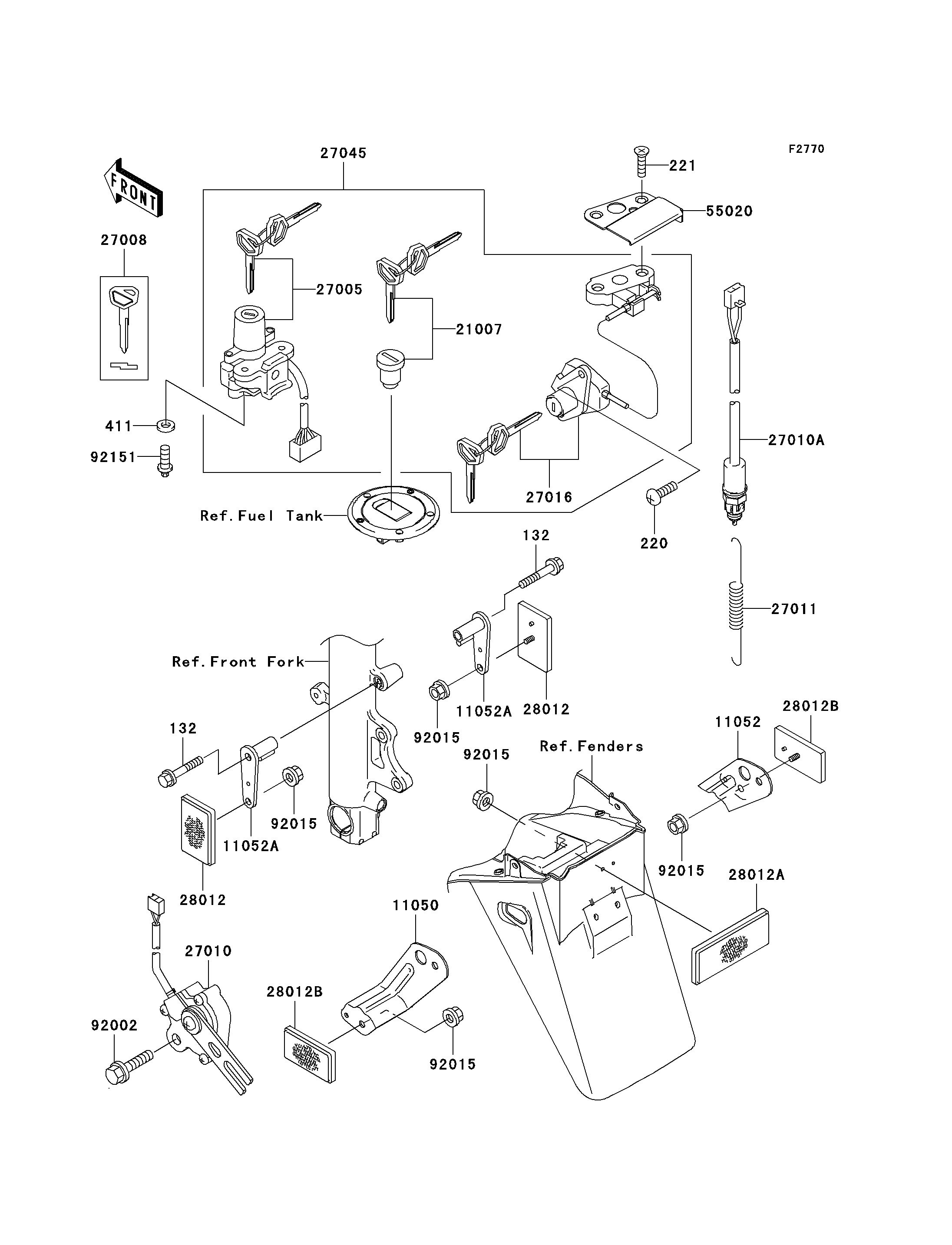

2003 Ninja® ZX™-9R - Ignition Switch/Locks/Reflectors
132
132
220
221
411
11050
11052
11052A
11052A
21007
27005
27008
27010
27010A
27011
27016
27045
28012
28012
28012A
28012B
28012B
55020
92002
92015
92015
92015
92015
92015
92151
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132J0635 | 2 | ||
SCREW-PAN-CROS,6X12 | 220 | 220C0612 | 2 | ||
SCREW-CSK-CROS,6X28 | 221 | 221B0628 | 2 | ||
WASHER-PLAIN,6MM | 411 | 411E0600 | 2 | ||
BRACKET,REFLECTOR,RR,LH | 11050 | 11050-1483 | 1 | ||
BRACKET,REFLECTOR,RR,RH | 11052 | 11052-1555 | 1 | ||
BRACKET,REFLECTOR,FR | 11052A | 11052-1933 | 2 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5035 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-1259 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1170 | 1 | (OPTION) | |
SWITCH,SIDE STAND | 27010 | 27010-1455 | 1 | ||
SWITCH,REAR BRAKE | 27010A | 27010-1479 | 1 | ||
SPRING,BRAKE LAMP SWITCH | 27011 | 27011-017 | 1 | ||
LOCK-ASSY,SEAT | 27016 | 27016-5284 | 1 | ||
SWITCH-ASSY | 27045 | 27045-5156 | 1 | ||
REFLECTOR-REFLEX | 28012 | 28012-1003 | 2 | ||
REFLECTOR-REFLEX | 28012A | 28012-1077 | 1 | ||
REFLECTOR-REFLEX | 28012B | 28012-1088 | 2 | ||
GUARD,SEAT LOCK | 55020 | 55020-1483 | 1 | ||
BOLT,6X25 | 92002 | 92002-1582 | 1 | ||
NUT,FLANGED,5MM | 92015 | 92015-1259 | 5 | ||
BOLT,TORX,6X16 | 92151 | 92151-1911 | 2 |
