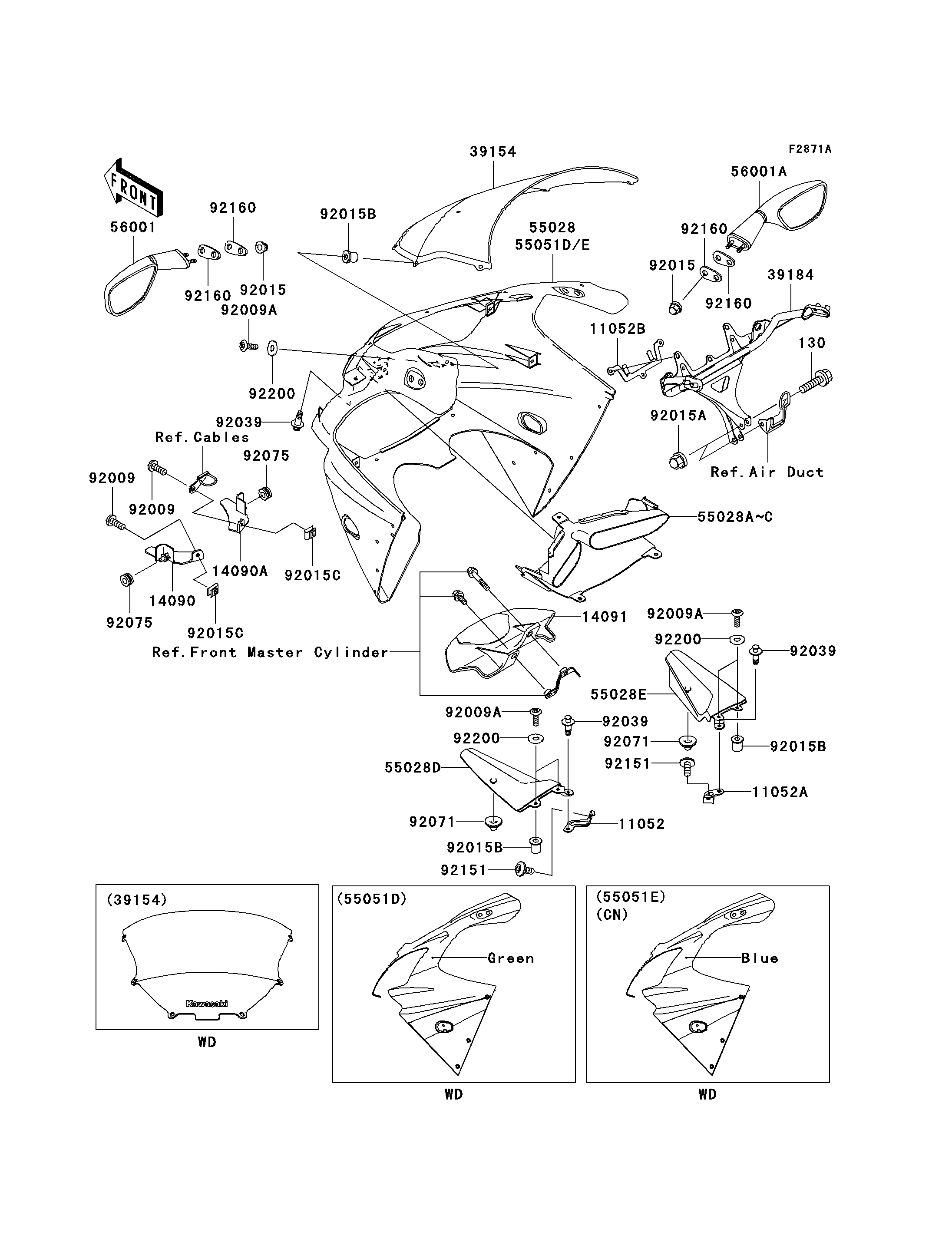

2003 Ninja® ZX™-9R - Cowling(ZX900-F2)
130
11052
11052A
11052B
14090
14090A
14091
39154
39184
55028
55028A
55028C
55028D
55028E
55051D
56001
56001A
92009
92009
92009A
92009A
92009A
92015
92015
92015A
92015B
92015B
92015B
92015C
92015C
92039
92039
92039
92071
92071
92075
92075
92151
92151
92160
92160
92160
92160
92200
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,8X30 | 130 | 130J0830 | 2 | ||
BRACKET,UPP COWLING,LH | 11052 | 11052-1644 | 1 | ||
BRACKET,UPP COWLING,RH | 11052A | 11052-1645 | 1 | ||
BRACKET,HEAD LAMP RELAY | 11052B | 11052-1822 | 1 | ||
COVER,RADIATOR,LH | 14090 | 14090-1950 | 1 | ||
COVER,RADIATOR,RH | 14090A | 14090-1951 | 1 | ||
COVER,UNDER BRACKET | 14091 | 14091-1271 | 1 | ||
WINDSHIELD | 39154 | 39154-5016 | 1 | ||
BRACKET-ASSY,UPP COWLING | 39184 | 39184-1088 | 1 | ||
COWLING,UPP,M.S.SILVER | 55028 | 55028-1386-474 | 1 | ||
COWLING,DUCT,M.F.C.GRAY | 55028A | 55028-1387-3L | 1 | ||
COWLING,DUCT,L.GREEN | 55028C | 55028-1387-7F | 1 | ||
COWLING,INNER,LH | 55028D | 55028-1388 | 1 | ||
COWLING,INNER,RH | 55028E | 55028-1389 | 1 | ||
COWLING-ASSY,UPP,L.GREEN | 55051D | 55051-5324-7F | 1 | ||
MIRROR-ASSY,LH | 56001 | 56001-1483 | 1 | ||
MIRROR-ASSY,RH | 56001A | 56001-1484 | 1 | ||
SCREW,TAPPING,6X16 | 92009 | 92009-1436 | 2 | ||
SCREW,5X16 | 92009A | 92009-1909 | 10 | ||
NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 4 | ||
NUT,CAP,8MM,BLACK | 92015A | 92015-1174 | 2 | ||
NUT,WELL,5MM | 92015B | 92015-1757 | 10 | ||
NUT,6MM | 92015C | 92015-1758 | 2 | ||
RIVET | 92039 | 92039-1227 | 3 | ||
GROMMET | 92071 | 92071-1222 | 2 | ||
DAMPER | 92075 | 92075-1912 | 2 | ||
BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
DAMPER,MIRROR | 92160 | 92160-1089 | 4 | ||
WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 10 | ||
COWLING,DUCT,M.C.BLUE | 55028B | 55028-1387-469 | 1 | CN | |
COWLING-ASSY,UPP,M.C.BLUE | 55051E | 55051-5345-469 | 1 | CN |
